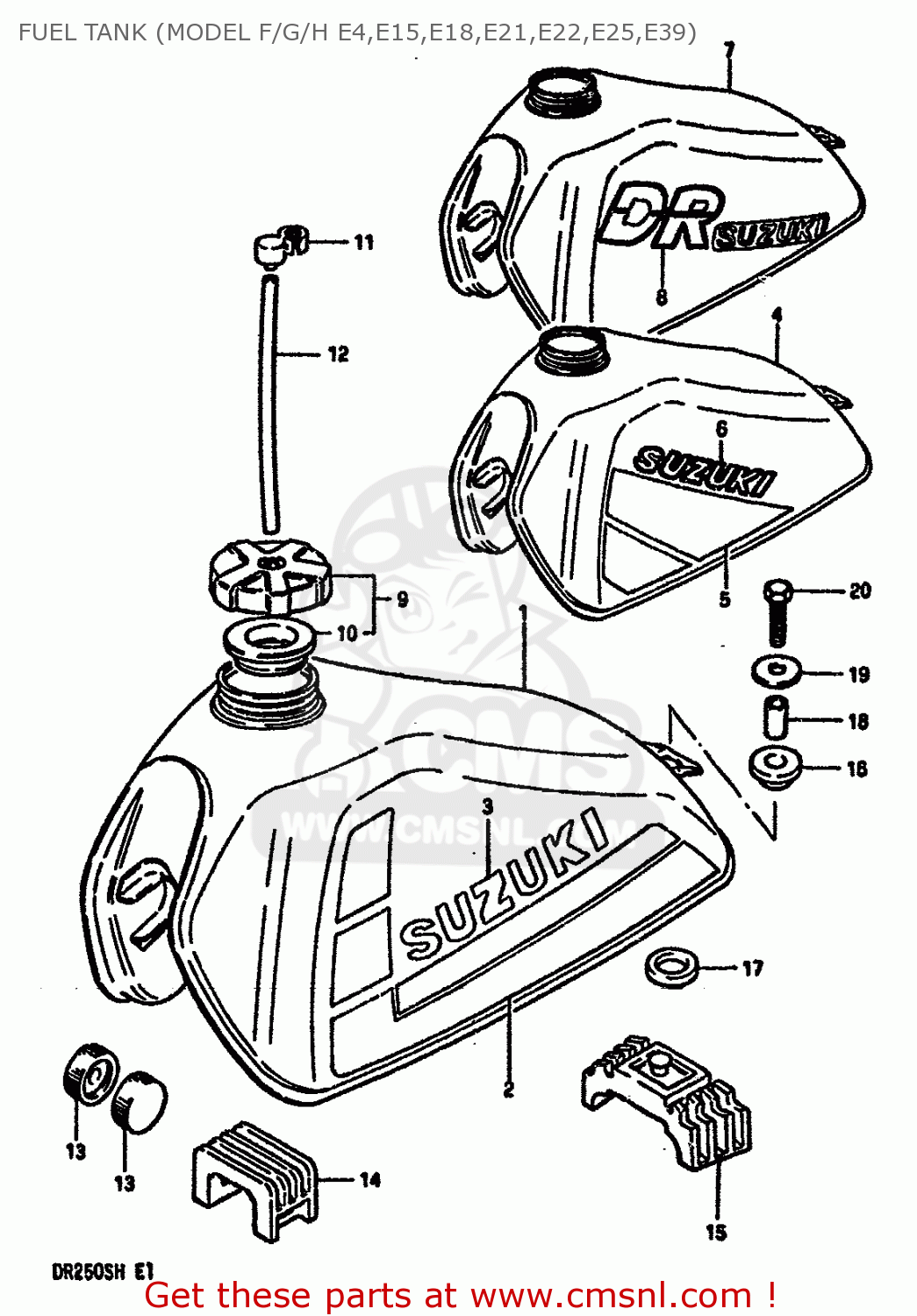

FUEL TANK (MODEL F/G/H E4,E15,E18,E21,E22,E25,E39)

ref

part #

description

quantity

1-1

491003826021C
ref: 1-1
MODEL F

TANK ASSY,FUEL (BLACK)

€ 520.00

1-2

491003828021C
ref: 1-2
MODEL F E22

TANK ASSY,FUEL (BLACK)

€ 425.00

1-3

491003826014C
ref: 1-3
MODEL F

TANK ASSY,FUEL (RED)

€ 520.00

1-4

491003828014C
ref: 1-4
MODEL F E22

TANK ASSY,FUEL (RED)

€ 425.00

1-5

491003826019F
ref: 1-5
MODEL F

TANK ASSY,FUEL (BLUE)

€ 520.00

1-6

491003828019F
ref: 1-6
MODEL F E22

TANK ASSY,FUEL (BLUE)

€ 425.00

1-7

4910038260163
ref: 1-7
MODEL F

TANK ASSEMBLY,FUEL

€ 520.00

1-8

4910038280163
ref: 1-8
MODEL F E22

TANK ASSY,FUEL (YELLOW)

€ 425.00

1-9

491003826010V
ref: 1-9
MODEL F

TANK ASSY,FUEL (WHITE)

€ 520.00

1-10

491003828010V
ref: 1-10
MODEL FE22

TANK ASSY,FUEL (WHITE)

€ 425.00

2-1

68110382607FV
ref: 2-1
MODEL F,FOR 21C

TAPE SET,FUEL TANK

€ 0.00

2-2

68110382607FW
ref: 2-2
MODEL F,FOR 14C

TAPE SET,FUEL TANK

€ 0.00

2-3

681103826080Y
ref: 2-3
MODEL F,FOR 19F

TAPE SET,FUEL TANK

€ 0.00

2-4

681103826067H
ref: 2-4
MODEL F,FOR 163,10V

TAPE SET,FUEL TANK

€ 0.00

3-1

6811143400064
ref: 3-1
MODEL F,FOR 21C,14C,

EMBLEM

€ 10.00

3-2

6811143400019
ref: 3-2
MODEL F,FOR 163,10V

EMBLEM

€ 9.50

4-1

491003892021C
ref: 4-1
MODEL G

TANK ASSY,FUEL (BLACK)

€ 0.00

4-2

491003894021C
ref: 4-2
MODEL G E22

TANK ASSY,FUEL (BLACK)

€ 425.00

4-3

491003892014C
ref: 4-3
MODEL G

TANK ASSY,FUEL (RED)

€ 520.00

4-4

491003894014C
ref: 4-4
MODEL G E22

TANK ASSY,FUEL (RED)

€ 0.00

4-5

491003892019F
ref: 4-5
MODEL G

TANK ASSY,FUEL (BLUE)

€ 425.00

4-6

491003894019F
ref: 4-6
MODEL G E22

TANK ASSY,FUEL (BLUE)

€ 0.00

4-7

4910038920163
ref: 4-7
MODEL G

TANK ASSY,FUEL (YELLOW)

€ 0.00

4-8

4910038940163
ref: 4-8
MODEL G E22

TANK ASSY,FUEL (YELLOW)

€ 0.00

4-9

491003892010V
ref: 4-9
MODEL G

TANK ASSY,FUEL (WHITE)

€ 520.00

4-10

491003894010V
ref: 4-10
MODEL G E22

TANK ASSY,FUEL (WHITE)

€ 0.00

5-1

68110389108AH
ref: 5-1
MODEL G,FOR 21C,14C,

TAPE SET,FUEL TANK

€ 0.00

5-2

68110389107CL
ref: 5-2
MODEL G,FOR 163,10V

TAPE SET,FUEL TANK

€ 0.00

6-1

6811132410064
ref: 6-1
MODEL G,FOR 21C,14C,

EMBLEM,FUEL TANK

€ 7.00

6-2

6811132410019
ref: 6-2
MODEL G,FOR 163,10V

EMBLEM,FUEL TANK

€ 10.50

7-1

491003895014L
ref: 7-1
MODEL H

TANK ASSY,FUEL (WHITE)

€ 425.00

7-2

491003897014L
ref: 7-2
MODEL H E22

TANK ASSY,FUEL (WHITE)

€ 425.00

7-3

491003895021C
ref: 7-3
MODEL H

TANK ASSY,FUEL (BLACK)

€ 425.00

7-4

491003897021C
ref: 7-4
MODEL H E22

TANK ASSY,FUEL (BLACK)

€ 425.00

7-5

491003895034S
ref: 7-5
MODEL H

TANK ASSY,FUEL (BLUE)

€ 425.00

7-6

491003897034S
ref: 7-6
MODEL H E22

TANK ASSY,FUEL (BLUE)

€ 425.00

8-1

6811042A107MS
ref: 8-1
MODEL H,FOR 14L

TAPE SET,FUEL TANK

€ 0.00

8-2

6811042A1090J
ref: 8-2
MODEL H,FOR 34S

TAPE SET,FUEL TANK

€ 0.00

8-3

6811042A1090K
ref: 8-3
MODEL H,FOR 21C

TAPE SET,FIEL TANK

€ 0.00

9

4420005812
ref: 9

CAP SET,FUEL TANK

€ 19.50

10

4424805210
ref: 10

GASKET (NAS)

€ 4.50

11

4448632101
ref: 11

CLAMP,FUEL TANK BREATHER HOSE

€ 3.50

12

0934305129
ref: 12

HOSE

€ 13.00

13

0932910016
ref: 13

CUSHION

€ 3.00

14

4454138200
ref: 14

CUSHION,TANK UPR FR

€ 6.00

15

4454238200
ref: 15

CUSHION,FUEL TANK,REAR

€ 11.50

16

0932012010
ref: 16

CUSHION

€ 3.00

17

0932012023
ref: 17

CUSHION

€ 2.50

18

0918008067
ref: 18

SPACER(8.5X12X19)

€ 2.50

19

0916008002
ref: 19

WASHER (8.5X29X1.6)

€ 2.00

20

0110708307
ref: 20

BOLT

€ 2.50

all assemblies
