CARBURETOR

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

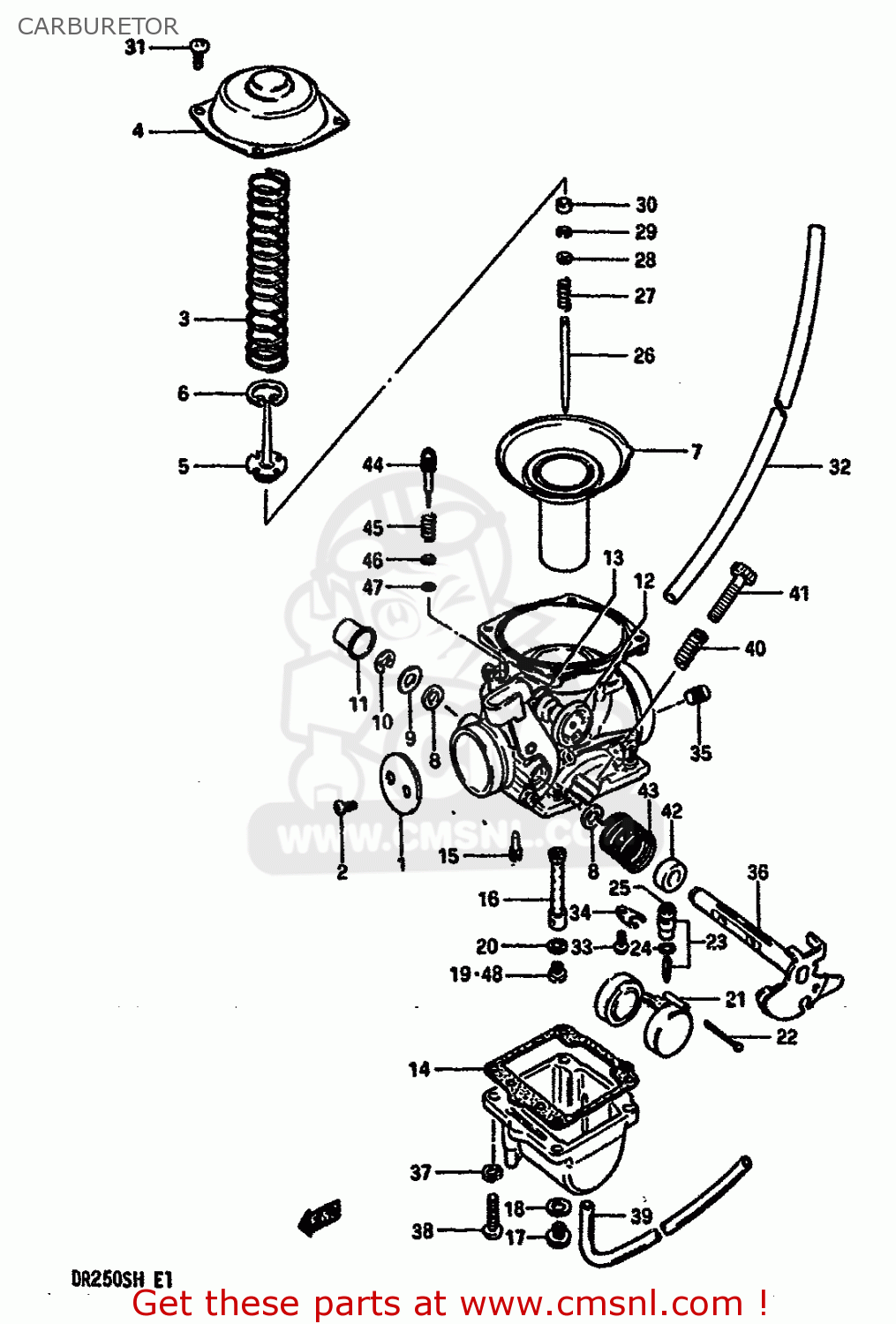

Carburetor diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

CARBURETOR DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
CARBURETOR DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
CARBURETOR DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
prices are in EUR
ref
part #
description
quantity
0
1320038220
ref: 0
CARBURETOR ASSY
€ 492.50
1
1355138310
ref: 1
THROTTLE VALVE (100)
€ 0.00
2
1360444080
ref: 2
SCREW
1360444080
€ 3.50
3
1350337100
ref: 3
SPRING
1350337100
€ 9.00
4
1350238300
ref: 4
COVER
€ 22.00
5
1338944030
ref: 5
HOLDER,GUIDE
1338944030
€ 10.50
6
1358144030
ref: 6
E RING
1358144030
€ 6.50
7
1350038310
ref: 7
DIAPHRAGM ASSY
1350038310
€ 168.00
8
1365151010
ref: 8
SEAL
1365151010
€ 4.00
9
1355747070
ref: 9
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
10
1361744080
ref: 10
E RING
1361744080
€ 3.50
11
1357847070
ref: 11
CAP
1357847070
€ 5.50
12
1341038210
ref: 12
STARTER VALVE
€ 25.00
13
1327847090
ref: 13
O RING
1327847090
€ 2.00
14
1325137100
ref: 14
GASKET,FLOAT CHAMBER (NAS)
1325137100
€ 8.50
15
0949242010
ref: 15
JET,PILOT(42.5)
0949242010
€ 8.50
16
0949400363
ref: 16
JET, NEEDLE (P-1)
0949400363
€ 36.50
17
1324744080
ref: 17
PLUG,DRAIN
1324744080
€ 9.50
18
1324644080
ref: 18
GASKET (NAS)
1324644080
€ 3.50
19
0949125010
ref: 19
JET,MAIN(125)
0949125010
€ 8.50
20
1333244080
ref: 20
WASHER,NEEDLE NOZZLE
€ 2.50
21
1325037100
ref: 21
FLOAT
1325037100
€ 33.50
22
1325492311
ref: 22
PIN,FLOAT
1325492311
€ 2.00
23
1337037400
ref: 23
VALVE ASSEMBLY,NEEDLE
1337037400
€ 66.50
24
6626399050
ref: 24
O RING
6626399050
€ 6.00
25
1337665010
ref: 25
FILTER
€ 6.50
26
1338338310
ref: 26
NEEDLE,JET
1338338310
€ 12.00
27
1338832400
ref: 27
SPRING
€ 0.00
28
1338244030
ref: 28
WASHER
1338244030
€ 3.50
29
1339410010
ref: 29
CLIP
1339410010
€ 4.50
30
1338738210
ref: 30
RING
€ 7.50
31
0211205106
ref: 31
SCREW 5X10
€ 2.00
32
1368422A00
ref: 32
L:550-350
HOSE
€ 13.00
33
0211204066
ref: 33
SCREW
€ 2.00
34
1337339110
ref: 34
PLATE
1337339110
€ 6.50
35
0949328005
ref: 35
JET,AIR(140)
0949328005
€ 10.00
36
1355038300
ref: 36
SHAFT ASSEMBLY,THROTTLE
€ 0.00
37
0832121056
ref: 37
LOCK WASHER
0832121056
€ 3.00
38
0211205166
ref: 38
SCREW
€ 2.00
39
1368337420
ref: 39
L:510-450
HOSE
€ 5.50
40
1327144220
ref: 40
SPRING,THROTTLE ADJUST
€ 3.50
41
1326737100
ref: 41
SCREW,THROTTLE STOP
€ 9.00
42
1357445110
ref: 42
RING
€ 3.50
43
1357338300
ref: 43
SPRING,THROTTLE SHAFT
€ 0.00
44
1327947080
ref: 44
2.0
SCREW,PILOT AIR
1327947080
€ 11.50
45
1326847070
ref: 45
SPRING
1326847070
€ 5.00
46
1327744080
ref: 46
GASKET
€ 2.00
47
1327844080
ref: 47
O-RING
€ 4.00
48-1
0949124016
ref: 48-1
OPT
JET,MAIN(120)
0949124016
€ 11.50
48-2
0949124013
ref: 48-2
OPT
JET,MAIN(122.5)
0949124013
€ 7.00
48-3
0949125011
ref: 48-3
OPT
JET,MAIN(127.5)
0949125011
€ 10.00
48-4
0949126011
ref: 48-4
OPT
JET,MAIN(130)
0949126011
€ 11.50
48-5
0949126012
ref: 48-5
OPT
JET,MAIN(132.5)
0949126012
€ 11.50
