CRANKSHAFT

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

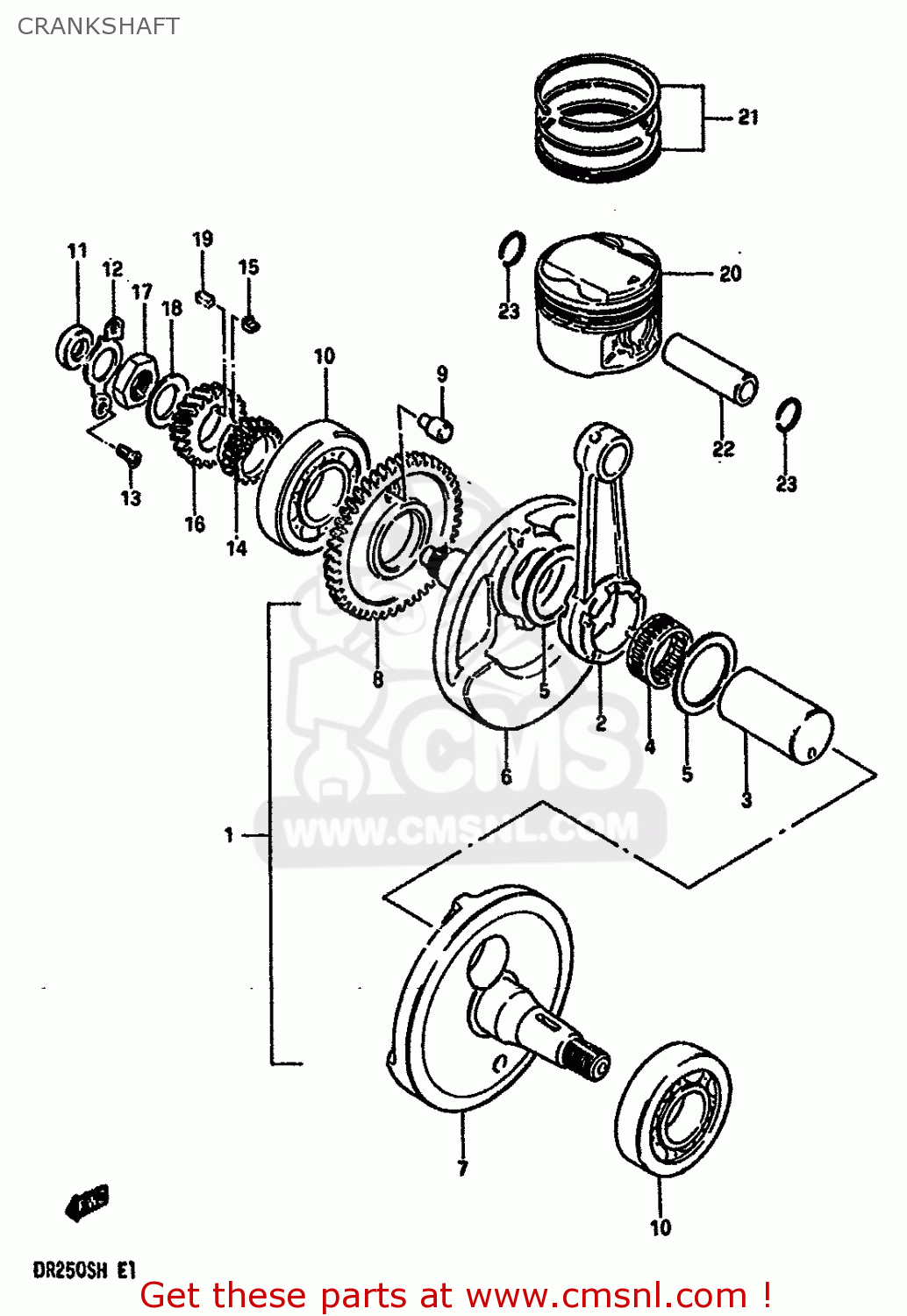

Crankshaft diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

CRANKSHAFT DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
CRANKSHAFT DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
CRANKSHAFT DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
prices are in EUR
ref
part #
description
quantity
1
1220038201
ref: 1
CRANKSHAFT ASSEMBLY
€ 561.00
2
1216138201
ref: 2
ROD,CONNECTING
1216138201
€ 129.50
3-1
1221138201
ref: 3-1
~E.NO.116058
PIN,CRANK
€ 38.00
3-2
1221138202
ref: 3-2
E.NO.116059~
PIN,CRANK
€ 38.00
4-1
0926331004
ref: 4-1
~E.NO.116058
BEARING(31X39X21)
0926331004
€ 53.00
4-2
0926331007
ref: 4-2
E.NO.116059~
BEARING
€ 53.00
5
0916031002
ref: 5
WASHER(31X48.5X1)
0916031002
€ 7.00
6
1222138200
ref: 6
CRANKSHAFT,R
1222138200
€ 196.00
7
1226138200
ref: 7
CRANKSHAFT,LEFT
€ 148.00
8
1266138202
ref: 8
GEAR,CRANK BALANCER DRIVE
€ 128.00
9
0920912006
ref: 9
PIN
0920912006
€ 6.50
10
0926230077
ref: 10
BEARING(30X72X19)
0926230077
€ 47.50
11
0928214001
ref: 11
SEAL,OIL(14X26X6)
0928214001
€ 38.00
12
1254838200
ref: 12
RETAINER,CRANKSHAFT BEARING,R
€ 4.50
13
0212205108
ref: 13
SCREW
€ 1.00
14
1273138200
ref: 14
SPROCKET,CAM CHAIN DRIVE(NT:21
1273138200
€ 36.00
15
1274932400
ref: 15
KEY,SPROCKET
1274932400
€ 13.50
16
2111138200
ref: 16
GEAR,PRIMARY DRIVE NO.21
€ 62.00
17
0914020008
ref: 17
NUT (20MM)
0914020008
€ 4.00
18
0916420003
ref: 18
WASHER
0916420003
€ 2.50
19
0942107002
ref: 19
KEY
0942107002
€ 4.00
20-1
1211138201
ref: 20-1
PISTON (72.00MM)
1211138201
€ 76.00
20-2
1211138201050
ref: 20-2
OPT
PISTON
€ 125.00
20-3
1211138201100
ref: 20-3
OPT
PISTON
1211138201100
€ 101.50
20-4
1211138211
ref: 20-4
E4
PISTON (STD)
€ 0.00
20-5
1211138211050
ref: 20-5
E4,OPT
PISTON (OS:0.5)
1211138211050
€ 100.50
20-6
1211138211100
ref: 20-6
E4,OPT
PISTON (OS:1.0)
€ 0.00
21-1
1214049221
ref: 21-1
RING SET,PISTON
1214049221
€ 67.00
21-2
1214049221050
ref: 21-2
OPT
RING SET,PISTON (OS:0.5)
1214049221050
€ 59.00
21-3
1214049221100
ref: 21-3
OPT
RING SET,PISTON (OS:1.0)
1214049221100
€ 38.50
21-4
1214038240
ref: 21-4
E4
RING SET, PISTON (STD)
€ 0.00
21-5
1214038240050
ref: 21-5
E4,OPT
RING SET, PISTON (OS:0.5)
€ 0.00
21-6
1214038240100
ref: 21-6
E4,OPT
RING SET, PISTON (OS:1.0)
€ 0.00
22
1215115501A
ref: 22
PIN,PISTON
1215115501A
€ 15.00
23
0938118002A
ref: 23
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
