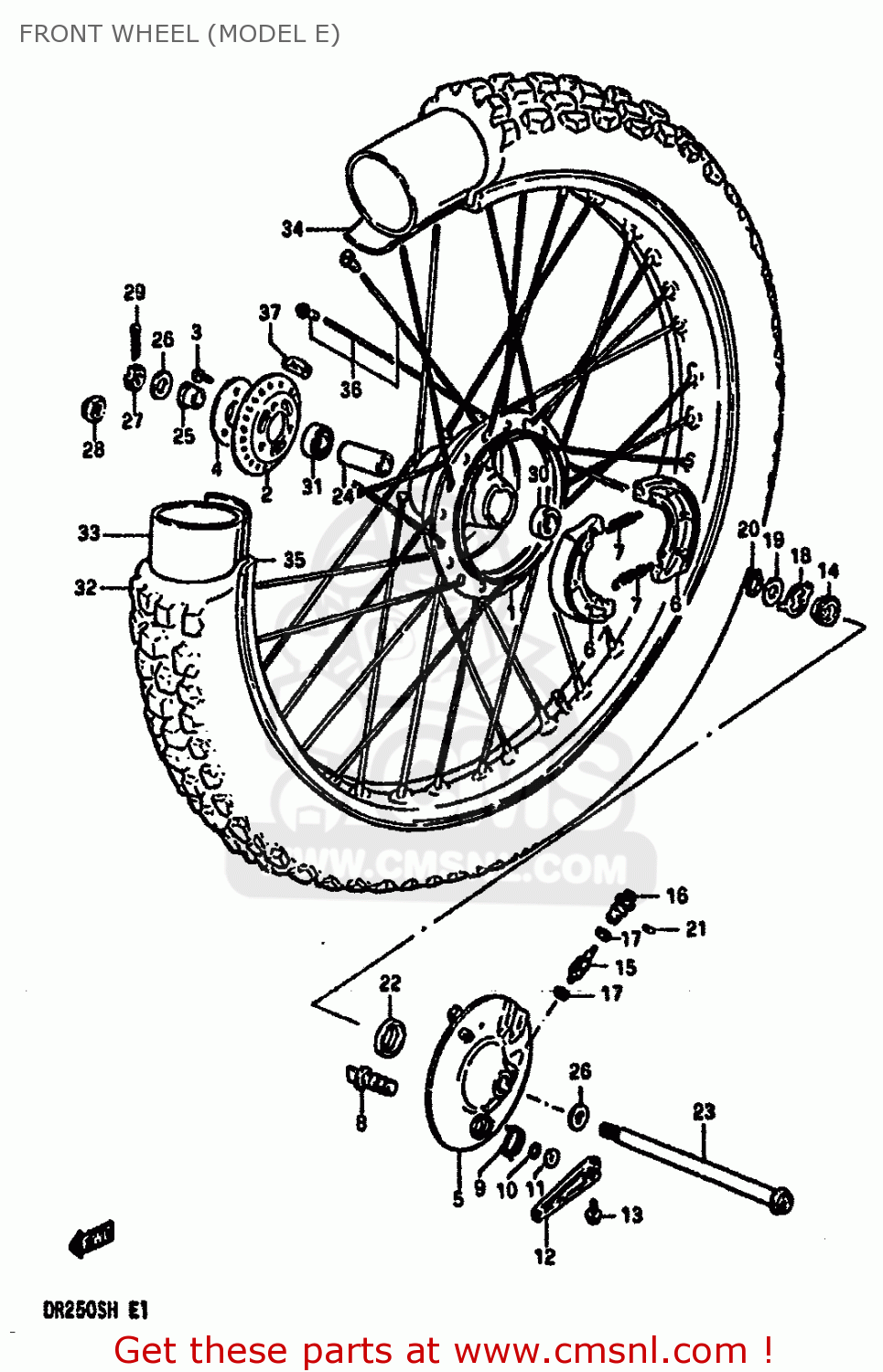

FRONT WHEEL (MODEL E)

ref

part #

description

quantity

1

5411038201
ref: 1

DRUM,FRONT HUB

€ 211.00

2

5411238200
ref: 2

FLANGE,FR HUB,R

€ 15.50

3

0151706164
ref: 3

BOLT

€ 2.50

4

5415138200
ref: 4

PLATE,FRONT HUB BEARING

€ 5.00

5

5421038200
ref: 5

PANEL,FRONT HUB

€ 0.00

6

6441040301
ref: 6

SHOE,BRAKE (NAS)

€ 75.50

7

0944307001
ref: 7

SPRING(L:34)

€ 2.50

8

5444138200
ref: 8

CAM,BRAKE

€ 10.00

9

0944832007
ref: 9

SPRING

€ 8.00

10

0928014003
ref: 10

O-RING (D:2.4 ID:13.8)

€ 3.50

11

0916014001
ref: 11

WASHER (14.5X22X1.6)

€ 2.50

12

5445132400
ref: 12

LEVER,FRONT BRAKE CAM

€ 48.00

13

0151706258
ref: 13

BOLT

€ 2.50

14

5461128402
ref: 14

GEAR,SPEEDOMETER

€ 26.00

15

5462128401
ref: 15

PINION,SPEEDOMETER

€ 15.50

16

5463201001
ref: 16

BUSH,METER GEAR OUTER

€ 9.00

17

0916005001
ref: 17

WASHER (5.1X9X0.4)

€ 2.00

18

5466129300
ref: 18

DRIVER,SPEEDOMETER GEAR

€ 4.00

19

0916018002
ref: 19

WASHER(18.5X24X1)

€ 2.00

20

0833111189
ref: 20

CIRCLIP

€ 2.00

21

0913403101
ref: 21

SCREW

€ 1.50

22

0928543001
ref: 22

OIL SEAL (43X58X7)

€ 10.00

23

5471138200
ref: 23

AXLE,REAR

€ 24.00

24

0918012041
ref: 24

SPACER (12.6X19X52)

€ 4.50

25

5474141108
ref: 25

SPACER (12.2X19X18.5)

€ 0.00

26

0832211128
ref: 26

WASHER

€ 2.00

27

0831441128
ref: 27

NUT, REAR AXLE

€ 2.50

28

0831921128
ref: 28
E22

NUT 12MM

€ 4.00

29

0411130308
ref: 29

COTTER PIN

€ 1.50

30

0814362017
ref: 30

BEARING

€ 11.50

31

0812362017
ref: 31

BEARING, RH

€ 15.00

32-1

5510037410
ref: 32-1
IRC

TIRE 3.00-21

€ 0.00

32-2

5510038230
ref: 32-2
BS

TIRE,FRONT

€ 163.00

33

5520016510
ref: 33

TUBE

€ 32.50

34

5526116510
ref: 34

PROTECTOR,WHEEL,INNER

€ 5.00

35

5531138230
ref: 35

RIM,FRONT WHEEL (1.60X21)(

€ 216.50

36

5532038200
ref: 36

SPOKE SET,FRONT

€ 42.00

37

5541130000
ref: 37

BALANCER,WHEEL (50G)

€ 4.50
