AIR CLEANER

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

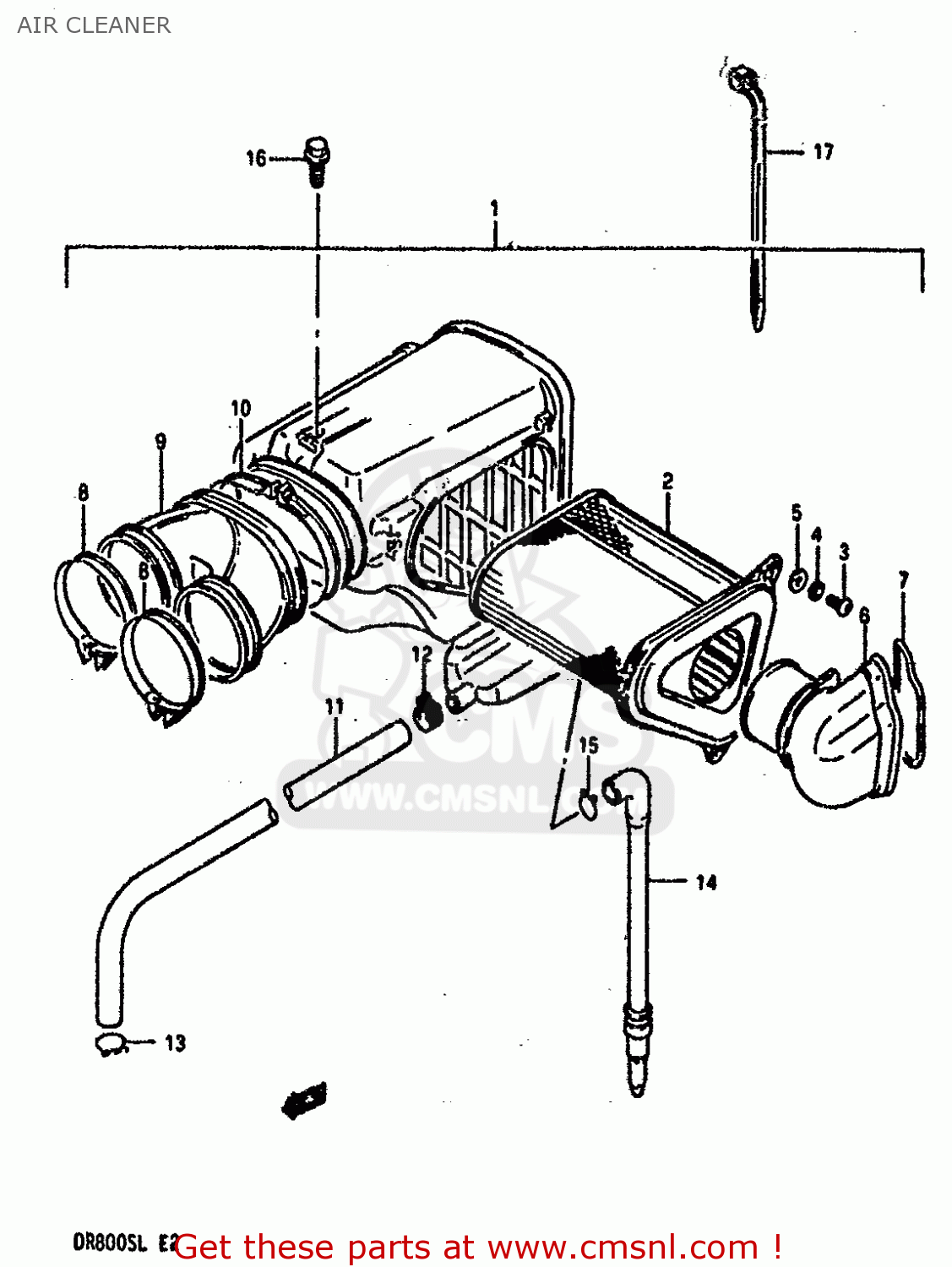

Air cleaner diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1370044B01
ref: 1

CLEANER ASSY,AIR

€ 409.00

1378044B00
ref: 2

FILTER ASSY

€ 42.00

0211205128
ref: 3

SCREW

€ 2.50

0832121057
ref: 4

LOCK WASHER

€ 2.00

0832221057
ref: 5

WASHER

€ 2.50

1389144B01
ref: 6

TUBE,INLET

€ 26.00

1389444B00
ref: 7

RING

€ 5.50

0940266208
ref: 8

CLAMP

€ 6.50

1388144B00
ref: 9

TUBE,AIR CLEANER OUTLET

€ 37.00

1382644B00
ref: 10

CLAMP

€ 7.50

1385100650
ref: 11

TUBE,BREATHER

€ 30.00

1382443400
ref: 12

CLIP

€ 2.00

0940114301
ref: 13

CLIP

€ 2.00

1387021217
ref: 14

TUBE,DRAIN

€ 16.50

1382400A00
ref: 15

CLIP

€ 2.50

0151706167
ref: 16

BOLT 6X16

€ 1.50

0940718402
ref: 17

CLAMP(L:165)

€ 2.50

AIR CLEANER

all assemblies
