FRAME COVER

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

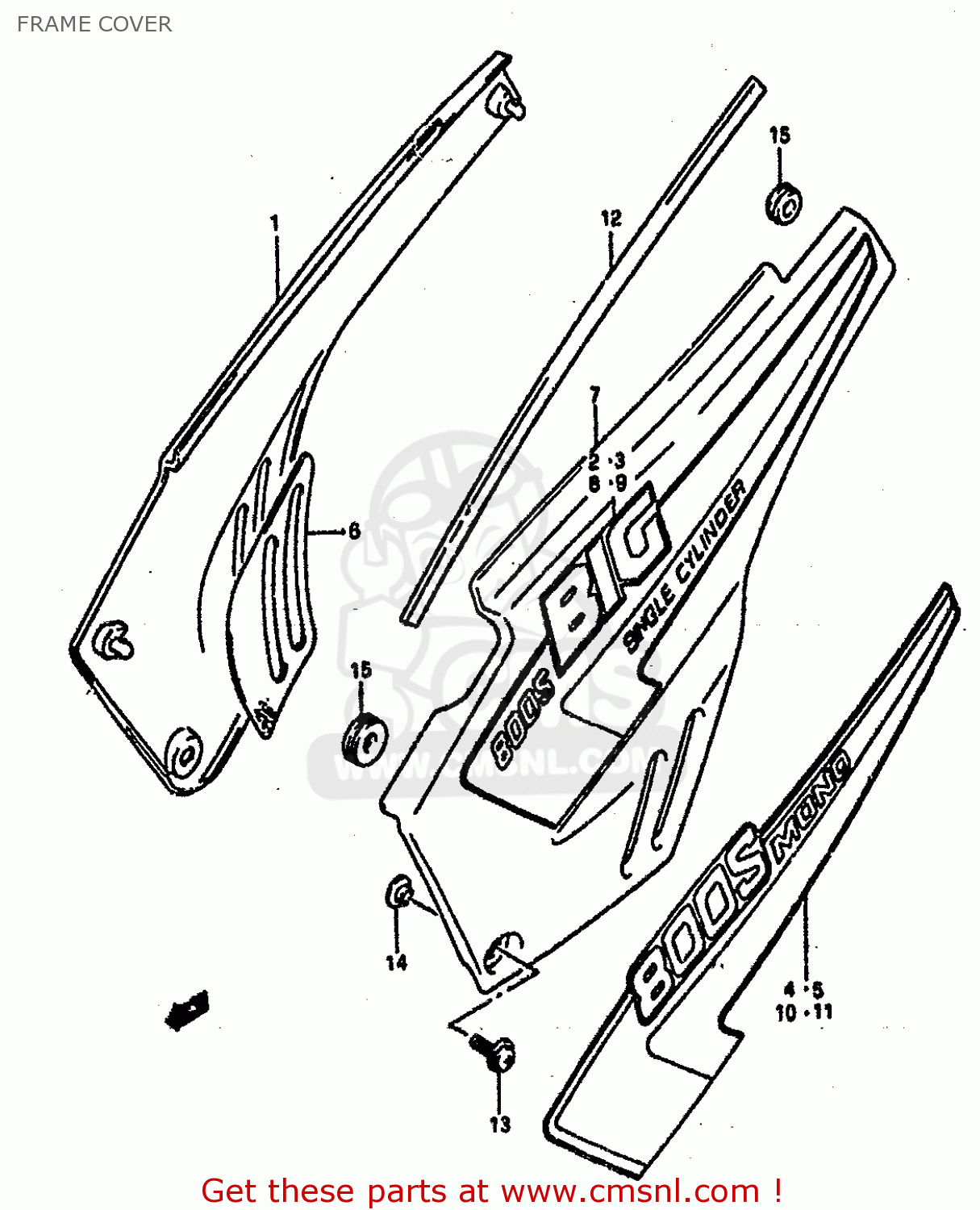

Frame cover diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

4711144B1028V
ref: 1-1

COVER,FRAME,R(RED)

€ 96.50

1-2

4711144B100NF
ref: 1-2

COVER,FRAME R.

€ 98.00

6813544B103US
ref: 2
FOR 28V

TAPE,RH

€ 18.00

6813544B303UR
ref: 3
FOR 0NF

TAPE,RH

€ 18.00

6813544B003US
ref: 4
E4,FOR 28V

TAPE,RH

€ 0.00

6813544B203UR
ref: 5
E4,FOR 0NF

TAPE,RH

€ 0.00

4716644B00
ref: 6

HEAT SHIELD,RH

€ 12.00

7-1

4721144B1028V
ref: 7-1

COVER,FRAME,L(RED)

€ 98.00

7-2

4721144B100NF
ref: 7-2

COVER,FRAME LH (BLUE)

€ 88.50

6814544B103US
ref: 8
FOR 28V

TAPE,LH

€ 19.00

6814544B303UR
ref: 9
FOR 0NF

TAPE,LH

€ 18.00

6814544B003US
ref: 10
E4,FOR 28V

TAPE,LH

€ 0.00

6814544B203UR
ref: 11
E4,FOR 0NF

TAPE,LH

€ 0.00

4726144B01
ref: 12

DUST SEAL,FRAME COVER

€ 4.00

0913606081
ref: 13

SCREW(6X20)

€ 3.00

0916906041
ref: 14

WASHER

€ 2.00

0932008018
ref: 15

CUSHION

€ 4.00

0932008013
ref: 16

CUSHION

€ 4.00
