CARBURETOR

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

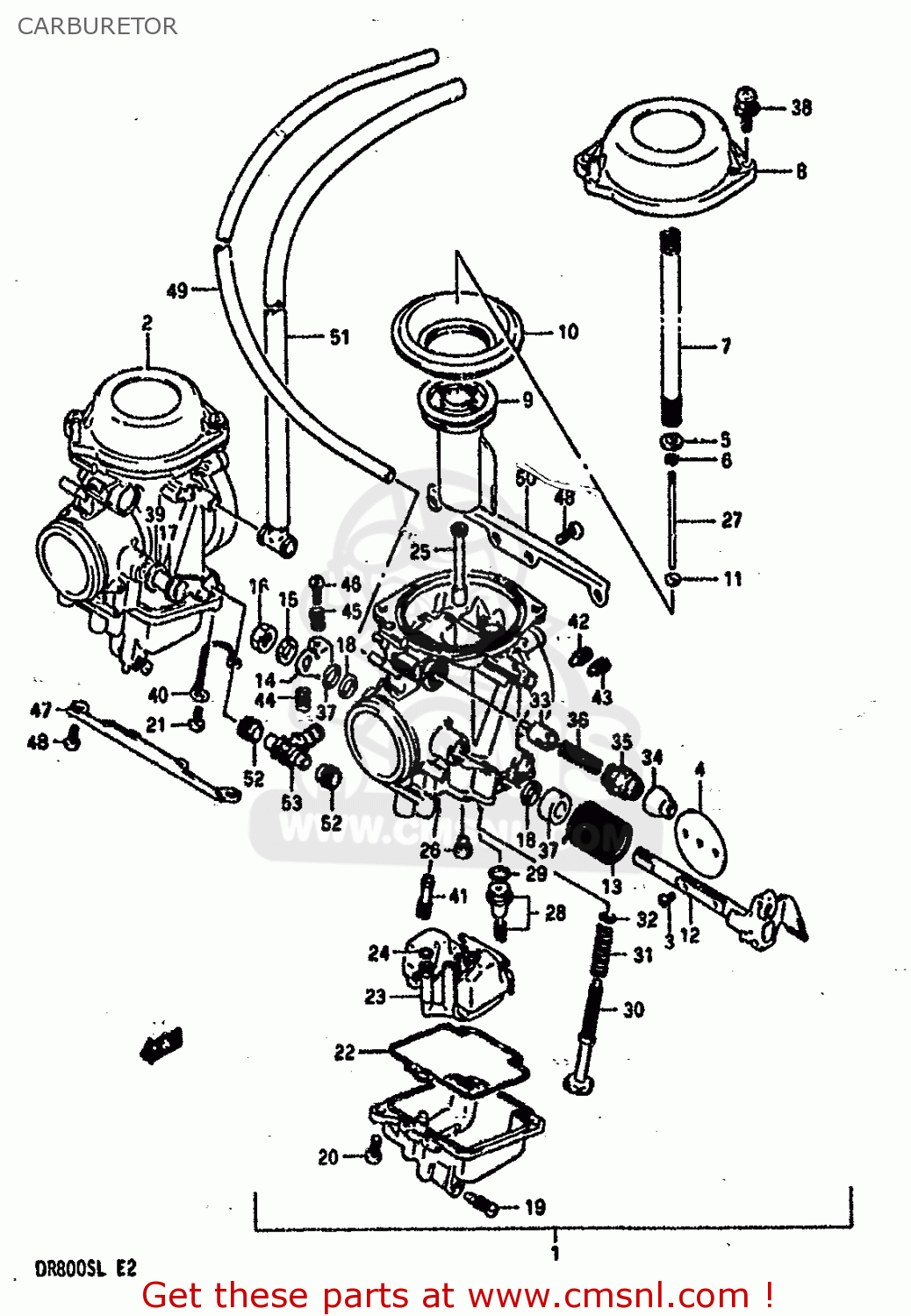

Carburetor diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CARBURETOR DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CARBURETOR DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CARBURETOR DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1320145B50
ref: 1-1
CARBURETOR ASSY,LH
€ 374.00
1-2
1320145B00
ref: 1-2
E16,E17
CARBURETOR ASSY,LH
1320145B00
€ 349.00
1-3
1320145B30
ref: 1-3
E18
CARBURETOR ASSY,LH
1320145B30
€ 328.00
1-4
1320145B10
ref: 1-4
E22
CARBURETOR ASSY,LH
€ 0.00
1-5
1320145B40
ref: 1-5
E24,E39
CARBURETOR ASSY,LH
€ 0.00
1-6
1320145B20
ref: 1-6
DR800SUL E22
CARBURETOR ASSY,LH
€ 0.00
2-1
1320245B50
ref: 2-1
CARBURETOR ASSY,RH
€ 317.00
2-2
1320245B00
ref: 2-2
E16,E17
CARBURETOR ASSY,RH
€ 317.00
2-3
1320245B30
ref: 2-3
E18
CARBURETOR ASSY,RH
€ 0.00
2-4
1320245B10
ref: 2-4
E22
CARBURETOR ASSY,RH
€ 317.00
2-5
1320245B40
ref: 2-5
E24,E39
CARBURETOR ASSY,RH
€ 0.00
2-6
1320245B20
ref: 2-6
DR800SUL E22
CARBURETOR ASSY,RH
€ 0.00
3
1360442A00
ref: 3
SCREW
€ 3.50
4
1355145B00
ref: 4
VALVE,THROTTLE (115)
€ 21.00
5
1338242A00
ref: 5
RING
1338242A00
€ 3.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7-1
1341744B00
ref: 7-1
SPRING
1341744B00
€ 6.00
7-2
1341745B10
ref: 7-2
E22
SPRING
€ 0.00
8-1
1350245B00
ref: 8-1
COVER,DIAPHRAGM
1350245B00
€ 36.00
8-2
1350245B10
ref: 8-2
E18,E24,E39
COVER,DIAPHRAGM
1350245B10
€ 29.00
8-3
1350245B20
ref: 8-3
DR800SUL E22
COVER, DIAPHRAGM
1350245B20
€ 26.50
9
1355144B10
ref: 9
VALVE PISTON
1355144B10
€ 74.50
10
1350744B00
ref: 10
DIAPHRAGM
1350744B00
€ 29.00
11
1338747010
ref: 11
RING
1338747010
€ 7.50
12
1355044B00
ref: 12
LH
SHAFT ASSY
€ 0.00
13
1357344B00
ref: 13
LH
SPRING
€ 7.00
14
1355344B00
ref: 14
LH
LEVER,THROTTLE
€ 7.00
15
0832131086
ref: 15
LH
WASHER,LOCK,8.
€ 2.50
16
0831022086
ref: 16
LH
NUT
€ 1.50
17
1355044B10
ref: 17
RH
SHAFT ASSEMBLY
€ 27.00
18
1355644B00
ref: 18
LH:2,RH:1
SEAL
1355644B00
€ 3.50
19
1324702340
ref: 19
PLUG,DRAIN
1324702340
€ 5.50
20
1360205128
ref: 20
LH:2,RH:1
SCREW
€ 2.50
21
1360205148
ref: 21
RH
SCREW
€ 3.50
22
1325844B00
ref: 22
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
23
1324044B00
ref: 23
FLOAT ASSY
1324044B00
€ 53.50
24
1337446710
ref: 24
O RING
1337446710
€ 4.50
25-1
0949400672
ref: 25-1
JET,NEEDLE (0-5)
€ 34.00
25-2
0949400673
ref: 25-2
E18
JET,NEEDLE(O-5)
0949400673
€ 34.00
26
0949123017
ref: 26
JET,MAIN(117.5)
0949123017
€ 11.00
27-1
1338344B00
ref: 27-1
NEEDLE,JET
1338344B00
€ 15.00
27-2
1338345B00
ref: 27-2
E18
NEEDLE,JET (5E69-3)
€ 0.00
27-3
1338344B00
ref: 27-3
DR800SUL E22
NEEDLE,JET
1338344B00
€ 15.00
28
1337044B00
ref: 28
VALVE ASSEMBLY,NEEDLE
1337044B00
€ 46.50
29
1337444080
ref: 29
O-RING,NEEDLE VALVE
1337444080
€ 6.00
30
1326728A00
ref: 30
LH
SCREW
€ 22.50
31
1326843410
ref: 31
LH
SPRING
€ 6.50
32
1342738300
ref: 32
LH
WASHER
1342738300
€ 1.50
33
1341145B00
ref: 33
LH
PLUNGER ASSY
€ 11.50
34
1368104010
ref: 34
LH
CAP
1368104010
€ 3.00
35
1341843410
ref: 35
LH
HOLDER,GUIDE
1341843410
€ 6.50
36
1341745B00
ref: 36
LH
SPRING
1341745B00
€ 3.00
37
1357428A00
ref: 37
LH
RING
1357428A00
€ 4.50
38
1360234390
ref: 38
SCREW
1360234390
€ 2.50
39
1355747070
ref: 39
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
40
1369244B00
ref: 40
RH
CLIP
€ 4.00
41-1
0949240014
ref: 41-1
JET(40)
0949240014
€ 8.50
41-2
0949235010
ref: 41-2
E18
JET,PILOT(37.5)
0949235010
€ 10.50
42
0949322005
ref: 42
JET,AIR(1.1)
0949322005
€ 12.00
43
0949360004
ref: 43
JET,AIR(0.6)
0949360004
€ 11.00
44
1326896110
ref: 44
SPRING,THROTTLE SCREW
€ 4.50
45
1327144B00
ref: 45
SPRING
1327144B00
€ 4.00
46
1326744B00
ref: 46
SCREW
1326744B00
€ 3.50
47
1362844B00
ref: 47
PLATE
€ 9.50
48
1360205128
ref: 48
SCREW
€ 2.50
49
1368300A40
ref: 49
L:1000-400
HOSE
€ 13.00
50
1362844B10
ref: 50
PLATE
€ 10.00
51
1368444B00
ref: 51
L:425-275
HOSE
€ 20.50
52
1367344B00
ref: 52
SEAL
1367344B00
€ 6.00
53
1368544B00
ref: 53
NIPPLE
1368544B00
€ 10.00
