CRANKCASE

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

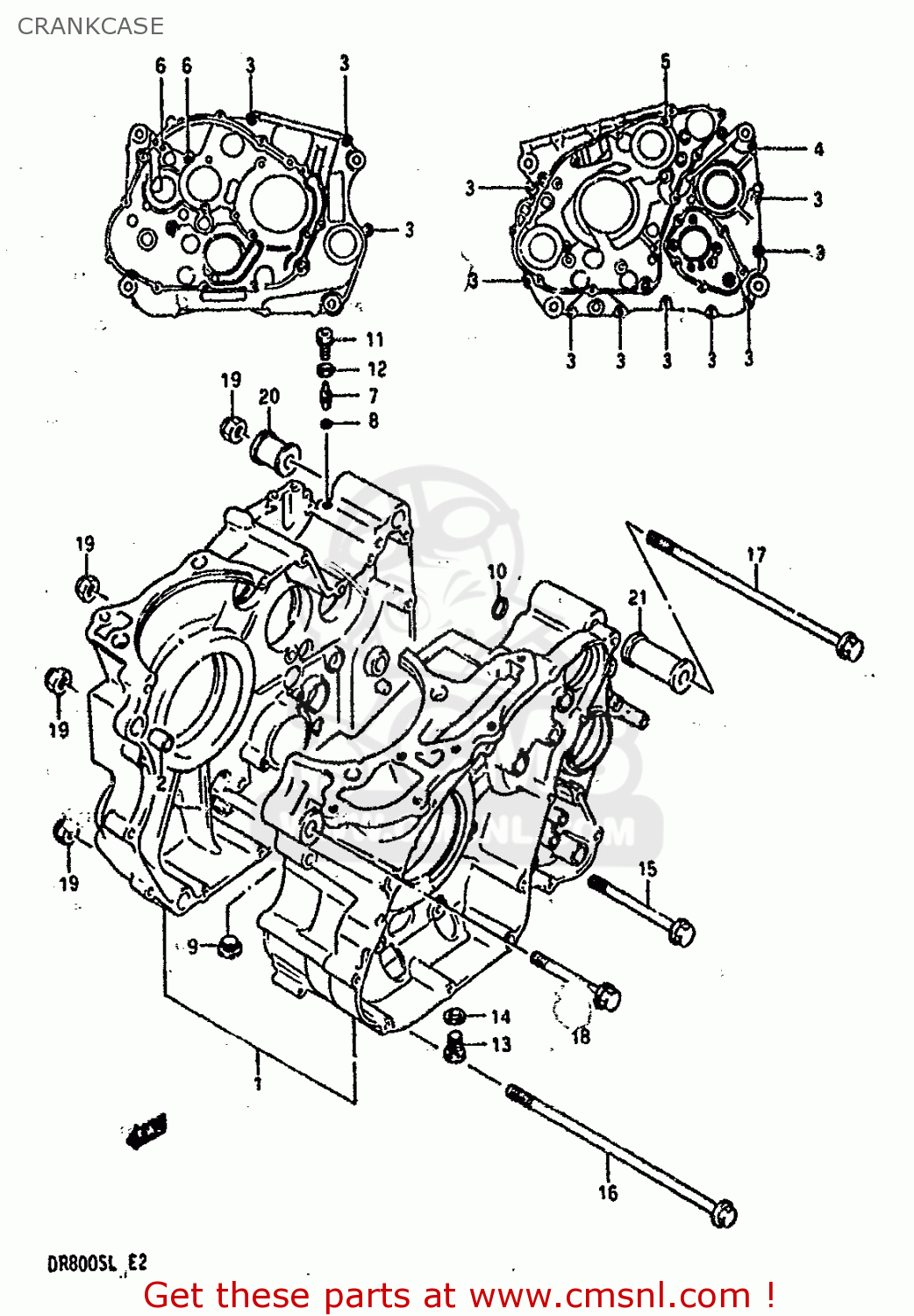

Crankcase diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1130144820
ref: 1

CRANKCASE SET

€ 1,112.50

0920013001
ref: 2

PIN

€ 0.00

0154706404
ref: 3

BOLT 6X40

€ 3.00

0154706605
ref: 4

BOLT (6X60)

€ 3.50

0154706654
ref: 5

BOLT

€ 2.00

0154706755
ref: 6

BOLT (6X75)

€ 2.00

0949324009
ref: 7

JET(12)

€ 10.50

0928004004
ref: 8

O RING(D:1.2,ID:4)

€ 2.00

0924816004
ref: 9

PLUG

€ 4.00

0928011004
ref: 10

O RING(D:1.9,ID:11)

€ 2.50

0711008128
ref: 11

BOLT,LOWER

€ 1.50

0916808008
ref: 12

GASKET 8.2X14X1 (NAS)

€ 1.00

0110712208
ref: 13

BOLT

€ 3.00

0916812002
ref: 14

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

0910310065
ref: 15

BOLT

€ 5.50

0910310190
ref: 16

BOLT (10X215)

€ 9.50

0910310099
ref: 17

BOLT

€ 17.00

0910310051
ref: 18

BOLT 10X70

€ 4.00

0915910044
ref: 19

NUT (10MM)

€ 4.00

1161017600
ref: 20

SPACER,ENGINE MOUNT

€ 9.00

1161014A10
ref: 21

SPACER,ENG MTG,R(L:60)

€ 8.50
