STARTING MOTOR

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

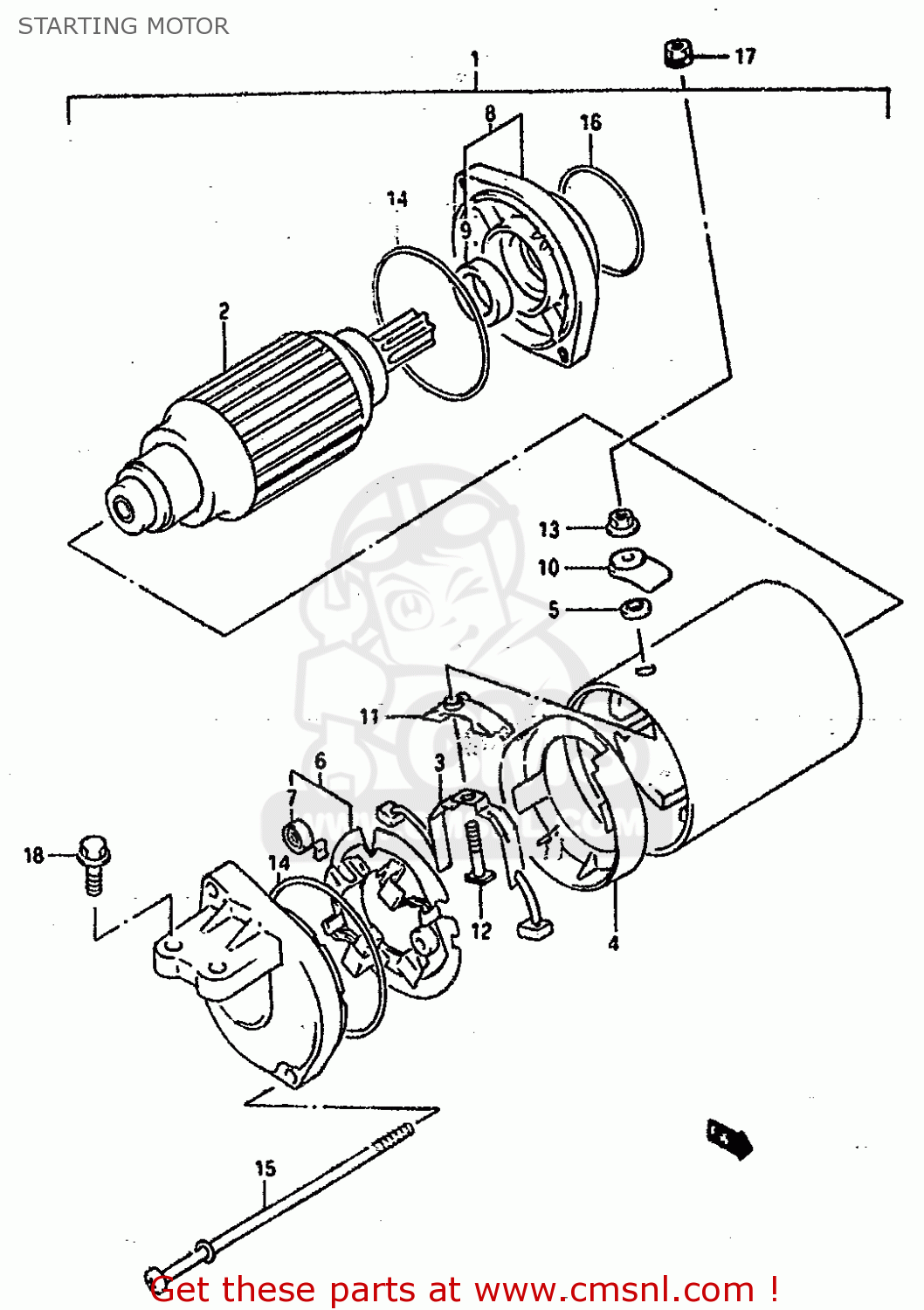

Starting motor diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3110044B00H17
ref: 1

MOTOR,STARTING

€ 735.00

3131024B01H17
ref: 2

ARMATURE

€ 173.00

3113148B00
ref: 3

TERMINAL SET,BRUSH

€ 35.00

3117338A00
ref: 4

INSULATOR

€ 14.00

3114348B00
ref: 5

GASKET (NAS)

€ 6.50

3113248B00
ref: 6

HOLDER SET,BRUSH(-)

€ 51.00

3113565010
ref: 7

SPRING

€ 3.00

3115044B00
ref: 8

BRACKET SET

€ 98.50

3115349210
ref: 9

SEAL,OIL

€ 15.00

3117248B10
ref: 10

BUSHING

€ 3.00

3117248B20
ref: 11

BUSHING

€ 8.50

3113048B00
ref: 12

BOLT

€ 4.50

3114548B00
ref: 13

NUT

€ 1.50

3126444110
ref: 14

O RING

€ 8.00

3128138A00
ref: 15

BOLT

€ 5.00

3115624B00
ref: 16

O-RING (D:2.0)

€ 9.50

0836135066
ref: 17

NUT

€ 2.00

0154706207
ref: 18

BOLT

€ 2.50
