WIRING HARNESS

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

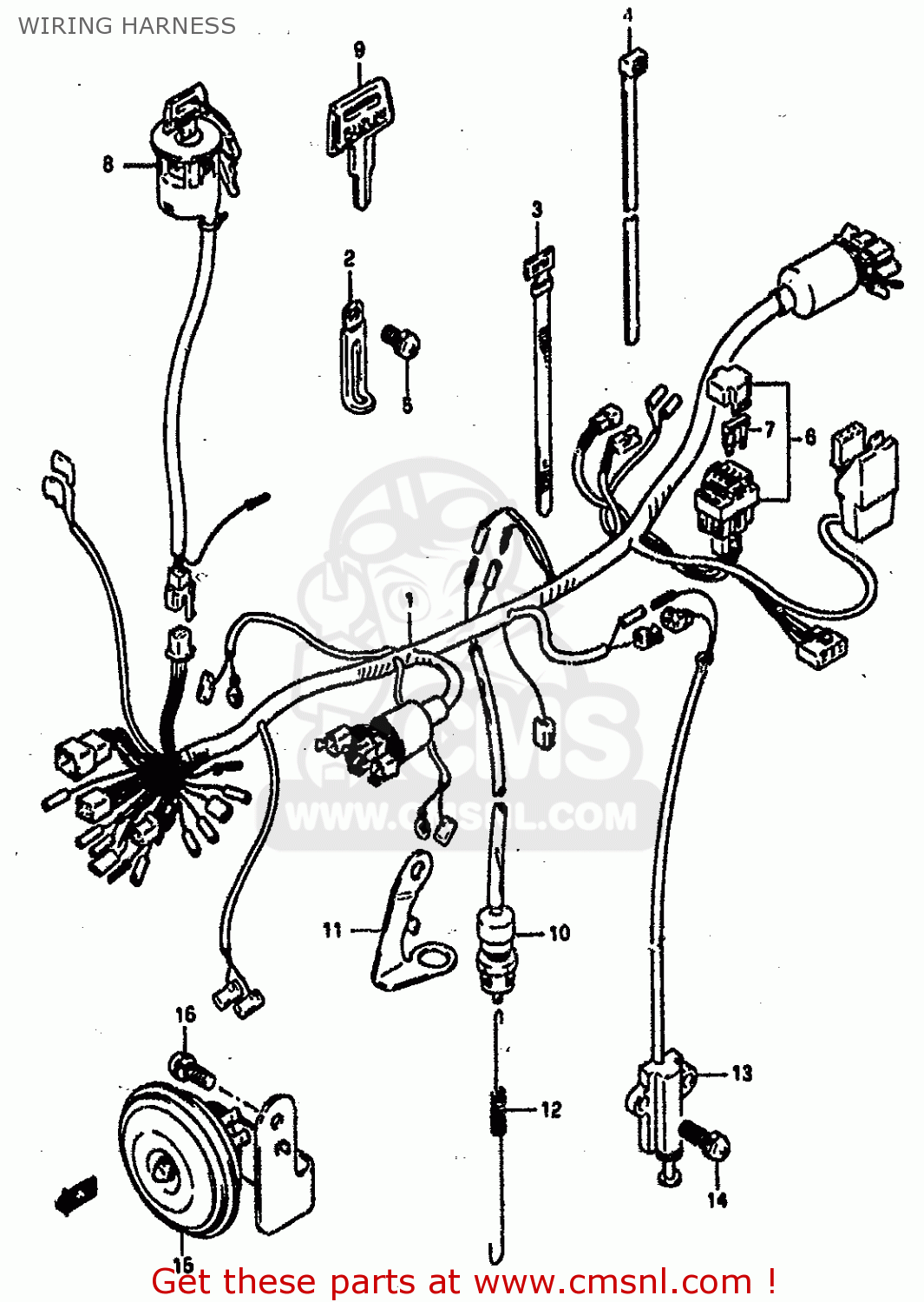

Wiring harness diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3661044B12
ref: 1

HARNESS,WIRING

€ 175.00

2-1

0940408201
ref: 2-1

CLAMP

€ 3.00

2-2

0940406401
ref: 2-2

CLAMP L:35

€ 2.50

2-3

0940406415
ref: 2-3

CLAMP

€ 3.00

3-1

0940714403
ref: 3-1

CLAMP(L:125)

€ 2.50

3-2

0940718402
ref: 3-2

CLAMP(L:165)

€ 2.50

3-3

0940725401
ref: 3-3

CLAMP(L:235)

€ 4.00

0940730401
ref: 4

CLAMP(L:300)

€ 4.50

0211236105
ref: 5

SCREW

€ 1.50

3674004701
ref: 6

BOX ASSY,FUSE

€ 16.00

0948115101
ref: 7

FUSE(15A)

€ 1.50

3711044B02
ref: 8

SWITCH ASSY,IGNITION

€ 72.00

3714649300
ref: 9

KEY,BLANK

€ 13.00

3774014A00
ref: 10

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

4325144B0028W
ref: 11

BRACKET (WHITE)

€ 8.50

0944306012
ref: 12

SPRING

€ 3.00

3784044A11
ref: 13

SWITCH ASSEMBLY,SIDE STAND

€ 75.50

0211236205
ref: 14

SCREW

€ 2.00

3850044B10
ref: 15

HORN ASSEMBLY

€ 48.00

0211236125
ref: 16

SCREW

€ 2.00

WIRING HARNESS

all assemblies
