FRONT FORK COVER

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

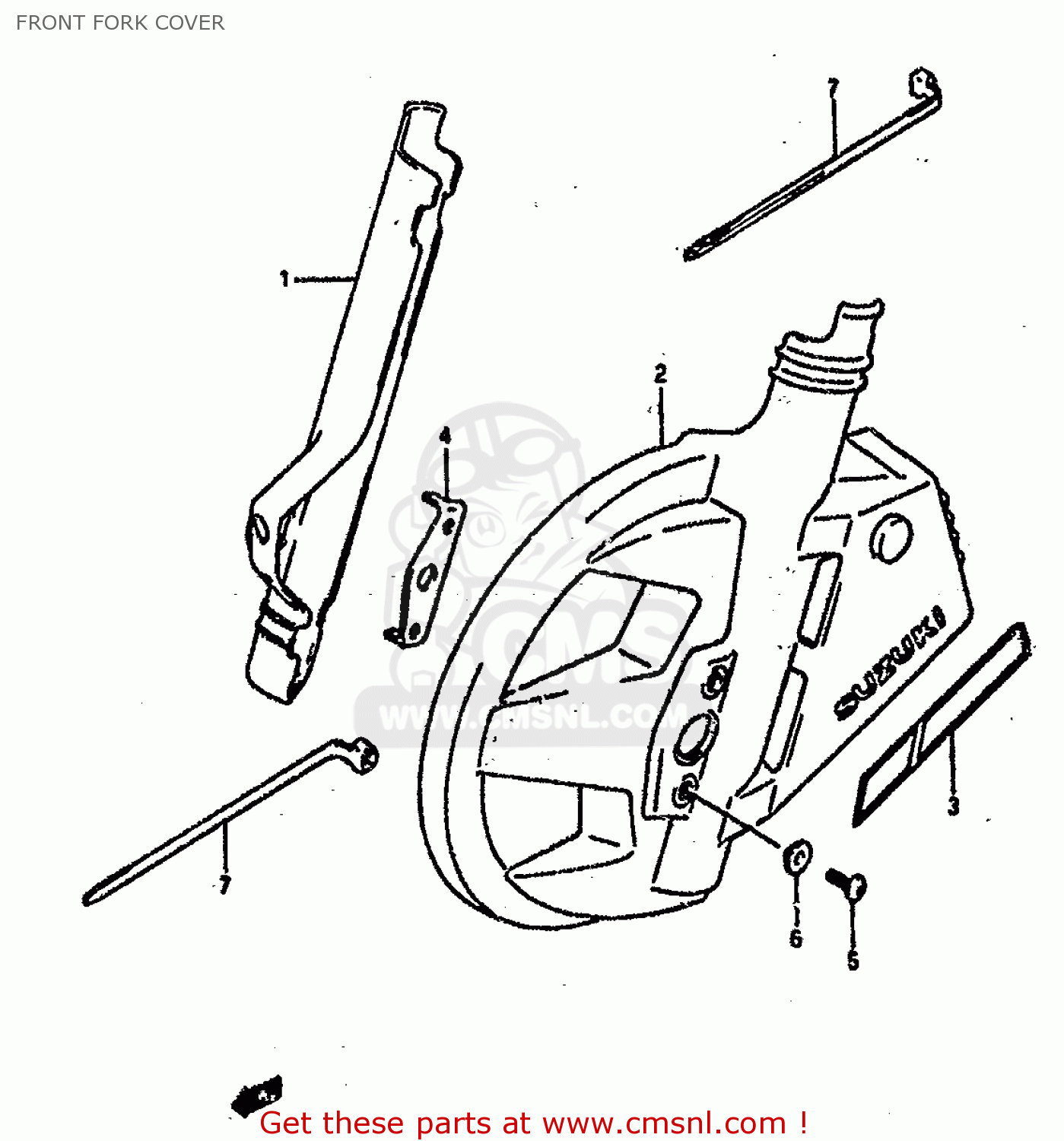

Front fork cover diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

PROTECTOR,FR FORK,R

€ 73.50

1-2

PROTECTOR,FORK RH (BLUE)

€ 74.50

2-1

PROTECTOR,FR FORK,L

€ 243.00

2-2

PROTECTOR,FORK LH (BLUE)

€ 227.50

3-1

6825044B003US
ref: 3-1
FOR 28V

TAPE,PROTECTOR LH

€ 6.00

3-2

6825044B003UU
ref: 3-2
FOR 0NF

TAPE,PROTECTOR LH

€ 7.50

5477044B10
ref: 4

PLATE,PROTECTOR SET

€ 13.00

0214206125
ref: 5

SCREW 6X12

€ 2.00

0916906041
ref: 6

WASHER

€ 2.00

0940725403
ref: 7

CLAMP

€ 4.00

all assemblies
