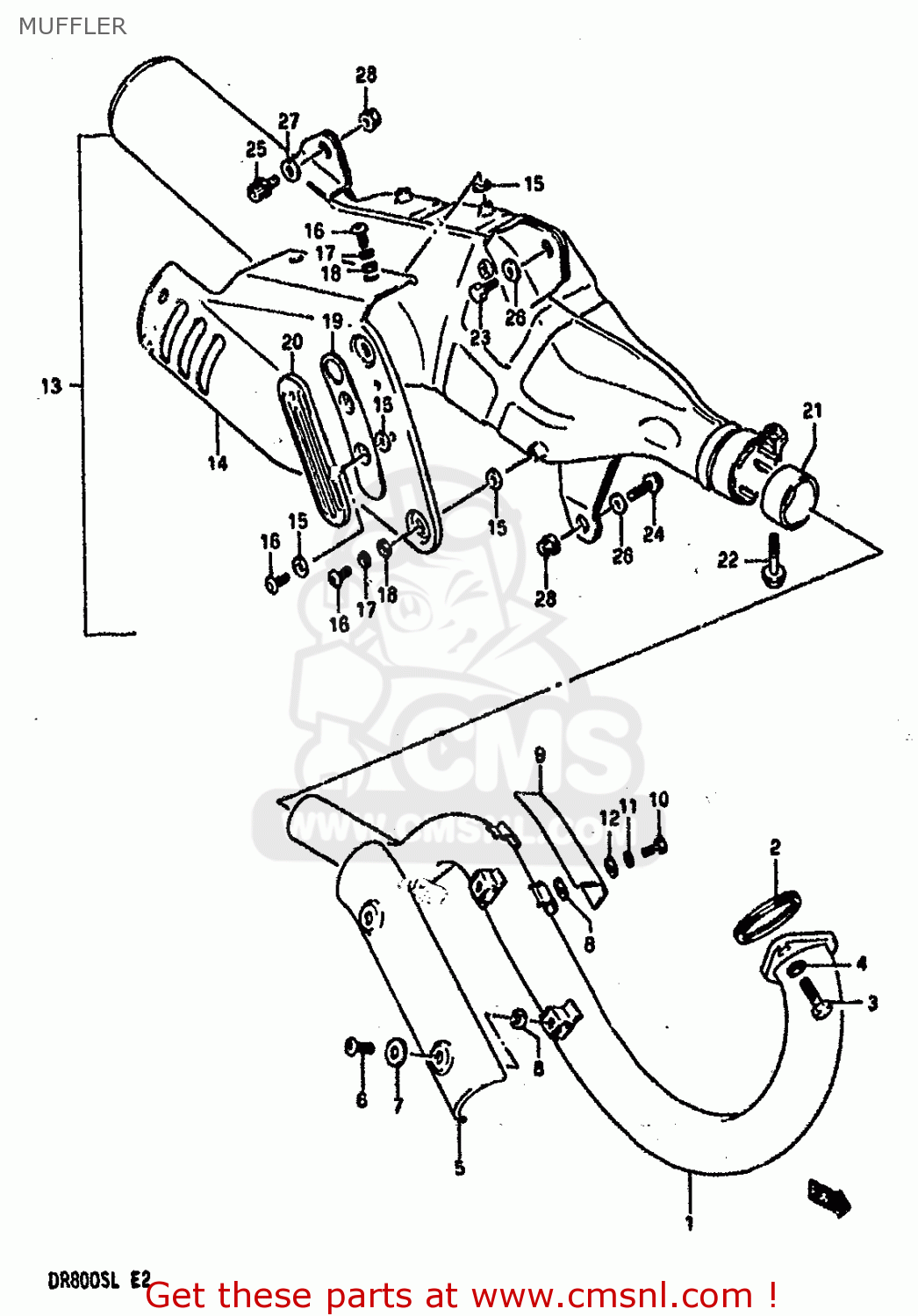

MUFFLER

ref

part #

description

quantity

1

1415044B20
ref: 1

PIPE,EXHAUST

€ 107.00

2

1418144B00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

0110708255
ref: 3

BOLT

€ 2.50

4

0832121084
ref: 4

WASHER,LOCK,8.

€ 2.50

5

1418044B00
ref: 5

COVER,EXHAUST PIPE

€ 37.00

6

0913906041
ref: 6

SCREW

€ 2.50

7

0916006038
ref: 7

WASHER

€ 2.00

8-1

0916806020
ref: 8-1

GASKET (NAS)

€ 2.00

8-2

0916806120
ref: 8-2
E17

GASKET(5.8X13X1.4) (NAS)

€ 2.00

9

1478244B00
ref: 9

PLATE,HEAT GUARD

€ 12.50

10

0110706104
ref: 10

BOLT

€ 2.00

11

0832121064
ref: 11

WASHER,LOCK

€ 2.00

12

0832221064
ref: 12

WASHER

€ 2.00

13-1

1430144B70
ref: 13-1

MUFFLER ASSY

€ 496.50

13-2

1430144B90
ref: 13-2
E39

MUFFLER ASSY

€ 2.00

14

1478044B20
ref: 14

COVER,MUFFLER

€ 76.50

15-1

0916806020
ref: 15-1

GASKET (NAS)

€ 2.00

15-2

0916806120
ref: 15-2
E17

GASKET(5.8X13X1.4) (NAS)

€ 2.00

16

0913906041
ref: 16

SCREW

€ 2.50

17

0832121064
ref: 17

WASHER,LOCK

€ 2.00

18

0916006056
ref: 18

WASHER(6.5X18X1)

€ 2.00

19

1479144B00
ref: 19

GUARD,MUFFLER COVER

€ 5.50

20

1479244B01
ref: 20

COVER,MUFFLER COVER GUARD

€ 6.00

21

1477144B10
ref: 21

CONNECTOR,MUFFLER

€ 19.50

22

0151708405
ref: 22

BOLT 8X40

€ 3.50

23

0151708254
ref: 23

BOLT

€ 2.50

24

0151708355
ref: 24

BOLT

€ 3.50

25

0712008305
ref: 25

BOLT

€ 3.50

26

0916008053
ref: 26

WASHER (8.5X19X2.3)

€ 2.00

27

0916008048
ref: 27

WASHER(8.2X23X3.2)

€ 2.50

28

0831931085
ref: 28

NUT

€ 2.50
