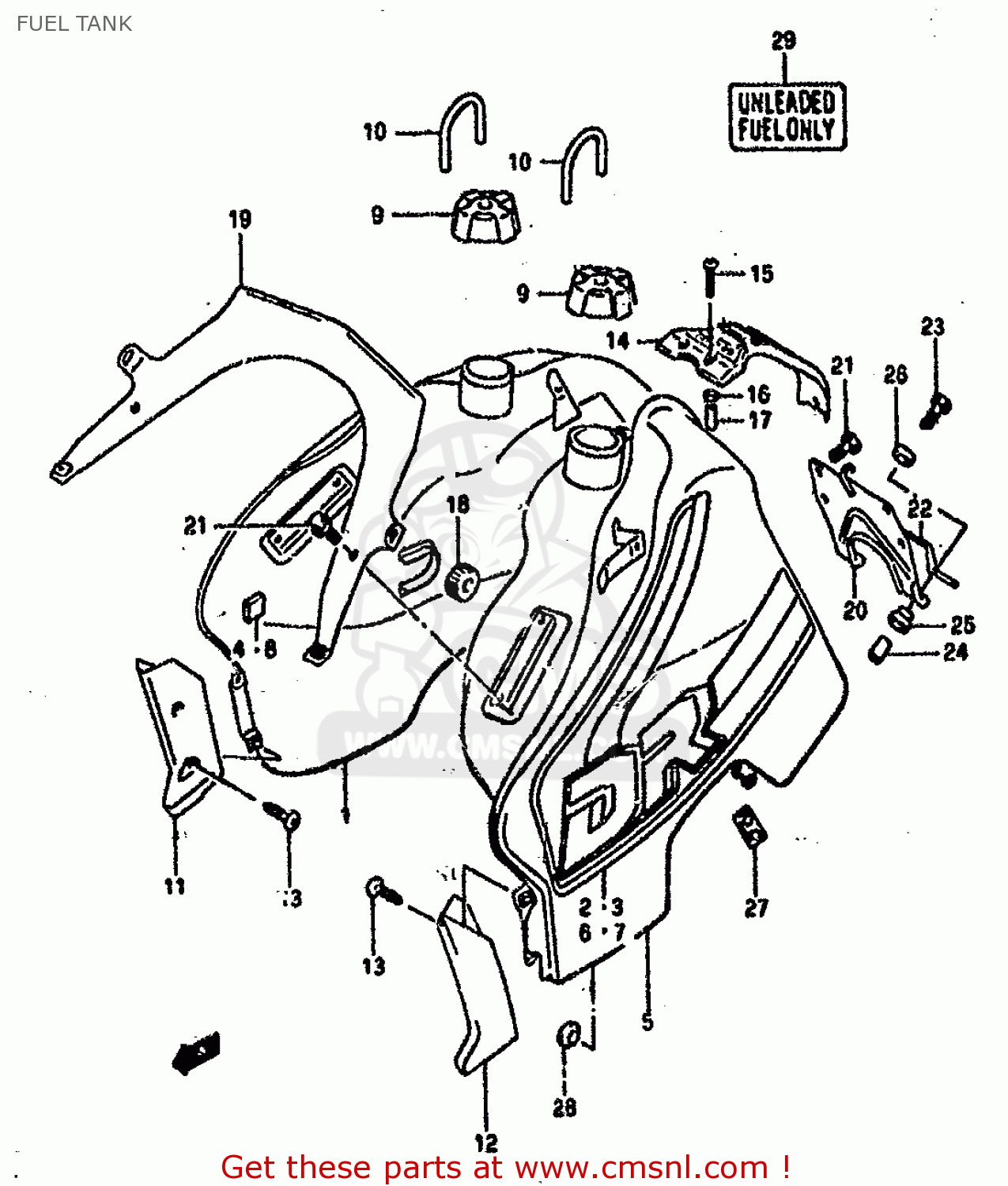

FUEL TANK

ref

part #

description

quantity

1-1

4910044B0028V
ref: 1-1

TANK,FUEL,RH

€ 516.00

1-2

4910044B2028V
ref: 1-2
E22

TANK ASSY,FUEL RH (RED)

€ 516.00

1-3

4910044B400NF
ref: 1-3

TANK ASSY,FUEL RH (BLUE)

€ 502.00

1-4

4910044B600NF
ref: 1-4
E22

TANK ASSY,FUEL RH (BLUE)

€ 502.00

2

6811544B113UP
ref: 2
FOR 28V

TAPE,FUEL TANK RH

€ 78.50

3

6811544B213UR
ref: 3
FOR 0NF

TAPE,FUEL TANK RH

€ 47.50

4

4451444B00
ref: 4

CUSHION

€ 1.50

5-1

4910044B1028V
ref: 5-1

TANK ASSY,FUEL LH (RED)

€ 774.50

5-2

4910044B3028V
ref: 5-2
E22

TANK ASSY,FUEL LH (RED)

€ 774.50

5-3

4910044B500NF
ref: 5-3

TANK ASSY,FUEL LH (BLUE)

€ 502.00

5-4

4910044B700NF
ref: 5-4
E22

TANK ASSY,FUEL LH (BLUE)

€ 502.00

6

6811644B113UP
ref: 6
FOR 28V

TAPE,FUEL TANK

€ 78.50

7

6811644B213UR
ref: 7
FOR 0NF

TAPE,FUEL TANK

€ 124.00

8

4451444B00
ref: 8

CUSHION

€ 1.50

9

4420044B00
ref: 9

CAP ASSY,FUEL TANK

€ 43.00

10

0935250823300
ref: 10

HOSE

€ 13.00

11-1

4451144B1028V
ref: 11-1

COVER,FUEL TANK FR,R

€ 37.50

11-2

4451144B100NF
ref: 11-2

COVER,FUEL TANK RH (BLUE)

€ 32.50

12-1

4451244B1028V
ref: 12-1

COVER,FUEL TANK FR,L

€ 22.00

12-2

4451244B100NF
ref: 12-2

COVER,FUEL TANK FR,L

€ 29.00

13

0214216125
ref: 13

SCREW

€ 3.50

14

4451344B00
ref: 14

COVER,FUEL TANK CTR

€ 38.00

15

0913906046
ref: 15

SCREW (6X40)

€ 2.50

16

0916008107
ref: 16

WASHER

€ 2.00

17

0918006201
ref: 17

SPACER

€ 3.50

18

0932910021
ref: 18

CUSHION

€ 6.00

19

4452144B00
ref: 19

BRACKET,FRONT

€ 35.50

20

4453044B00
ref: 20

BRACKET,REAR

€ 25.50

21

0151706108
ref: 21

BOLT

€ 2.50

22

4511944B00
ref: 22

BRACKET,SEAT FRONT HOOK

€ 7.50

23

0151706307
ref: 23

BOLT

€ 2.00

24

0918006072
ref: 24

SPACER

€ 2.00

25

0932010020
ref: 25

CUSHION

€ 4.00

26

0932014013
ref: 26

CUSHION

€ 3.00

27

0932910007
ref: 27

CUSHION

€ 3.00

28

0932110021
ref: 28

CUSHION

€ 4.50

29

8693273060
ref: 29
E24

LABEL,FUEL CAUTION

€ 4.00
