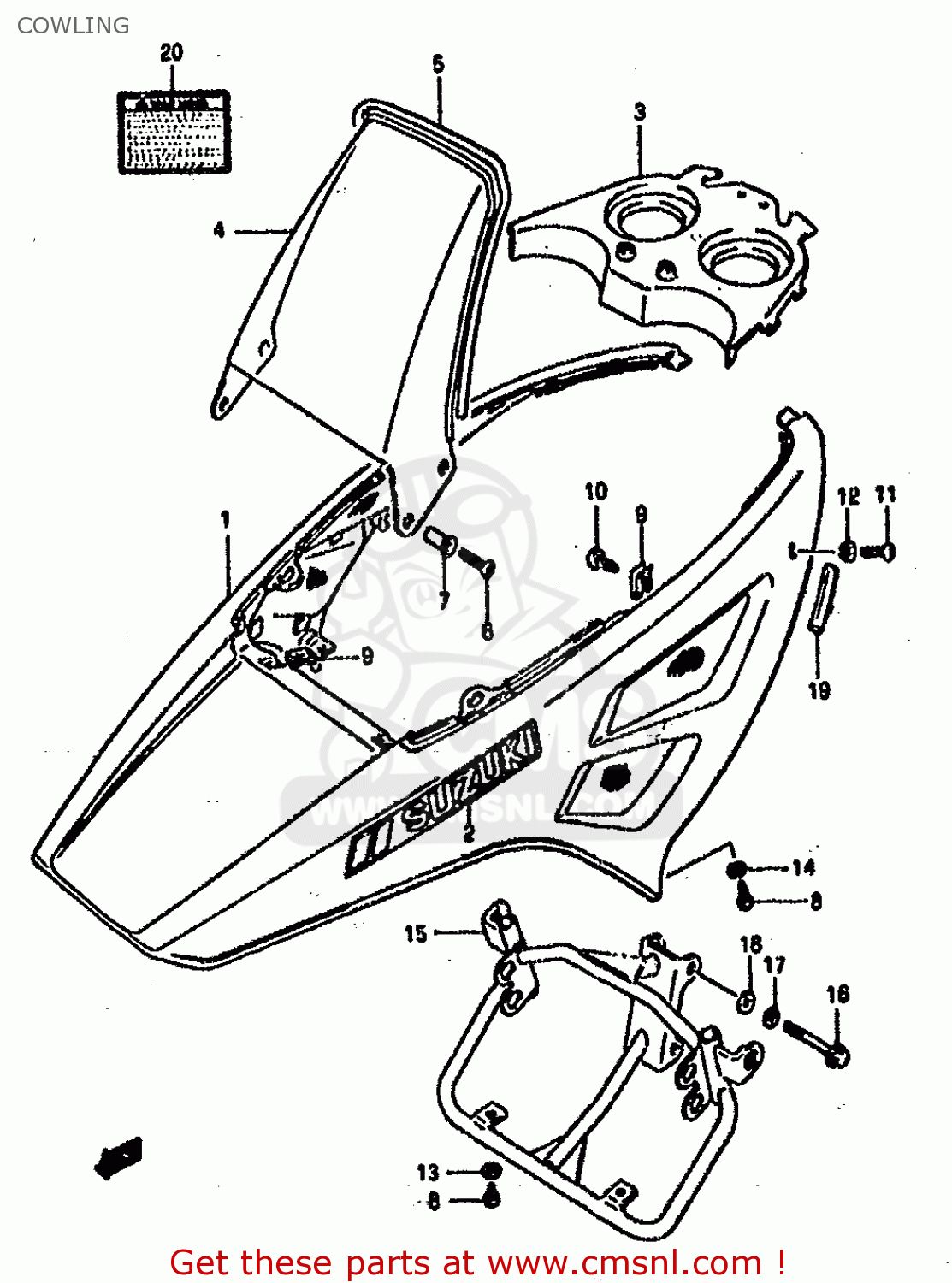

COWLING

ref

part #

description

quantity

1-1

9440044B0028V
ref: 1-1

BODY ASSY,COWLING (RED)

€ 509.50

1-2

9440044B000NF
ref: 1-2

BODY ASSY,COWLING (BLUE)

€ 567.00

2-1

6818144B003UP
ref: 2-1
FOR 28V

EMBLEM

€ 10.50

2-2

6818144B003UR
ref: 2-2
FOR 0NF

EMBLEM

€ 7.50

3-1

9441344B1028V
ref: 3-1

BODY,CENTER (RED)

€ 69.50

3-2

9441344B100NF
ref: 3-2

BODY,CENTER (BLUE)

€ 46.50

4

9461144B00
ref: 4

METER VISOR

€ 99.00

5

9463144B00
ref: 5
E17

MOLDING,VISOR

€ 32.00

6

0913905022
ref: 6

SCREW

€ 2.50

7

0915905019
ref: 7

NUT

€ 5.50

8

0324205165
ref: 8

SCREW

€ 1.50

9

0914805019
ref: 9

NUT

€ 2.00

10

0324105125
ref: 10

SCREW

€ 1.50

11

0913905022
ref: 11

SCREW

€ 2.50

12

0916905016
ref: 12

WASHER

€ 3.00

13

0916005036
ref: 13

WASHER (5.5X14X1.2)

€ 2.00

14

0916006102
ref: 14

WASHER (6.5X20X1.6)

€ 2.00

15

9451044B01
ref: 15

BRACE,COWLING

€ 126.50

16

0151708555
ref: 16

BOLT

€ 3.00

17

0832131084
ref: 17

LOCK WASHER

€ 2.50

18

0832221085
ref: 18

WASHER

€ 1.50

19

6819244B00
ref: 19

SEAL

€ 4.00

20-1

6831915D00
ref: 20-1

LABEL

€ 8.00

20-2

6831915D20
ref: 20-2
E22,E39

LABEL, WARNING

€ 8.00

20-3

6831915D30
ref: 20-3
E4,E21

LABEL, WARNING

€ 8.50

20-4

6831915D40
ref: 20-4
E34

LABEL, WARNING

€ 8.00

20-5

6831915D50
ref: 20-5
E53

LABEL, WARNING

€ 8.00

all assemblies
