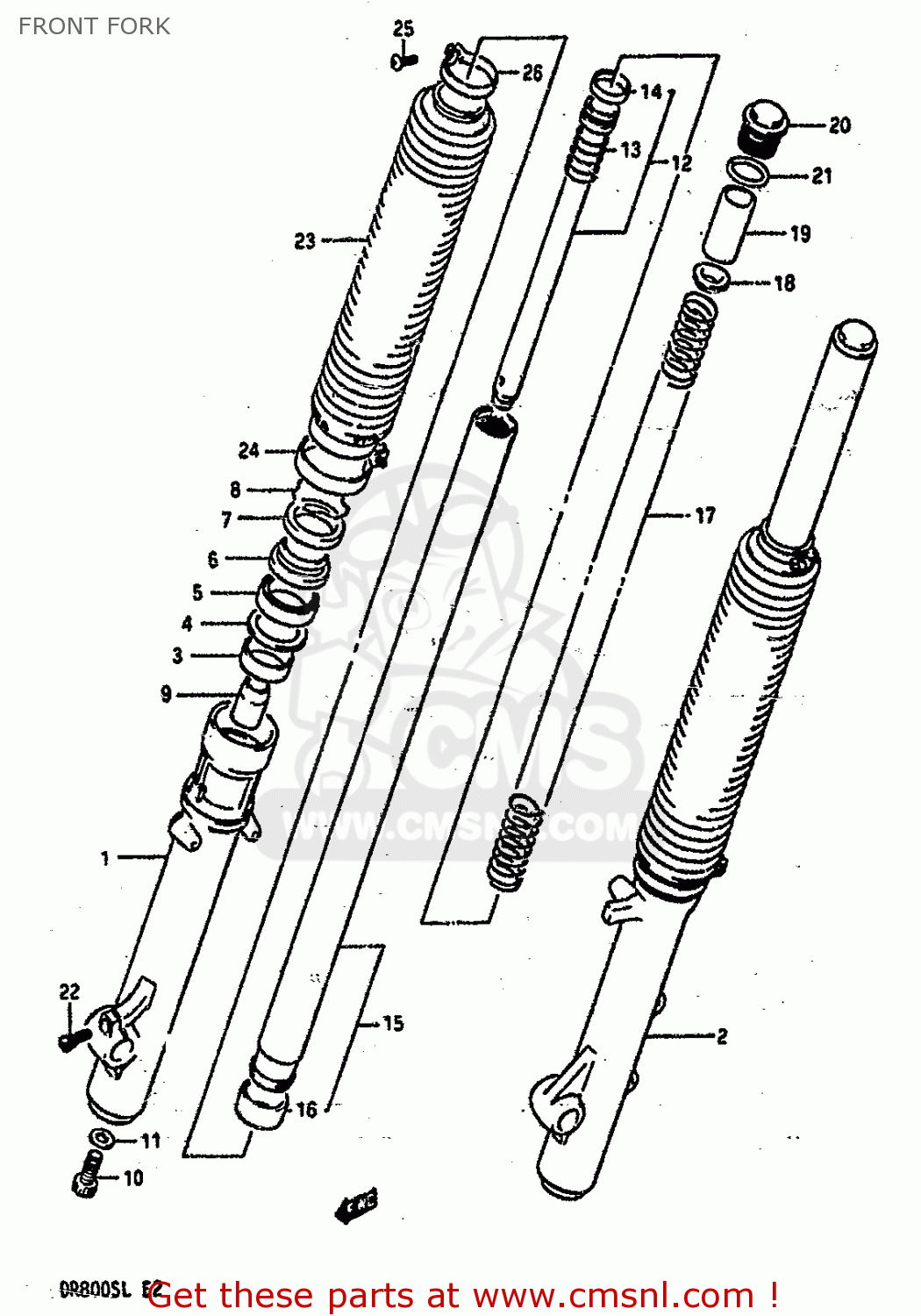

FRONT FORK

ref

part #

description

quantity

0

5110344B01
ref: 0

DAMPER ASSY,RH

€ 665.00

0

5110444B01
ref: 0

DAMPER ASSY,LH

€ 665.00

1

5113044B00
ref: 1

TUBE,OUTER RH

€ 291.50

2

5114044B00
ref: 2

TUBE,OUTER LH

€ 322.00

3

5116728C00
ref: 3

METAL,SLIDE

€ 20.50

4

5115805A00
ref: 4

WASHER,FORK OIL SEAL

€ 5.00

5

5115344B00
ref: 5

SEAL,OIL

€ 17.50

6

5117344B00
ref: 6

SEAL,DUST

€ 13.00

7

5115844B00
ref: 7

WASHER

€ 6.00

8

5115649440
ref: 8

RING,OIL SEAL STOPPER

€ 5.50

9

5119544B01
ref: 9

PIECE,OIL LOCK

€ 8.00

10

5114740300
ref: 10

BOLT,CYLINDER

€ 5.50

11

5114840300
ref: 11

GASKET,CYLINDER (NAS)

€ 2.50

12

5114644B01
ref: 12

CYLINDER

€ 27.50

13

5117714A00
ref: 13

SPRING,REBOUND

€ 0.00

14

5119614A00
ref: 14

RING,FRONT FORK PISTON

€ 6.50

15

5112044B01
ref: 15

TUBE,INNER

€ 106.50

16

5112128C00
ref: 16

PISTON

€ 23.00

17

5117144B00
ref: 17

SPRING

€ 59.00

18

5117224A00
ref: 18

GUIDE,SPRING

€ 3.00

19

5117644B01
ref: 19

SPACER

€ 5.50

20

5135144B00
ref: 20

BOLT,FORK

€ 35.50

21

5111740300
ref: 21

O RING

€ 2.50

22

5113844B00
ref: 22

BOLT,SOCKET HEAD(8X22)

€ 4.00

23-1

5157144B0028V
ref: 23-1

BOOT

€ 62.00

23-2

5157144B0038K
ref: 23-2

BOOT (BLUE)

€ 66.00

24

5157600B00
ref: 24

BAND,BOOT LWR

€ 6.50

25

0211204208
ref: 25

SCREW

€ 1.00

26

5157544B00
ref: 26

BAND,BOOT

€ 9.00
