TURN SIGNAL LAMP

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

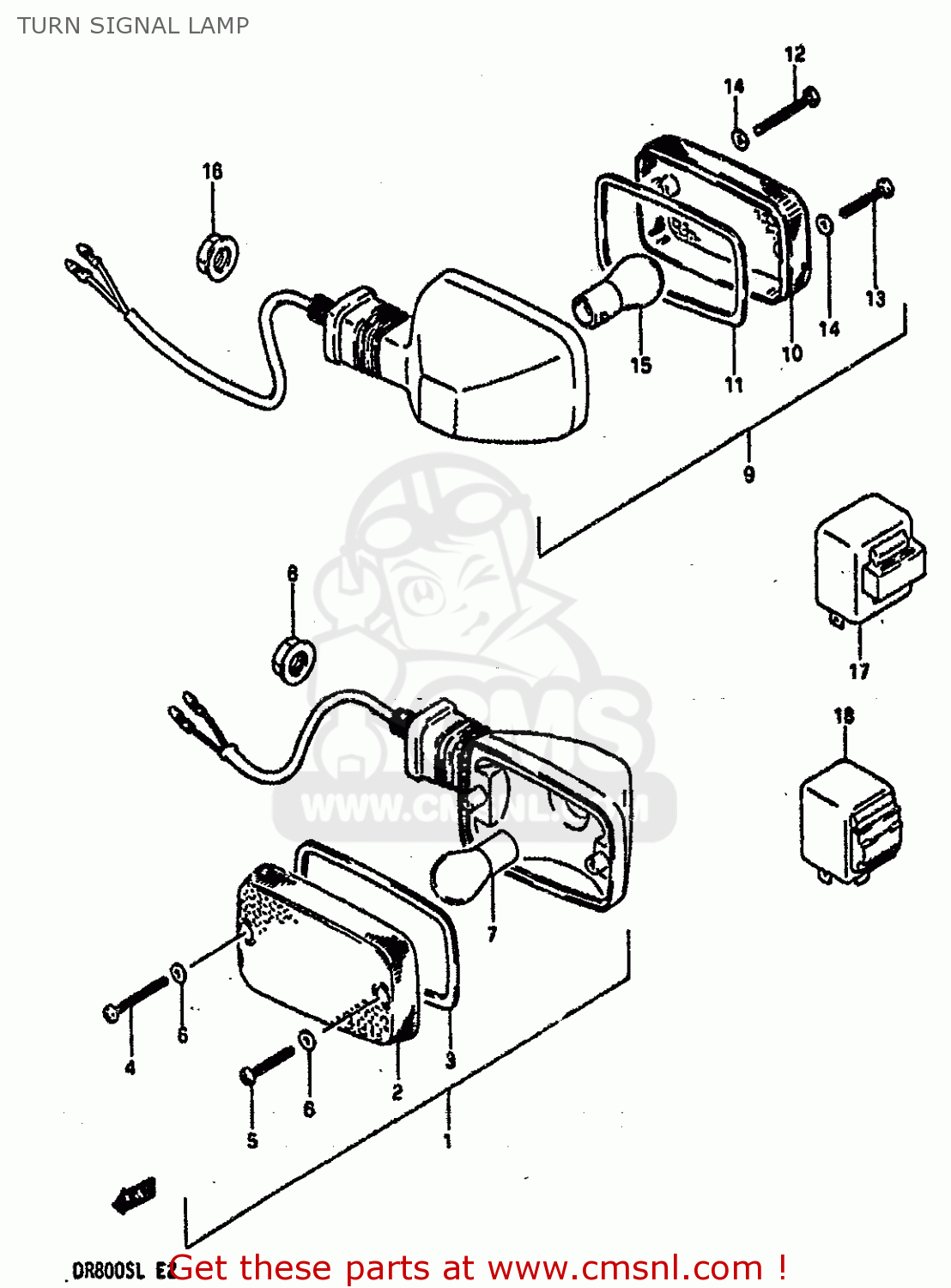

Turn signal lamp diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

3560114A23999
ref: 1-1
E4,E24,E34,E53

LAMP ASSY,FR

€ 120.50

1-2

3560114A42999
ref: 1-2

LAMP ASSY,FR TURN SIGNAL

€ 108.00

3561202181
ref: 2

LENS,FR

€ 9.00

3561348700
ref: 3

GASKET (NAS)

€ 7.50

3562302180
ref: 4

SCREW,TURN SIG LENS FITTING

€ 2.00

0321104308
ref: 5

SCREW

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0947112045
ref: 7

BULB(12V21W)

€ 5.00

0831626105
ref: 8

NUT

€ 3.50

9-1

3560344A51
ref: 9-1

LAMP,RR TURNSI

€ 93.50

9-2

3560344A61
ref: 9-2
E15,E16,E17,E18,E22,

LAMP ASSY,REAR TURN SIGNAL

€ 41.00

3565202181
ref: 10

LENS,RR

€ 8.50

3561348700
ref: 11

GASKET (NAS)

€ 7.50

3562302180
ref: 12

SCREW,TURN SIG LENS FITTING

€ 2.00

0321104308
ref: 13

SCREW

€ 1.50

3562743010
ref: 14

GASKET (NAS)

€ 2.00

0947112045
ref: 15

BULB(12V21W)

€ 5.00

0831626105
ref: 16

NUT

€ 3.50

3861031310
ref: 17

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

3861045091
ref: 18
E22

RELAY ASSY,TUR

€ 67.50

TURN SIGNAL LAMP

all assemblies
