CRANKCASE COVER

DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

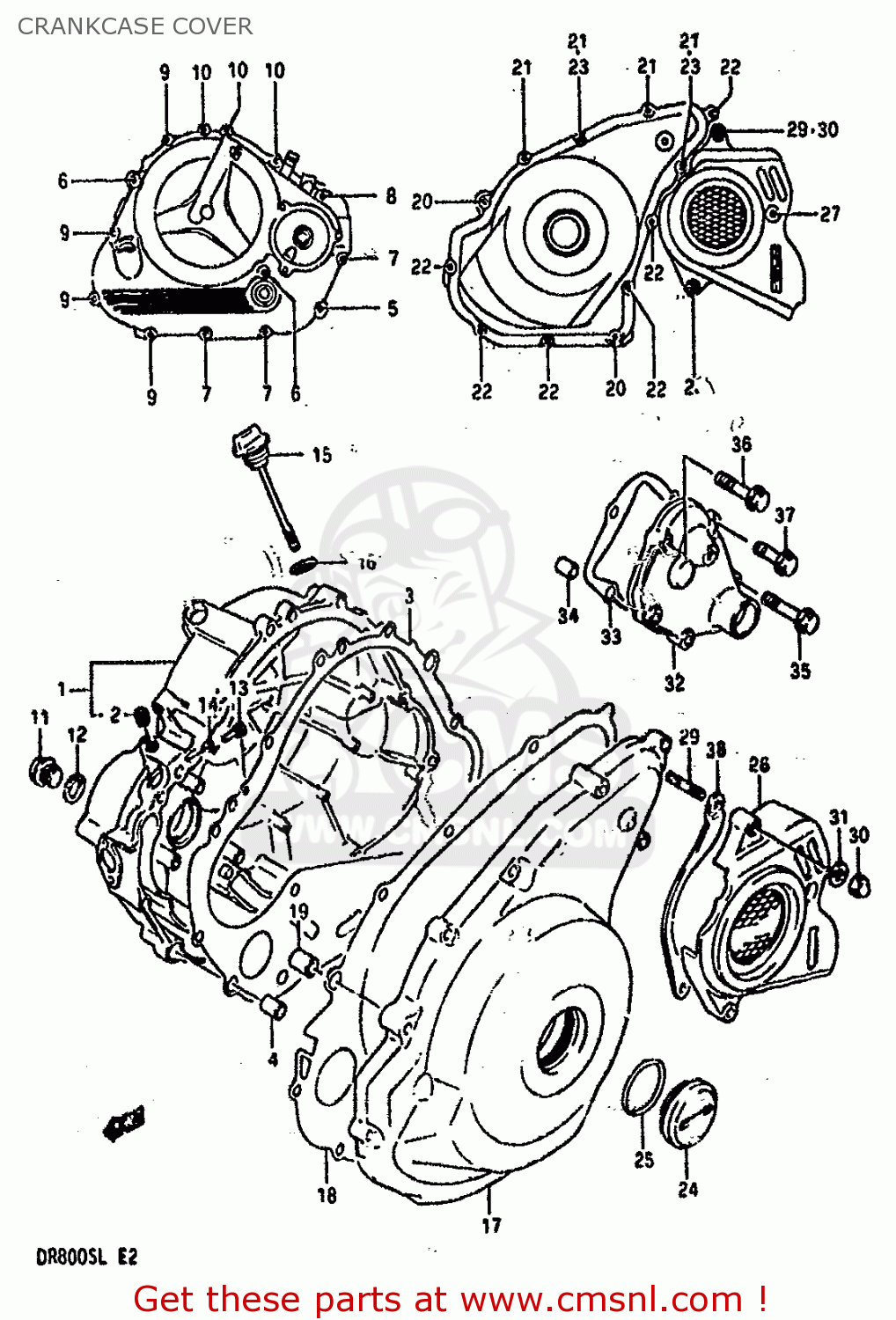

Crankcase cover diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CRANKCASE COVER DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE COVER DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE COVER DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
1134044B000ML
ref: 1
COVER,CLUTCH (GRAY)
€ 214.50
2
0924605001
ref: 2
PLUG
0924605001
€ 3.50
3-1
1148244B00
ref: 3-1
GASKET,CLUTCH COVER (NAS)
1148244B00
€ 48.50
3-2
1148244B00H17
ref: 3-2
E17
GASKET,CLUTCH COVER (NA)
€ 48.50
4
0920613001
ref: 4
PIN
0920613001
€ 2.50
5
0154706605
ref: 5
BOLT (6X60)
€ 3.50
6
0154706505
ref: 6
BOLT 6X50
0154706505
€ 3.50
7
0154706454
ref: 7
BOLT
0154706454
€ 3.00
8
0154706404
ref: 8
BOLT 6X40
€ 3.00
9
0154706304
ref: 9
BOLT 6X30
0154706304
€ 2.50
10
0154706254
ref: 10
BOLT 6X25
0154706254
€ 2.50
11
0924714015
ref: 11
PLUG(14X12)
0924714015
€ 2.50
12
0916814004
ref: 12
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
13
0949336003
ref: 13
JET
€ 9.00
14
0928004004
ref: 14
O RING(D:1.2,ID:4)
0928004004
€ 2.00
15
1197044B20
ref: 15
GAUGE,OIL LEVEL
€ 20.50
16
0928017003
ref: 16
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
17
1135144B000ML
ref: 17
COVER,MAGNETO (GRAY)
€ 164.50
18-1
1148344B00
ref: 18-1
GASKET,MAGNETO COVER (MCA)
1148344B00
€ 68.50
18-2
1148344B00H17
ref: 18-2
E17
GASKET,MAGNETO COVER (NA)
€ 68.50
19
0920613001
ref: 19
PIN
0920613001
€ 2.50
20
0154706454
ref: 20
BOLT
0154706454
€ 3.00
21
0154706354
ref: 21
BOLT 6X35
0154706354
€ 3.00
22
0154706254
ref: 22
BOLT 6X25
0154706254
€ 2.50
23
0916806023
ref: 23
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
24
0925936013
ref: 24
PLUG
0925936013
€ 10.50
25
0928033004
ref: 25
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
26
1136044B000ML
ref: 26
COVER,ENGINE SPROCKET (GRAY)
1136044B000ML
€ 51.50
27
0154706304
ref: 27
BOLT 6X30
0154706304
€ 2.50
28
0154706254
ref: 28
BOLT 6X25
0154706254
€ 2.50
29
0910806107
ref: 29
BOLT,STUD
€ 4.00
30
0831311065
ref: 30
NUT 6MM
0831311065
€ 2.00
31
0832221064
ref: 31
WASHER
0832221064
€ 2.00
32
1137144B000ML
ref: 32
COVER,GEAR SHIFT (GRAY)
€ 48.00
33-1
1148544B00
ref: 33-1
GASKET,GEAR SHIFT COVER
€ 10.00
33-2
1148544B00H17
ref: 33-2
E17
GASKET,GEAR SHIFT COVER (NA)
1148544B00H17
€ 10.00
34
0421109129
ref: 34
PIN
0421109129
€ 2.00
35
0154706304
ref: 35
BOLT 6X30
0154706304
€ 2.50
36
0154706254
ref: 36
BOLT 6X25
0154706254
€ 2.50
37
0154706165
ref: 37
BOLT
0154706165
€ 2.50
38
2764144B01
ref: 38
PLATE,FR CHAIN GUIDE
2764144B01
€ 5.50
