DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

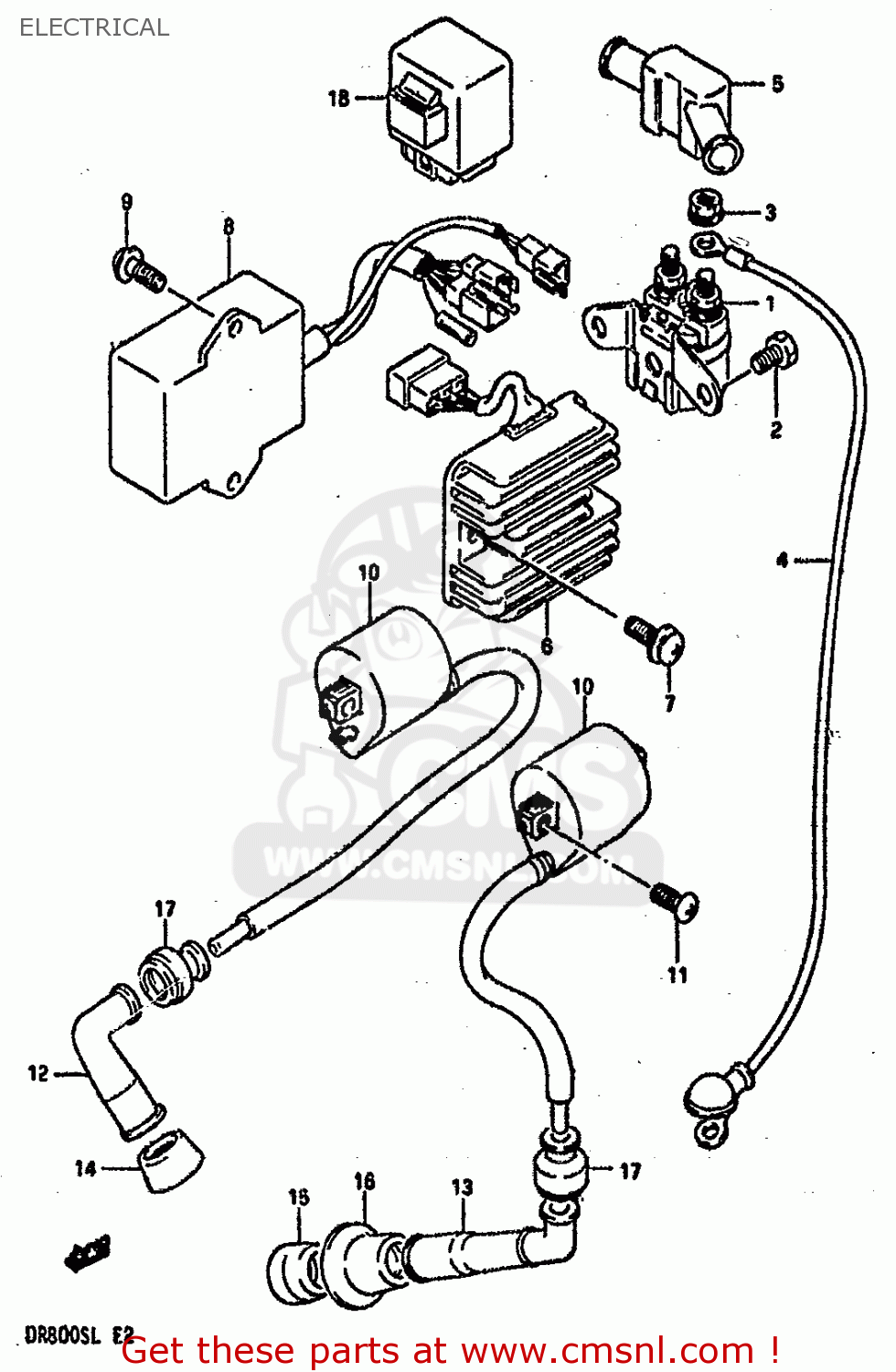

Electrical diagram DR800S 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3180049100
ref: 1

RELAY ASSY,STARTING MOTOR

€ 89.00

0110406086
ref: 2

BOLT

€ 2.50

0836135066
ref: 3

NUT

€ 2.00

3385044B00
ref: 4

WIRE,STARTING MOTOR

€ 26.00

3186144B00
ref: 5

CAP,STARTER RELAY

€ 3.50

3280034A00
ref: 6

RECTIFIER ASSY

€ 194.50

0211216166
ref: 7

SCREW

€ 2.50

3290044B00
ref: 8

CDI UNIT

€ 392.50

0215206166
ref: 9

SCREW

€ 2.00

3341044B00
ref: 10

COIL ASSY,IGNITION

€ 102.50

0211206206
ref: 11

SCREW

€ 2.00

3351043010
ref: 12

CAP,SPARK PLUG

€ 11.50

3351048B10
ref: 13

CAP,SPARK PLUG

€ 29.50

3354124510
ref: 14

SEAL,SPARK PLUG CAP

€ 7.00

3354127A22
ref: 15

SEAL,SPARK PLUG

€ 7.00

3354344B00
ref: 16

COVER,SPARK PLUG CAP,L

€ 5.50

3354238B00
ref: 17

SEAL,HIGH TENSION CORD

€ 4.50

3291044B00
ref: 18

CONTROL UNIT,DECOMP

€ 110.50
