CARBURETOR
GN125 1998 (W) (E02 E04 E18 E21 E22)

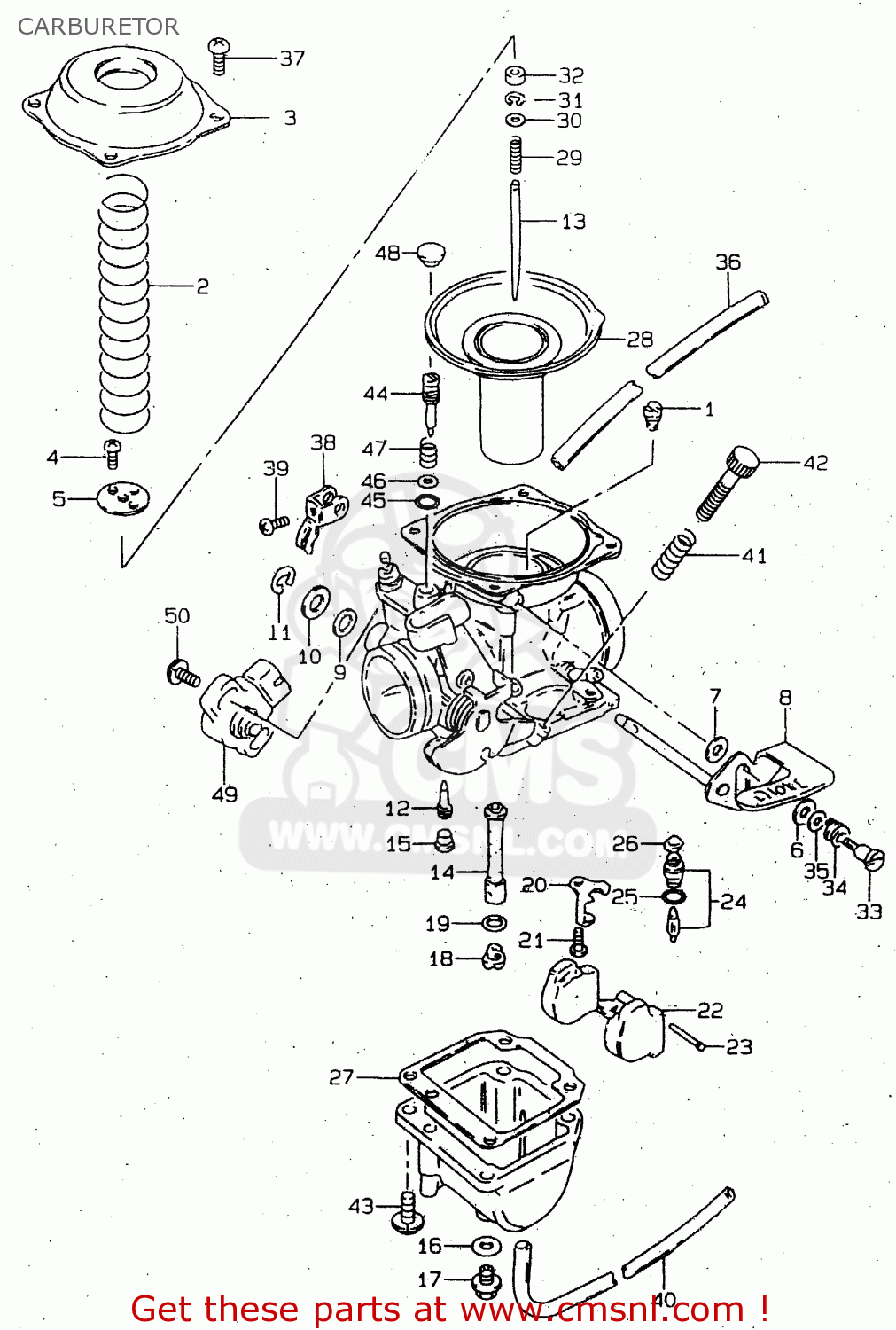

Carburetor diagram GN125 1998 (W) (E02 E04 E18 E21 E22)
CARBURETOR GN125 1998 (W) (E02 E04 E18 E21 E22)
×
prices are in EUR
ref
part #
description
quantity
0
1320005313
ref: 0
GN125V E1
CARBURETOR ASSY
€ 332.50
0
1320005302
ref: 0
GN125EV E1
CARBURETOR ASSEMBLY
€ 144.50
0
1320005313
ref: 0
E2,E21,E71
CARBURETOR ASSY
€ 332.50
0
13200053D0
ref: 0
E18
CARBURETOR ASSY
€ 286.50
0
1320005302
ref: 0
E30
CARBURETOR ASSEMBLY
€ 144.50
0
1320005500
ref: 0
E4
CARBURETOR ASSY
€ 156.50
0
1320005510
ref: 0
E22
CARBURETOR ASSY
€ 116.50
0
1320005540
ref: 0
P9
CARBURETOR ASSY
€ 0.00
1
0949136005
ref: 1
JET,MAIN(180)
€ 9.50
1
0949129010
ref: 1
E4,E22,P9, <-09491-2
JET,MAIN(147.5)
€ 9.00
2
1350333200
ref: 2
SPRING
€ 8.50
2
1350305350
ref: 2
E4,E22,P9
SPRING,THROTTLE VALVE
€ 8.50
3
1350233210
ref: 3
COVER
€ 19.50
4
0211233083
ref: 4
SCREW
€ 2.00
4
0211203063
ref: 4
E4,E22,P9
SCREW
€ 2.00
5
1338937400
ref: 5
PLATE
€ 5.50
6
1343105300
ref: 6
PACKING (NAS)
€ 5.50
7
0916004015
ref: 7
WASHER(4.1X12X0.8)
€ 2.00
8
1341005300
ref: 8
SHAFT ASSY,STARTER
€ 19.00
8
1341005500
ref: 8
E4,E22,P9
SHAFT ASSY,STARTER
€ 0.00
9
1365151010
ref: 9
E18
SEAL
€ 4.00
10
1355747070
ref: 10
E18
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
11
1361744080
ref: 11
E18
E RING
€ 3.50
12
0949235008
ref: 12
JET,PILOT(35)
€ 7.50
12
0949235010
ref: 12
E18
JET,PILOT(37.5)
€ 10.50
12
0949217006
ref: 12
E4,E22,P9
JET,PILOT(17.5)
€ 7.50
13
1338305310
ref: 13
NEEDLE,JET
€ 15.00
13
1338305300
ref: 13
E30
NEEDLE,JET
€ 0.00
14
0949400370
ref: 14
JET,NEEDLE(P-2)
€ 21.00
14
0949400725
ref: 14
E4,E22,P9
JET,NEEDLE(O-8)
€ 26.00
15
1335744080
ref: 15
E1,E2,E18,E21,E30,E7
PLUG,NEEDLE JET
€ 4.50
16
1324644080
ref: 16
GASKET (NAS)
€ 3.50
17
1324744080
ref: 17
PLUG,DRAIN
€ 9.50
18
0949120012
ref: 18
JET,MAIN(102.5)
€ 8.50
18
0949197003
ref: 18
E4,E22,P9
JET,MAIN(97.5)
€ 8.50
19
1338203110
ref: 19
<-13332-44080
WASHER
€ 2.50
20
1337311400
ref: 20
PLATE,NEEDLE VALVE FITING
€ 7.00
20
1337339110
ref: 20
E18,E30
PLATE
€ 6.50
20
1337311400
ref: 20
GN125V E1
PLATE,NEEDLE VALVE FITING
€ 7.00
20
1337339110
ref: 20
GN125EV E1
PLATE
€ 6.50
21
0211204063
ref: 21
SCREW 4X6
€ 2.00
22
1325005300
ref: 22
FLOAT
€ 30.00
23
1325492311
ref: 23
PIN,FLOAT
€ 2.00
24
1337044500
ref: 24
VALVE ASSY,NEEDLE
€ 40.50
25
1337444080
ref: 25
O-RING,NEEDLE VALVE
€ 6.00
26
1337684110
ref: 26
FILTER
€ 6.50
27
1325105400
ref: 27
GASKET,FLOAT CHAMBER (NAS)
€ 12.00
28
13500053D0
ref: 28
DIAPHRAGM ASSY
€ 203.50
29
1338844030
ref: 29
SPRING
€ 6.00
30
1338244030
ref: 30
WASHER
€ 3.50
31
1339410010
ref: 31
CLIP
€ 4.50
32
1338747010
ref: 32
RING
€ 7.50
33
1343833110
ref: 33
SCREW
€ 5.50
33
1343333110
ref: 33
E4,E22,P9
SCREW,STARTER LEVER
€ 5.50
34
1342643010
ref: 34
SPRING
€ 4.50
35
1361543010
ref: 35
WASHER,STARTER SHAFT
€ 2.50
36
0935250823600
ref: 36
L:600->300
HOSE(5X8.2X600)
€ 13.00
37
0211205087
ref: 37
SCREW
€ 2.00
38
1342205300
ref: 38
LEVER
€ 0.00
39
1360531210
ref: 39
SCREW
€ 3.00
40
0935135653600
ref: 40
L:600->350
HOSE(3.5X6.5X600)
€ 5.50
41
1326837420
ref: 41
SPRING,THROTTLE SCREW
€ 3.50
42
1326725D00
ref: 42
<-13267-37100
ADJUSTER
€ 9.00
43
1360104148
ref: 43
SCREW
€ 2.50
43
1360145C00
ref: 43
E4,E22,P9
SCREW
€ 2.50
44
1327945400
ref: 44
E2,E4,E21,E22,E71
SCREW,PILOT
€ 8.00
44
1327945400
ref: 44
E30
SCREW,PILOT
€ 8.00
44
1327945400
ref: 44
P9
SCREW,PILOT
€ 8.00
44
1327945400
ref: 44
GN125V E1
SCREW,PILOT
€ 8.00
44
1327945400
ref: 44
GN125EV E1
SCREW,PILOT
€ 8.00
45
1329529900
ref: 45
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
46
1329129900
ref: 46
EXCEPT E18
WASHER
€ 2.00
47
1326847070
ref: 47
EXCEPT E18
SPRING
€ 5.00
48
1328105A00
ref: 48
E1,E2,E21,E30,E71
PLUG
€ 3.50
48
1335736A00
ref: 48
E4,E22,P9
PLUG
€ 4.50
49
1358005500
ref: 49
E4,E22
SENSOR ASSY
€ 104.00
50
1360255A00
ref: 50
E4,E22
SCREW, SENSOR
€ 3.00
