FRONT WHEEL (GN125EV/EW/EX)

GN125 1998 (W) (E02 E04 E18 E21 E22)

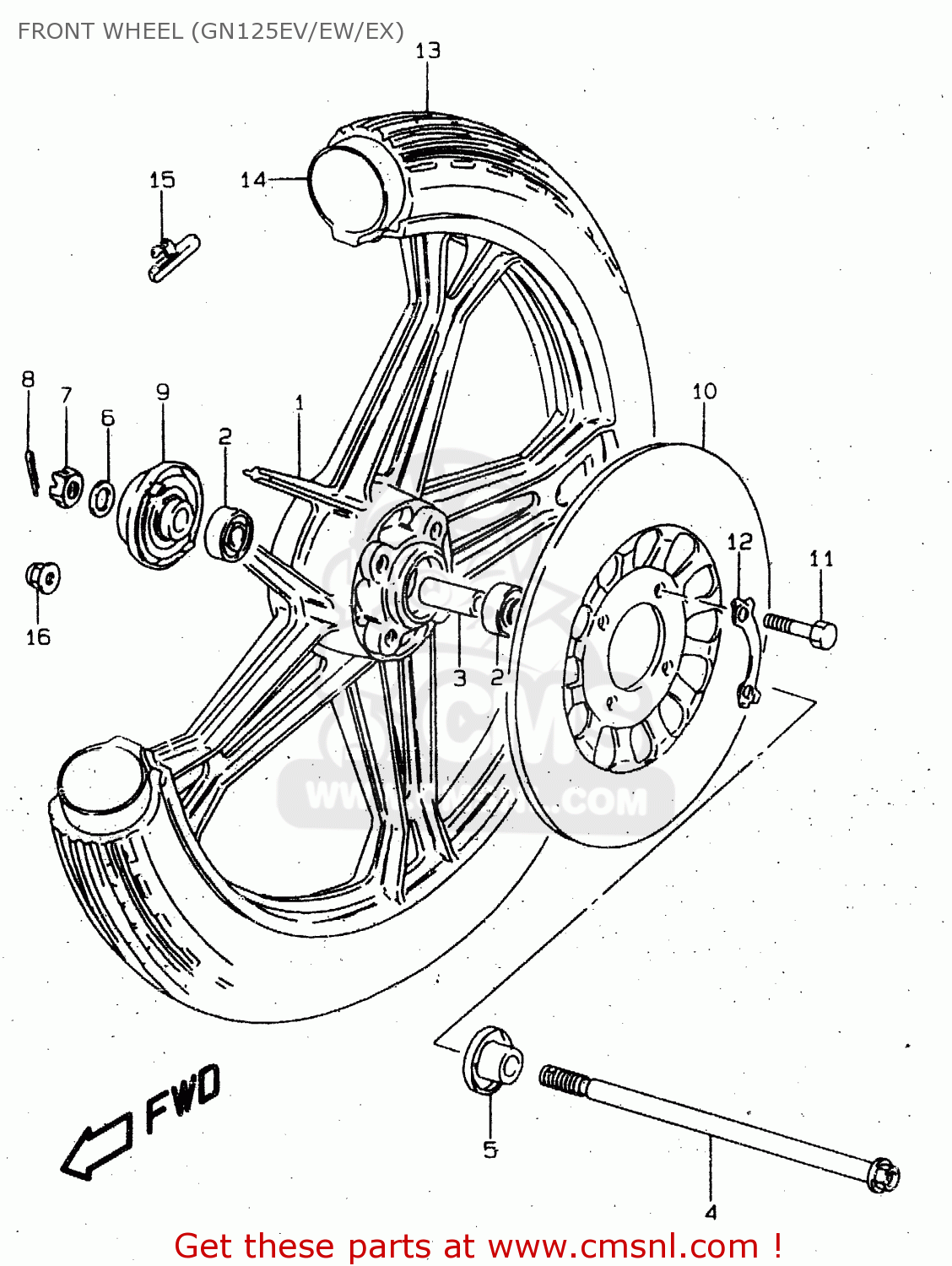

Front wheel (gn125ev/ew/ex) diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

5411105300291
ref: 1

WHEEL,FR(1.60X18)

€ 452.50

0812363017
ref: 2

BEARING

€ 13.50

0918012144
ref: 3

SPACER(12.5X19X52)

€ 4.50

5471141101
ref: 4
MODEL V/W

AXLE,FR

€ 42.00

5471105300
ref: 4
MODEL X

AXLE,FR

€ 21.50

5474011300
ref: 5

SPACER,FR AXLE,L

€ 13.50

0832201127
ref: 6
MODEL V/W

WASHER

€ 2.00

0914112003
ref: 7
MODEL V/W

NUT

€ 4.50

0411130308
ref: 8
MODEL V/W

COTTER PIN

€ 1.50

5460036400
ref: 9

BOX ASSY,SPEEDOMETER GEAR

€ 60.00

5921113001
ref: 10

DISC,FR BRAKE

€ 186.50

0910008140
ref: 11

BOLT(8X25)

€ 2.00

0916908019
ref: 12

WASHER

€ 2.00

5510012B00
ref: 13

TIRE,FR(2.75-18)

€ 201.00

5520011601
ref: 14

TUBE,INNER

€ 24.50

5541147002
ref: 15

BALANCER,WHEEL NO.1(20G)

€ 4.00

5541347002
ref: 15

BALANCER,WHEEL NO.3.10

€ 6.50

0831931128
ref: 16
MODEL X

NUT 12MM

€ 4.00
