FRONT DAMPER

GN125 1998 (W) (E02 E04 E18 E21 E22)

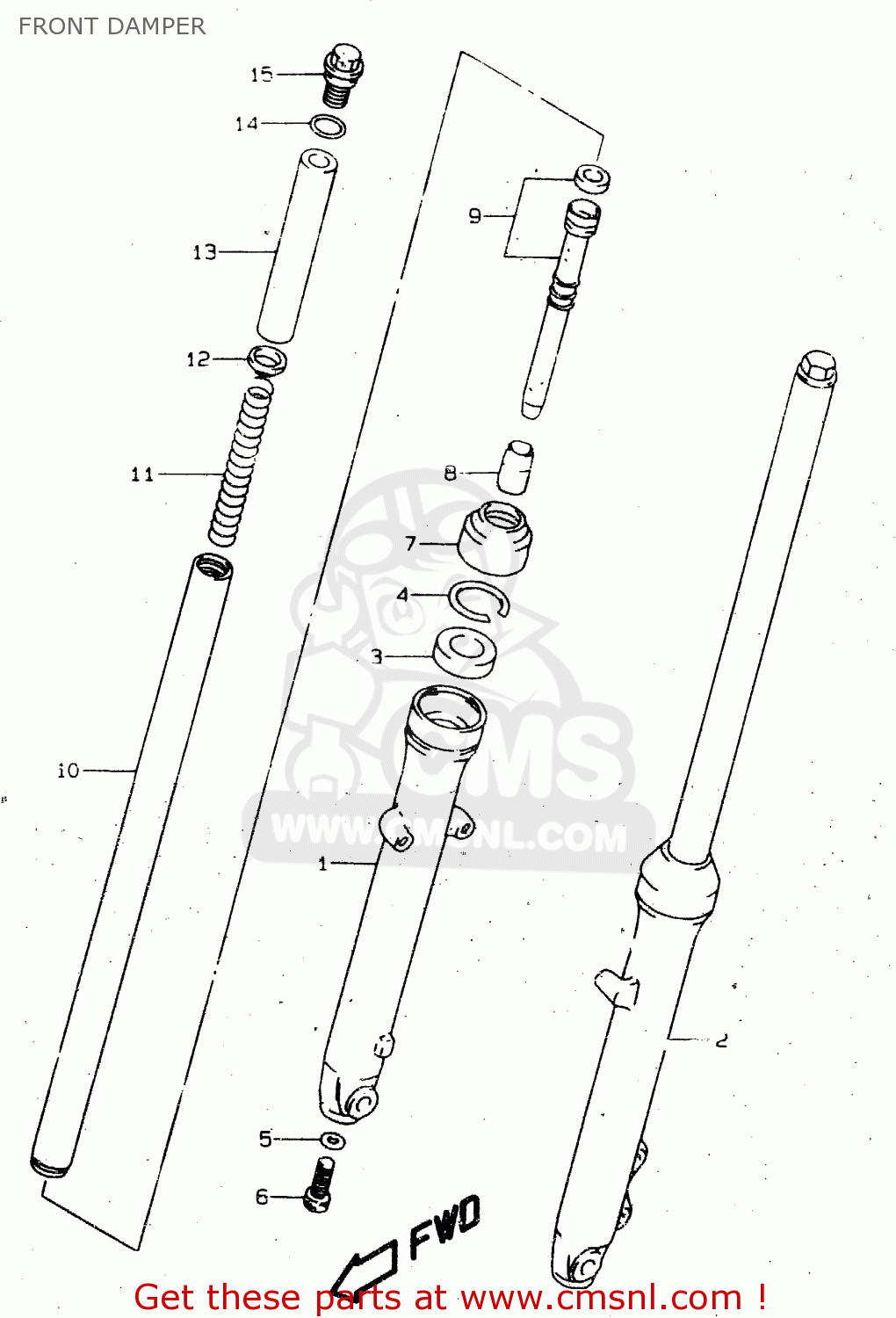

Front damper diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

FRONT DAMPER GN125 1998 (W) (E02 E04 E18 E21 E22)

FRONT DAMPER GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

0

5110305301
ref: 0

DAMPER ASSY,FR FORK,R

€ 329.00

0

5110405301
ref: 0

DAMPER ASSY,FR FORK,L

€ 374.00

1

5113005300
ref: 1

TUBE,OUTER,R

€ 140.50

2

5114005300
ref: 2

TUBE,OUTER,L

€ 154.50

3

5115305300
ref: 3

SEAL,OIL

€ 9.00

4

5115641603
ref: 4

RING,SNAP

€ 7.50

5

5114841310
ref: 5

GASKET (NAS)

€ 2.50

6

5114716510
ref: 6

BOLT,FORK CYLINDER(10X25)

€ 3.50

7

5117341603
ref: 7

SEAL,DUST

€ 6.00

8

5119536220
ref: 8

PIECE,OIL LOCK

€ 11.50

9

5114605300
ref: 9

CYLINDER

€ 35.00

10

5111005300
ref: 10

TUBE,INNER

€ 257.50

11

5117105300
ref: 11

SPRING

€ 24.50

12

5117218630
ref: 12

GUIDE,SPRING COVER

€ 5.50

13

5117605300
ref: 13

SPACER

€ 10.00

14

5118129400
ref: 14

O RING

€ 2.50

15

5135141603
ref: 15

CAP

€ 11.00
