HANDLE SWITCH

GN125 1998 (W) (E02 E04 E18 E21 E22)

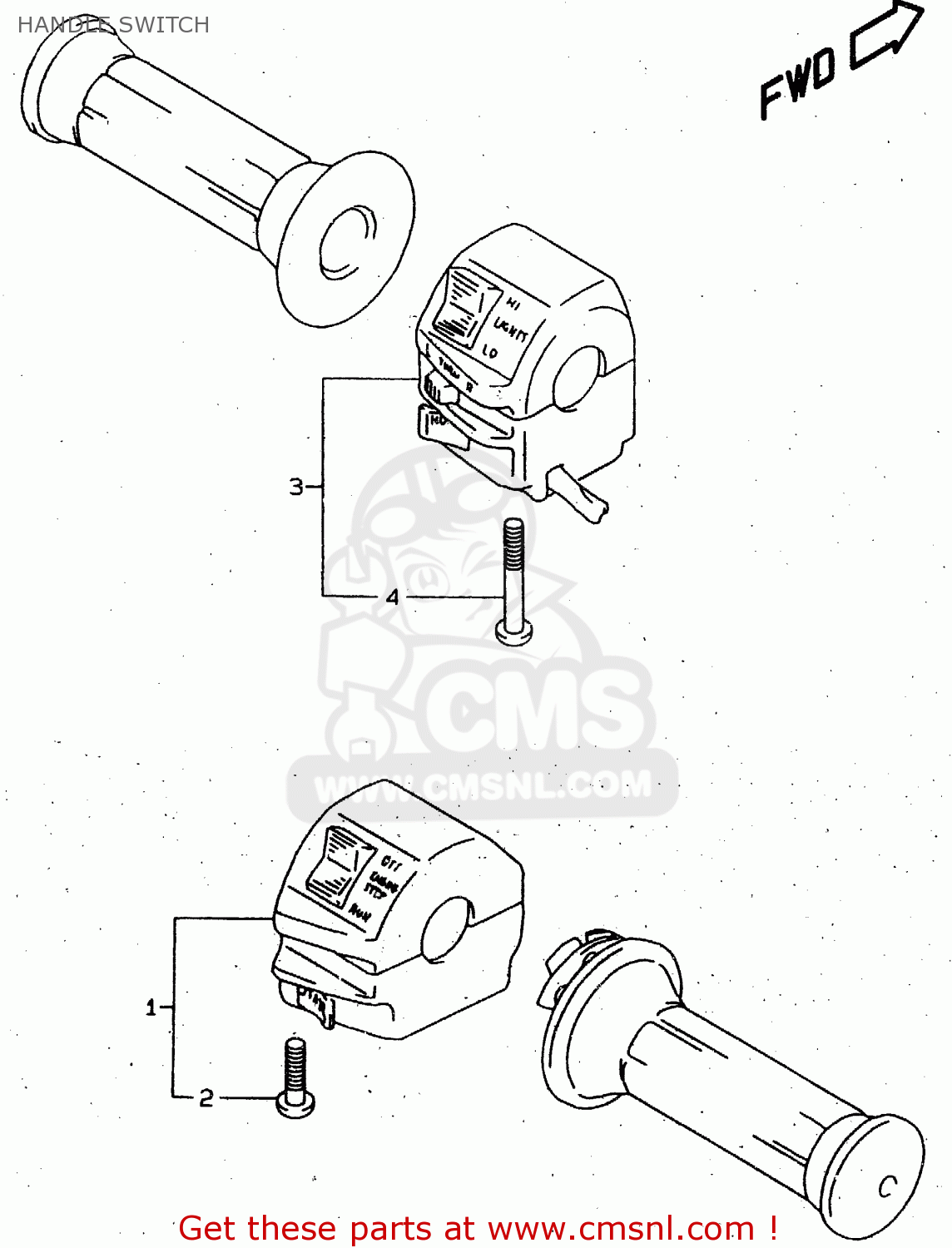

Handle switch diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

HANDLE SWITCH GN125 1998 (W) (E02 E04 E18 E21 E22)

HANDLE SWITCH GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

3720045C03
ref: 1
GN125V/W

SWITCH ASSY,HANDLE,R

€ 129.00

1

3720045C12
ref: 1
GN125EV/EW

SWITCH ASSY,HANDLE,R

€ 92.50

2

0211205453
ref: 2

SCREW

€ 4.00

3

3740006B12
ref: 3

SWITCH ASSEMBLY,HANDLE,LEFT

€ 102.00

4

0211205453
ref: 4

SCREW

€ 4.00
