HANDLE LEVER

GN125 1998 (W) (E02 E04 E18 E21 E22)

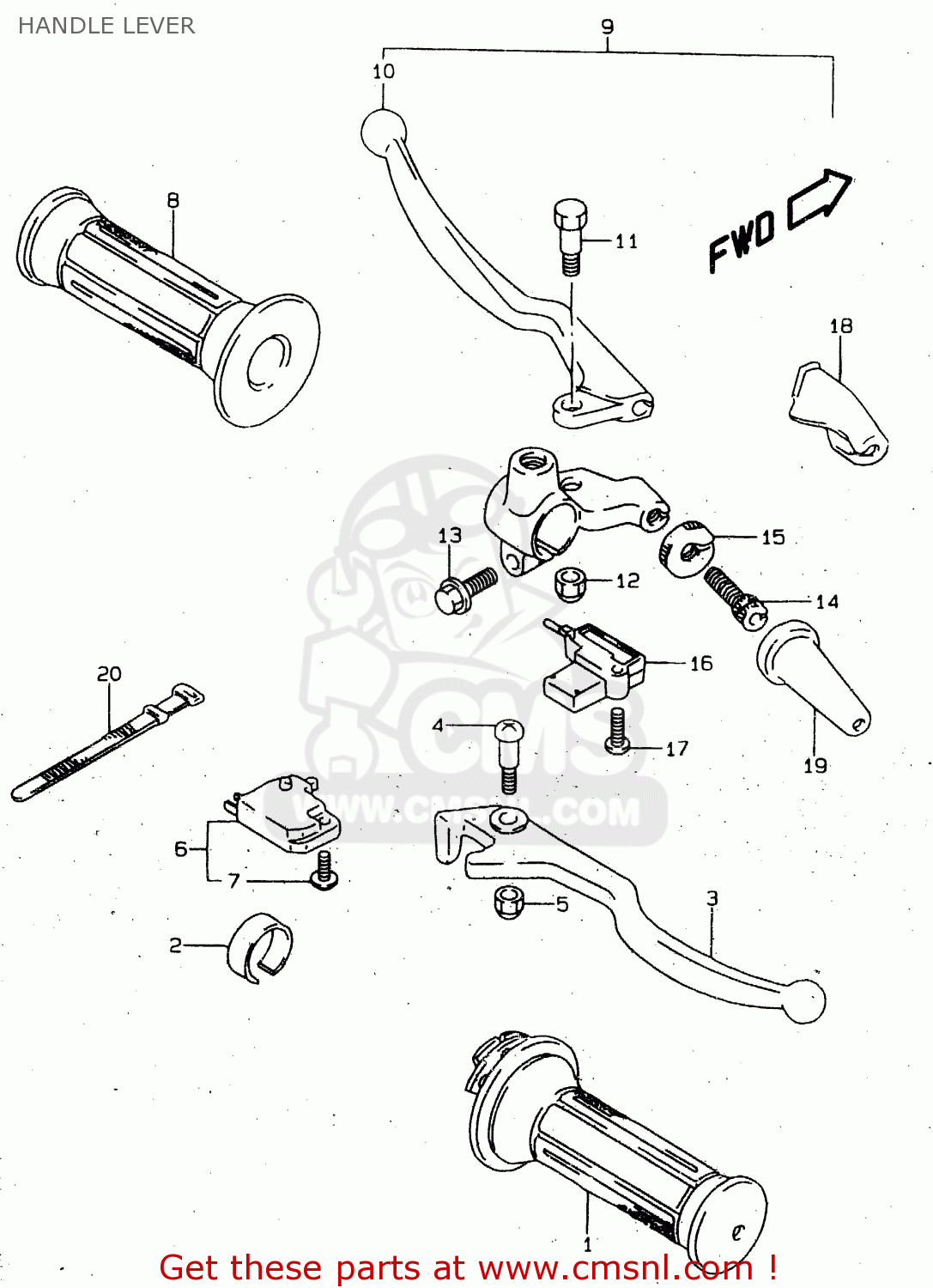

Handle lever diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

HANDLE LEVER GN125 1998 (W) (E02 E04 E18 E21 E22)
HANDLE LEVER GN125 1998 (W) (E02 E04 E18 E21 E22)
HANDLE LEVER GN125 1998 (W) (E02 E04 E18 E21 E22)
prices are in EUR
ref
part #
description
quantity
1
5711034300
ref: 1
GRIP,THROTTLE
5711034300
€ 24.50
2
5611505300
ref: 2
SPACER,HANDLE SWITCH,R
€ 6.00
3
5742113001
ref: 3
LEVER,BRAKE
5742113001
€ 18.00
4
5743113030
ref: 4
SCREW,BRAKE LEVER
5743113030
€ 6.50
5
0831921063
ref: 5
NUT
0831921063
€ 2.50
6
5746017C00
ref: 6
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
7
5746517C00
ref: 7
SCREW
5746517C00
€ 1.50
8
5721134300
ref: 8
GRIP,L
5721134300
€ 10.00
9
5750005390
ref: 9
LEVER ASSY,CLUTCH
5750005390
€ 53.00
10
5762005390
ref: 10
LEVER,CLUTCH
5762005390
€ 65.50
11
5743145C00
ref: 11
BOLT,LEVER SET
5743145C00
€ 10.50
12
5743309F00
ref: 12
NUT,LEVER PIVOT
5743309F00
€ 2.50
13
0154706203
ref: 13
SCREW
0154706203
€ 2.50
14
5744145C00
ref: 14
ADJUSTER,WIRE
5744145C00
€ 8.50
15
5744245C00
ref: 15
NUT,LOCK
5744245C00
€ 7.50
16
5756005A00
ref: 16
SWITCH,CLUTCH
5756005A00
€ 11.00
17
0212203208
ref: 17
SCREW
0212203208
€ 2.00
18
5766131000
ref: 18
COVER,CLUTCH LEVER
5766131000
€ 5.50
19
5827331000
ref: 19
BOOT,CLUTCH CABLE
5827331000
€ 2.50
20
0940712402
ref: 20
CLAMP(L:120)
0940712402
€ 3.00
