CARRIER

GN125 1998 (W) (E02 E04 E18 E21 E22)

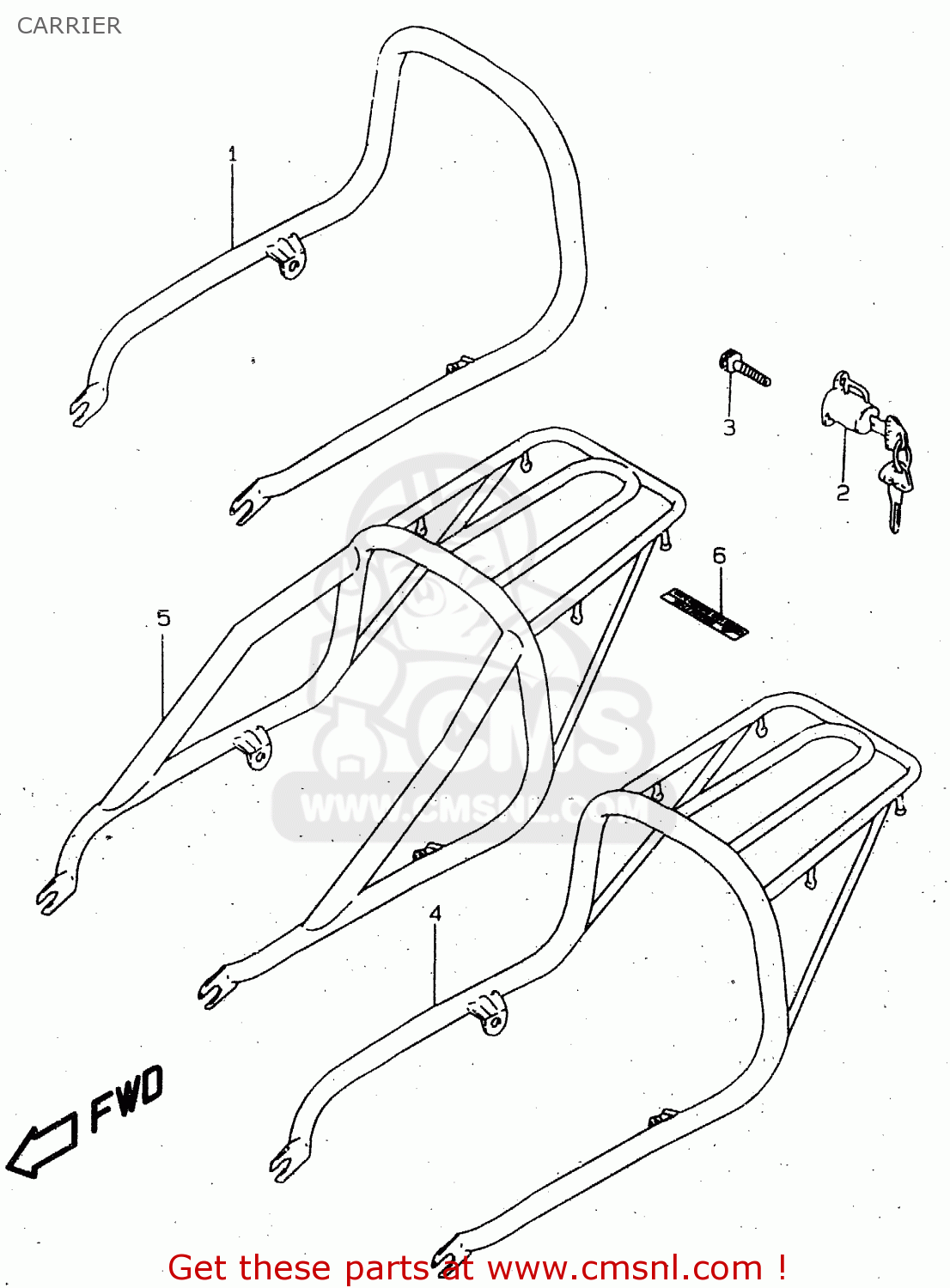

Carrier diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

CARRIER GN125 1998 (W) (E02 E04 E18 E21 E22)

CARRIER GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

4621005300
ref: 1

HANDLE,PILLION RIDER

€ 686.00

2

9570037810
ref: 2

LOCK SET,HELMET

€ 36.00

3

0913906075
ref: 3

SCREW(6X12)

€ 3.00

4

4631005300
ref: 4
OPT

CARRIER

€ 161.50

5

4630005860
ref: 5
OPT E22

CARRIER SET,SUPPORT

€ 161.50

6

6839144AD0
ref: 6
OPT E22

LABEL,RR CARRIER

€ 4.50
