FUEL COCK

GN125 1998 (W) (E02 E04 E18 E21 E22)

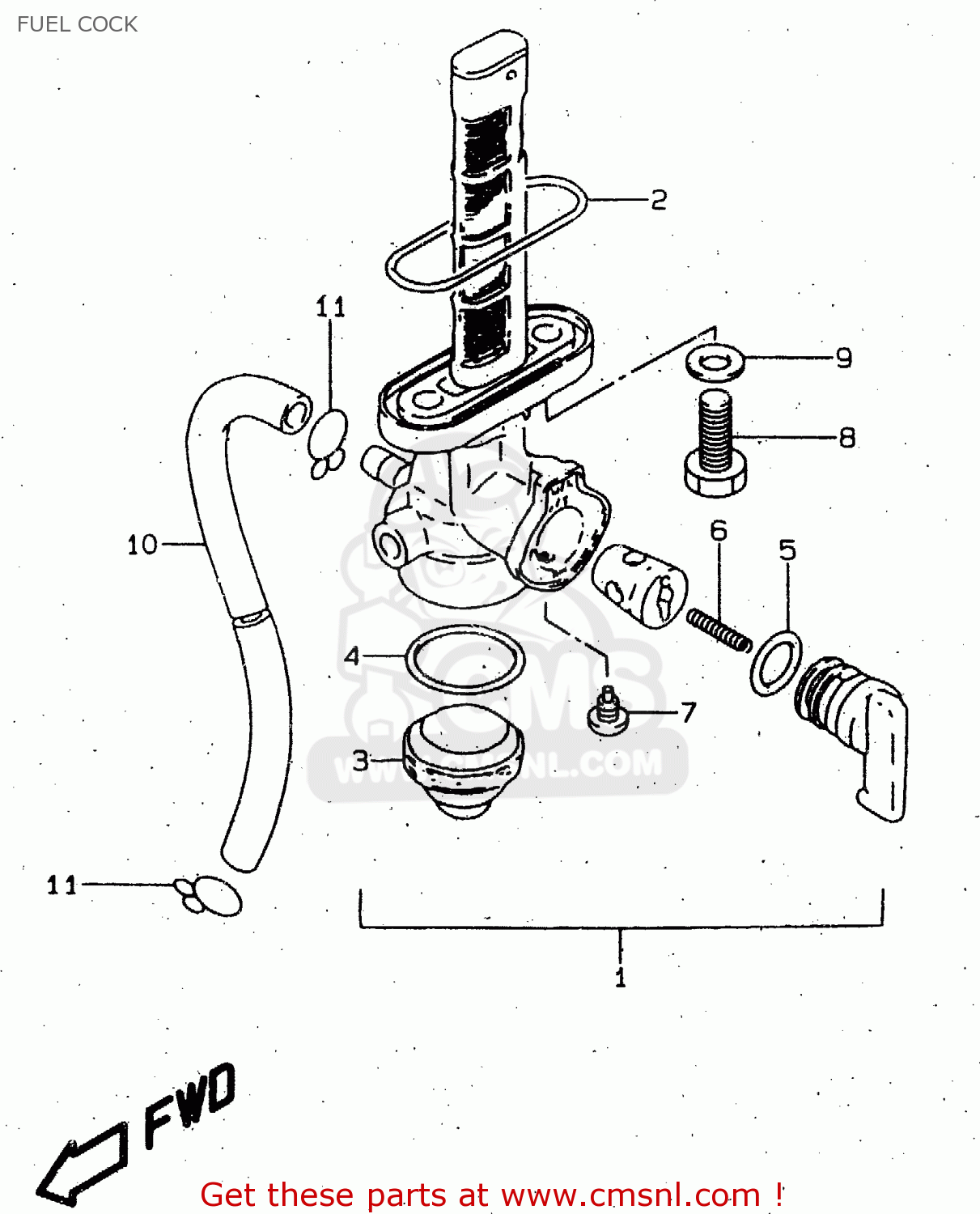

Fuel cock diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

FUEL COCK GN125 1998 (W) (E02 E04 E18 E21 E22)

FUEL COCK GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

4430022075
ref: 1
MODEL V/W

COCK ASSEMBLY,FUEL

€ 65.50

1

4430022080
ref: 1
MODEL X

COCK ASSY,FUEL

€ 64.00

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4435312C01
ref: 5

O RING,LEVER

€ 7.50

6

4435732470
ref: 6

SPRING

€ 2.00

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806057
ref: 8

BOLT(6X20)

€ 2.00

9

0916806026
ref: 9

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

10

0935250823600
ref: 10

HOSE(5X8.2X600)

€ 13.00

11

0940108401
ref: 11

CLIP

€ 1.50
