REAR WHEEL (GN125V/W/X)

GN125 1998 (W) (E02 E04 E18 E21 E22)

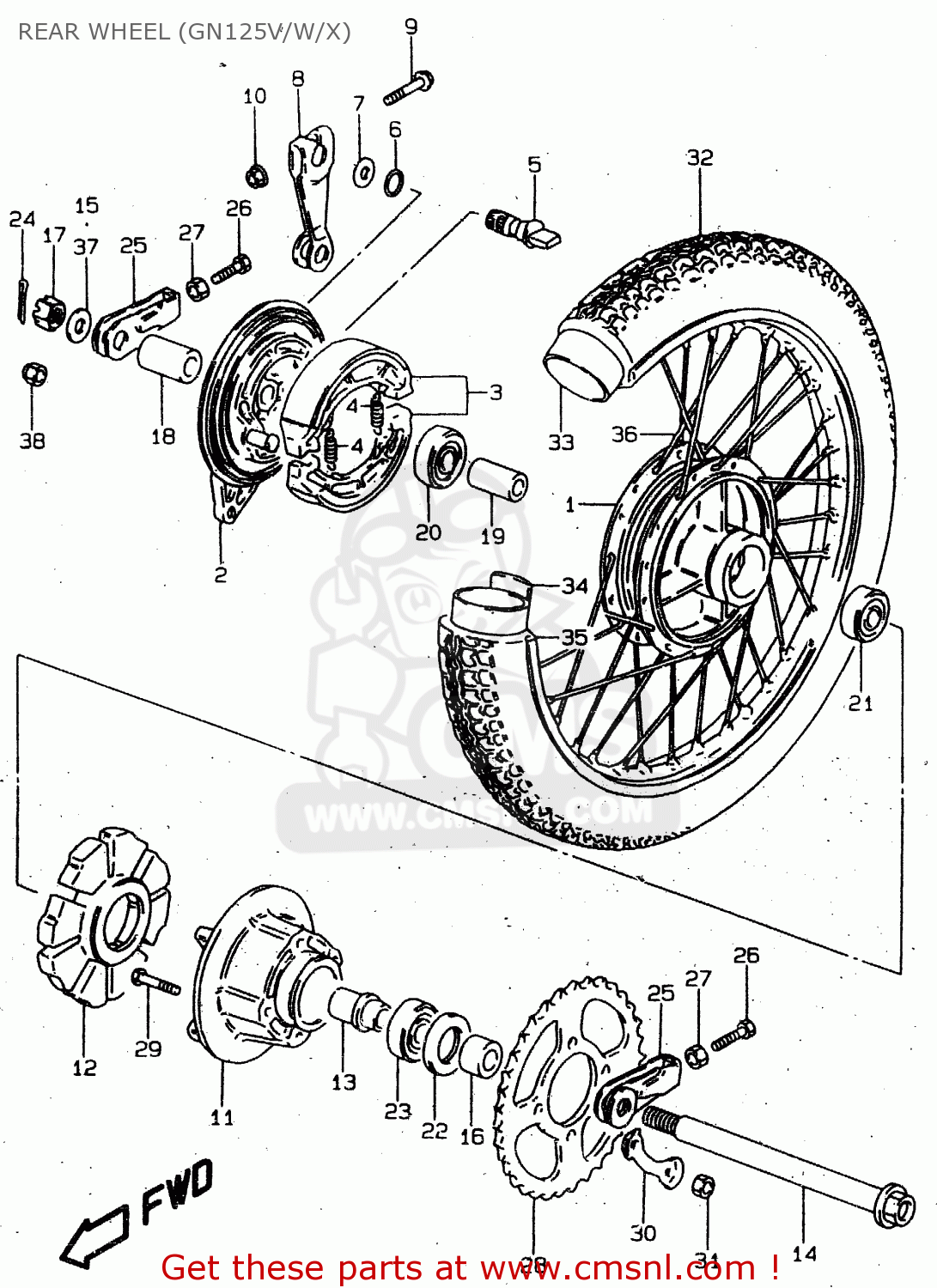

Rear wheel (gn125v/w/x) diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

REAR WHEEL (GN125V/W/X) GN125 1998 (W) (E02 E04 E18 E21 E22)
REAR WHEEL (GN125V/W/X) GN125 1998 (W) (E02 E04 E18 E21 E22)
REAR WHEEL (GN125V/W/X) GN125 1998 (W) (E02 E04 E18 E21 E22)
prices are in EUR
ref
part #
description
quantity
1
6411007005
ref: 1
HUB,RR WHEEL
€ 234.00
2
6421039115
ref: 2
PANEL,RR BRAKE ANCHOR
6421039115
€ 125.00
3
5440007870
ref: 3
SHOE SET,BRAKE (NAS)
5440007870
€ 35.00
4
0944307001
ref: 4
SPRING(L:34)
0944307001
€ 2.50
5
5444129305
ref: 5
CAM,BRAKE
5444129305
€ 13.00
6
0928014011
ref: 6
O RING(D:2.5,ID:13.8)
0928014011
€ 3.50
7
0916014055
ref: 7
WASHER(14.5X22X1.6)
0916014055
€ 2.50
8
6445148000
ref: 8
LEVER,RR BRAKE CAM
6445148000
€ 32.50
9
0155006353
ref: 9
BOLT
0155006353
€ 2.50
10
0831610063
ref: 10
NUT
0831610063
€ 2.50
11
6461005301
ref: 11
DRUM,RR SPROCKET MOUNTING
€ 61.00
12
6465107001
ref: 12
ABSORBER ASSY,HUB SHOCK
6465107001
€ 16.00
13
6473305301
ref: 13
RETAINER,RR SPROCKET DRUM
6473305301
€ 6.50
14
6471148001
ref: 14
MODEL V/W E1,E2,E4,E
AXLE,RR
6471148001
€ 35.50
14
6471105310
ref: 14
E18,E22
AXLE,RR
€ 25.00
14
6471105310
ref: 14
MODEL X, E2,E4,E21,E
AXLE,RR
€ 25.00
15
0832201143
ref: 15
MODEL V/W E1,E2,E4,E
WASHER
0832201143
€ 2.00
16
0918015042
ref: 16
SPACER(15X28X19)
0918015042
€ 5.50
17
0914114001
ref: 17
MODEL V/W E1,E2,E4,E
NUT
0914114001
€ 4.50
18
0918015002
ref: 18
SPACER(15.2X26X33)
0918015002
€ 5.00
19
0918015011
ref: 19
SPACER(15.3X21.7X63)
0918015011
€ 7.50
20
0814463027
ref: 20
BEARING
0814463027
€ 17.50
21
0814362027
ref: 21
BEARING
0814362027
€ 12.50
22
0928528001
ref: 22
SEAL,OIL(28X47X7)
0928528001
€ 11.50
23
0926220069
ref: 23
BEARING(20X47X14)
0926220069
€ 28.00
24
0411130308
ref: 24
MODEL V/W E1,E2,E4,E
COTTER PIN
0411130308
€ 1.50
25
6141036002
ref: 25
ADJUSTER,CHAIN
6141036002
€ 11.50
26
0910408034
ref: 26
BOLT(8X50)
0910408034
€ 3.00
27
0831000087
ref: 27
NUT
0831000087
€ 2.00
28
6451112B02
ref: 28
E1,E2,E18,E21,E71,P9
SPROCKET,RR(NT:42)
6451112B02
€ 57.00
28
6451112B11
ref: 28
E4,E22
SPROCKET,RR(NT:41)
6451112B11
€ 65.00
29
0911908043
ref: 29
BOLT
0911908043
€ 2.00
30
0916908012
ref: 30
WASHER
0916908012
€ 2.00
31
0831000083
ref: 31
NUT
0831000083
€ 1.50
32
6510005320
ref: 32
TIRE,RR(3.50-16 4PR)
€ 0.00
33
6520026700
ref: 33
TUBE
€ 29.00
34
6526137300
ref: 34
PROTECTOR,INNER TUBE
6526137300
€ 4.50
35
6531105300
ref: 35
RIM,RR WHEEL(185X16)
6531105300
€ 91.50
36
6532038301
ref: 36
SPOKE ASSY,RR WHEEL
6532038301
€ 37.00
37
0832201143
ref: 37
E18,E22
WASHER
0832201143
€ 2.00
37
0832201143
ref: 37
MODEL X, E2,E4,E21,E
WASHER
0832201143
€ 2.00
38
0915914008
ref: 38
E18,E22
NUT
0915914008
€ 5.00
38
0915914008
ref: 38
MODEL X, E2,E4,E21,E
NUT
0915914008
€ 5.00
