TRANSMISSION
GN125 1998 (W) (E02 E04 E18 E21 E22)

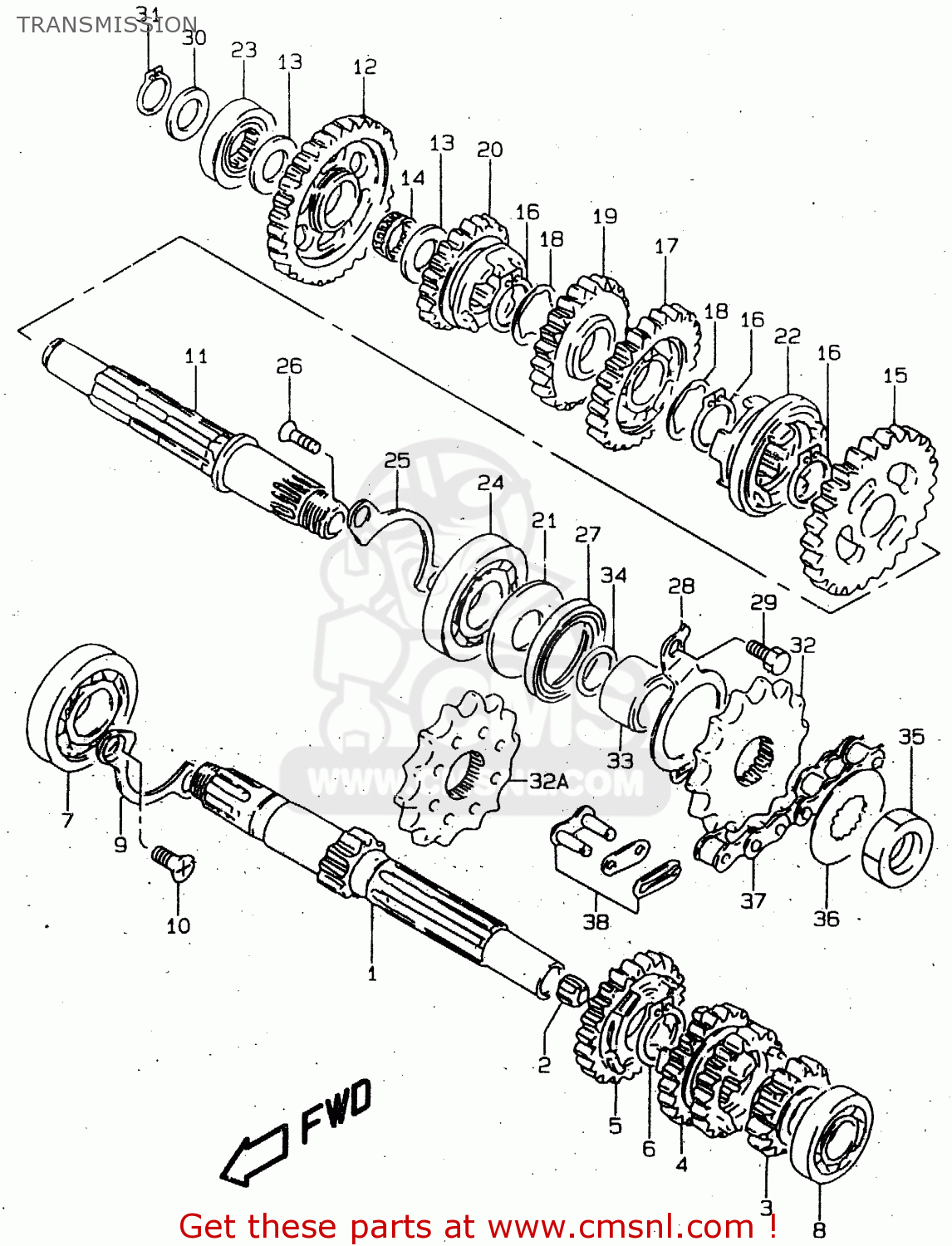

Transmission diagram GN125 1998 (W) (E02 E04 E18 E21 E22)
TRANSMISSION GN125 1998 (W) (E02 E04 E18 E21 E22)
×
prices are in EUR
ref
part #
description
quantity
1
2412005810
ref: 1
SHAFT,COUNTER (NT:11)
€ 97.00
2
2412538201
ref: 2
BUSH
€ 3.50
3
2422105301
ref: 3
<-24221-05300
GEAR,2ND DRIVE(NT:14)
€ 30.00
4
2423105203
ref: 4
<-24231-05202
GEAR,3RD & 4TH DRIVEN(NT:19/21
€ 61.50
5
2425105203
ref: 5
<-24251-05202
GEAR,FIFTH DRIVE (NT:23)
€ 54.50
6
0938020009
ref: 6
CIRCLIP
€ 2.00
7
0926220069
ref: 7
BEARING(20X47X14)
€ 28.00
8
0812360027
ref: 8
BEARING
€ 16.00
9
2474105200
ref: 9
RETAINER,DRIVE SHAFT BEARING
€ 3.50
10
0212206123
ref: 10
SCREW
€ 3.00
11
2413005300
ref: 11
SHAFT,DRIVE
€ 93.00
11
2413005310
ref: 11
E4,E22
SHAFT,DRIVE
€ 109.50
12
2431105201
ref: 12
<-24311-05200
GEAR,FIRST DRIVEN (NT:33)
€ 53.00
13
0821115251
ref: 13
WASHER
€ 2.00
14
0926315023
ref: 14
BEARING(15X19X7.8)
€ 10.50
15
2432005202
ref: 15
<-24320-05201
GEAR,2ND DRIVEN(NT:26)
€ 40.50
16
0938020009
ref: 16
CIRCLIP
€ 2.00
17
2433105203
ref: 17
<-24331-05201
GEAR,3RD DRIVEN(NT:26)
€ 50.00
18
0916720011
ref: 18
WASHER,LOCK
€ 2.50
19
2434105201
ref: 19
MODEL V
GEAR,FOURTH DRIVEN
€ 50.00
19
2434105203
ref: 19
MODEL W/X
GEAR,4TH DRIVEN(NT:23)
€ 50.00
20
2435105201
ref: 20
MODEL V
GEAR,FIFTH DRIVEN
€ 47.00
20
2435105202
ref: 20
MODEL W/X
GEAR,5TH DRIVEN(NT:21)
€ 47.00
21
2435905200
ref: 21
WASHER,OIL SEALING
€ 4.50
22
2442105300
ref: 22
WHEEL,SLIDING DOG
€ 33.00
23
0926315024
ref: 23
BEARING(15X33X12)
€ 50.00
24
0926220069
ref: 24
BEARING(20X47X14)
€ 28.00
25
2474105200
ref: 25
RETAINER,DRIVE SHAFT BEARING
€ 3.50
26
0212206123
ref: 26
SCREW
€ 3.00
27
0928327010
ref: 27
SEAL,OIL(27X40X6)
€ 8.00
28
2475105201
ref: 28
MODEL V
PLATE,DRIVESHAFT OIL
€ 3.00
28
2475105210
ref: 28
MODEL W/X
RETAINER,DRIVE SHAFT OIL SEAL
€ 3.00
29
0150006103
ref: 29
BOLT
€ 2.00
30
0918115111
ref: 30
SHIM(15X20X1)
€ 2.50
31
0833131156
ref: 31
CIRCLIP
€ 2.00
32
2751141310
ref: 32
SPROCKET,ENGINE
€ 19.00
32A
2751041730
ref: 32A
E4,E22
SPROCKET,ENGINE(NT:14)
€ 56.00
33
2753105200
ref: 33
SPACER
€ 13.50
34
0928019005
ref: 34
O RING(D:2.4,ID:19)
€ 2.00
35
0914016017
ref: 35
NUT
€ 4.00
36
0916720012
ref: 36
WASHER,LOCK
€ 2.50
36
0916720006
ref: 36
MODEL V/W E4,E22
WASHER,LOCK
€ 3.00
36
0916720030
ref: 36
MODEL X E4,E22
WASHER
€ 2.50
37
2760029B20124
ref: 37
L:124->114
CHAIN,DRIVE
€ 128.00
38
2762040220
ref: 38
JOINT(RK)
€ 7.00
up
all assemblies
