STAND

GN125 1998 (W) (E02 E04 E18 E21 E22)

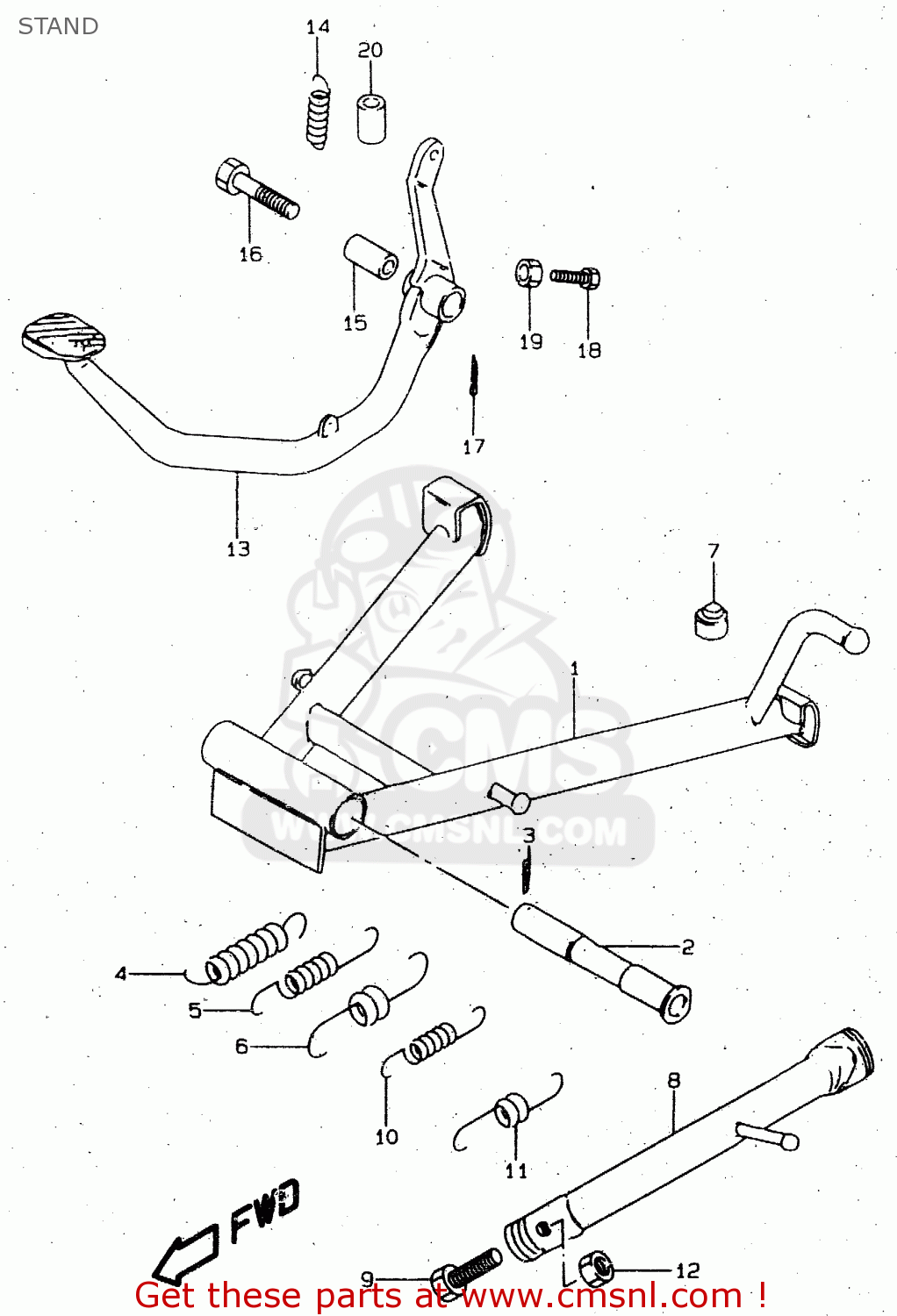

Stand diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

STAND GN125 1998 (W) (E02 E04 E18 E21 E22)

STAND GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

4210005303
ref: 1

STAND,CTR

€ 70.50

2

4221136504
ref: 2

SHAFT,CTR STAND

€ 20.00

3

0411130308
ref: 3

COTTER PIN

€ 1.50

4

0944318006
ref: 4

SPRING

€ 5.50

5

0944315013
ref: 5
E18,E22

SPRING

€ 22.50

6

0944322003
ref: 6
E18,E22

SPRING

€ 7.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

42310053E0
ref: 8

STAND,PROP

€ 43.50

9

0911110047
ref: 9

BOLT(10X30)

€ 4.50

10

0944312025
ref: 10

SPRING

€ 18.50

11

0944319006
ref: 11

SPRING

€ 18.00

12

0915910027
ref: 12
MODEL V/W

NUT

€ 3.00

12

0831921103
ref: 12
MODEL X

NUT

€ 2.00

13

4311005301
ref: 13

PEDAL,BRAKE

€ 37.00

14

0944314015
ref: 14

SPRING

€ 3.00

15

4323105302
ref: 15

SPACER,BRAKE PEDAL BOSS

€ 7.00

16

0911610121
ref: 16

BOLT(10X52)

€ 4.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50

18

0910006009
ref: 18

BOLT(6X23)

€ 1.50

19

0831000063
ref: 19

NUT 6MM

€ 2.00

20

4326117C00
ref: 20

TUBE,BRAKE SPRING GUIDE

€ 5.50
