FRAME COVER (MODEL X)

GN125 1998 (W) (E02 E04 E18 E21 E22)

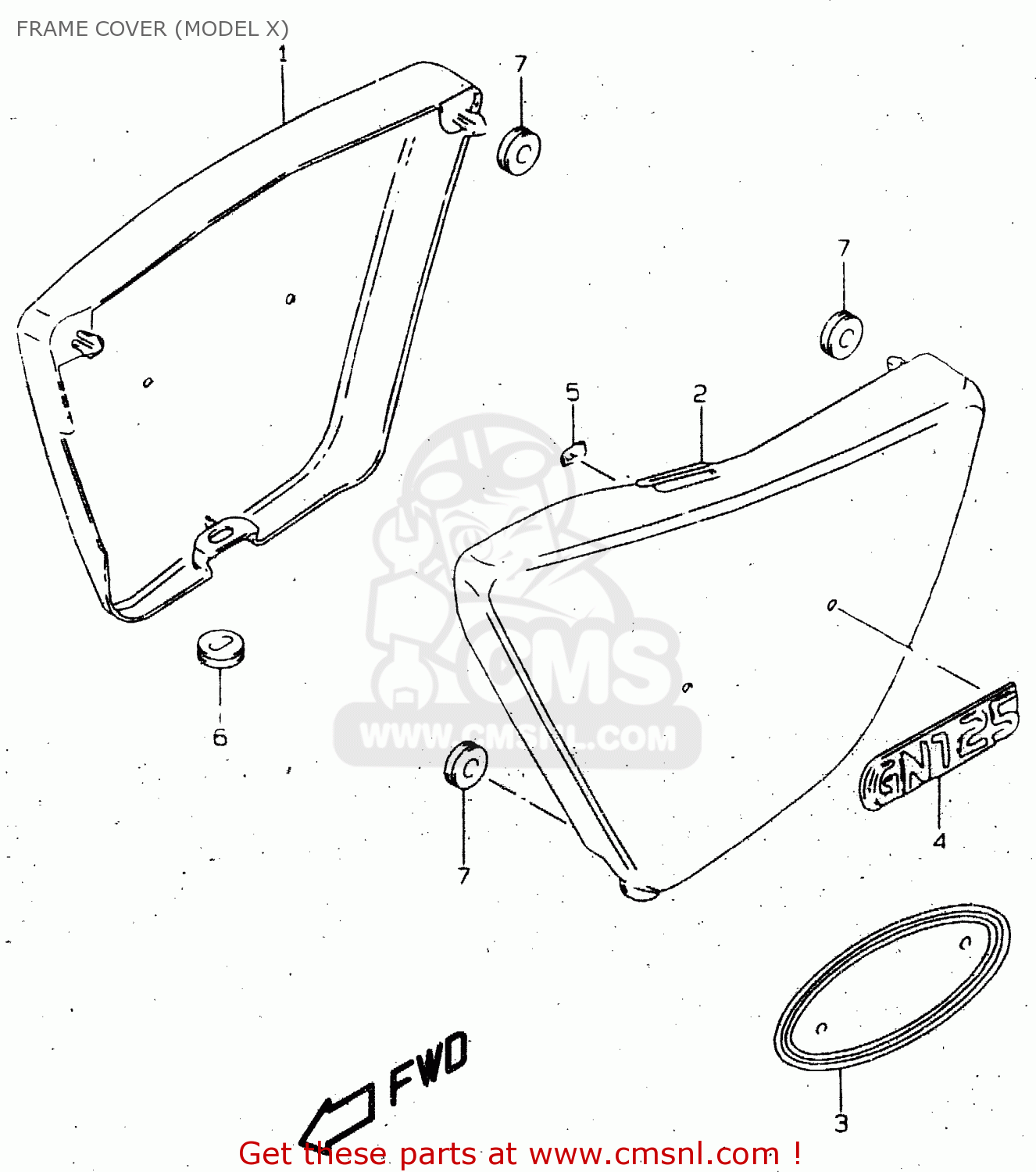

Frame cover (model x) diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

FRAME COVER (MODEL X) GN125 1998 (W) (E02 E04 E18 E21 E22)

FRAME COVER (MODEL X) GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

471110530119A
ref: 1

COVER,FRAME,R(RED)

€ 63.00

1

471110530133J
ref: 1

COVER,FRAME,R(BLACK)

€ 63.00

1

4711105301Y98
ref: 1

COVER,FRAME,R(GREEN)

€ 53.50

1

4711105301Y4H
ref: 1

COVER, FRAME RH (SILVER)

€ 39.00

2

472110530119A
ref: 2

COVER,FRAME,L(RED)

€ 53.50

2

472110530133J
ref: 2

COVER,FRAME,L

€ 65.00

2

4721105301Y98
ref: 2

COVER,FRAME,L(GREEN)

€ 45.00

2

4721105301Y4H
ref: 2

COVER,FRAME,L(SILVER)

€ 53.50

3

6813538300L7Z
ref: 3
FOR 19A,33J,Y98

TAPE,FRAME COVER

€ 14.00

3

6813538300L8A
ref: 3
FOR Y4H

TAPE,FRAME COVER

€ 14.00

4

6813105310
ref: 4

EMBLEM,FRAME COVER

€ 20.00

5

0914803003
ref: 5

NUT

€ 2.00

6

0932003004
ref: 6

CUSHION

€ 2.00

7

0932008018
ref: 7

CUSHION

€ 4.00
