HEADLAMP (E2,E71,P9)

GN125 1998 (W) (E02 E04 E18 E21 E22)

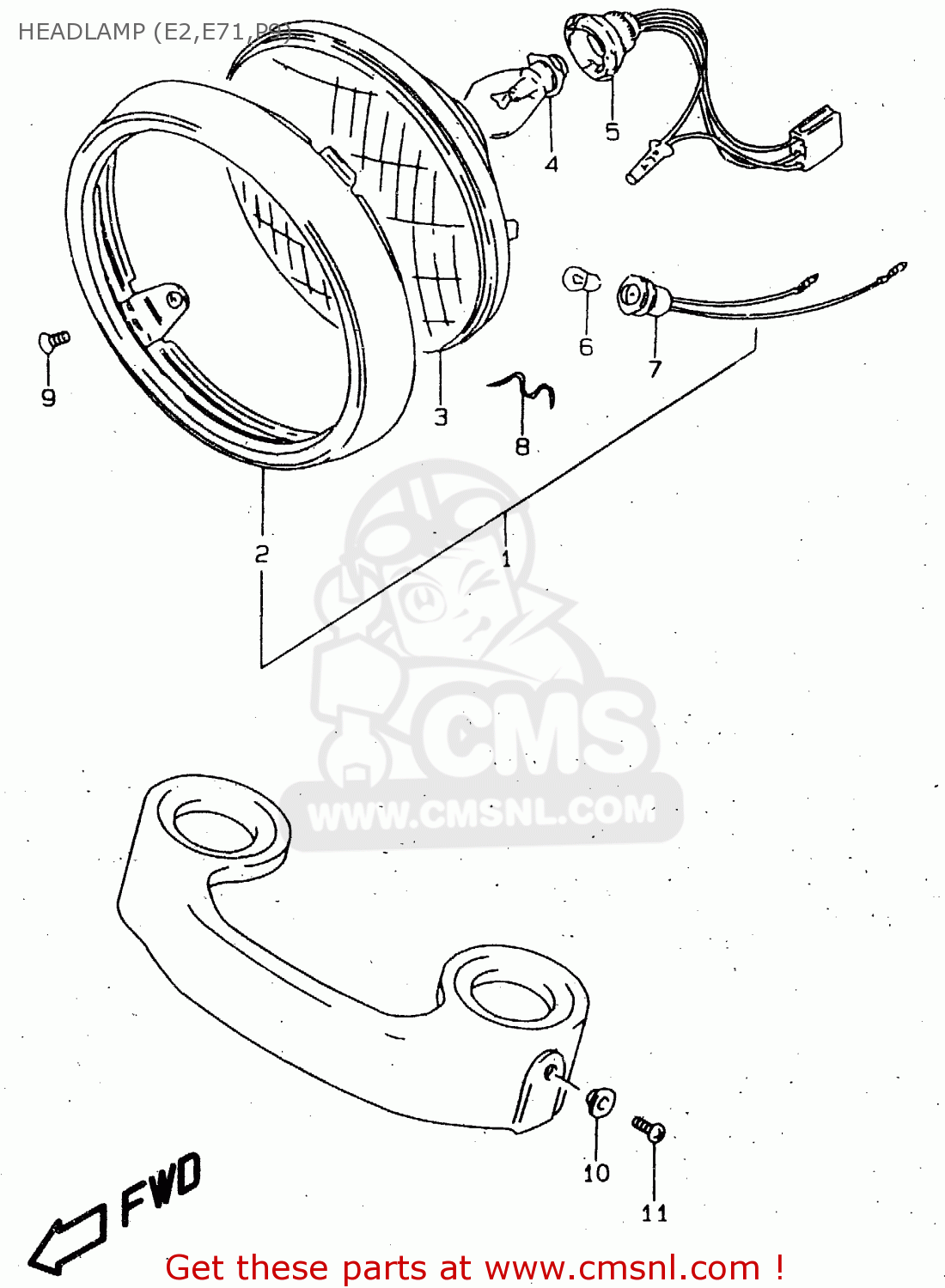

Headlamp (e2,e71,p9) diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

HEADLAMP (E2,E71,P9) GN125 1998 (W) (E02 E04 E18 E21 E22)

HEADLAMP (E2,E71,P9) GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

3510044270
ref: 1

HEADLAMP ASSY

€ 144.50

2

3511137350
ref: 2

RIM

€ 42.00

3

3512144270
ref: 3

LAMP UNIT

€ 55.00

4

0947112044
ref: 4

BULB

€ 8.50

5

3517144270
ref: 5

SOCKET

€ 34.50

6

0947112001
ref: 6

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

7

3611830500
ref: 7

SOCKET

€ 10.00

8

3517233630
ref: 8

SPRING

€ 4.00

9

0212205127
ref: 9

SCREW

€ 2.50

10

0916905008
ref: 10

WASHER

€ 3.00

11

0214205087
ref: 11

SCREW

€ 2.00
