CYLINDER

GN125 1998 (W) (E02 E04 E18 E21 E22)

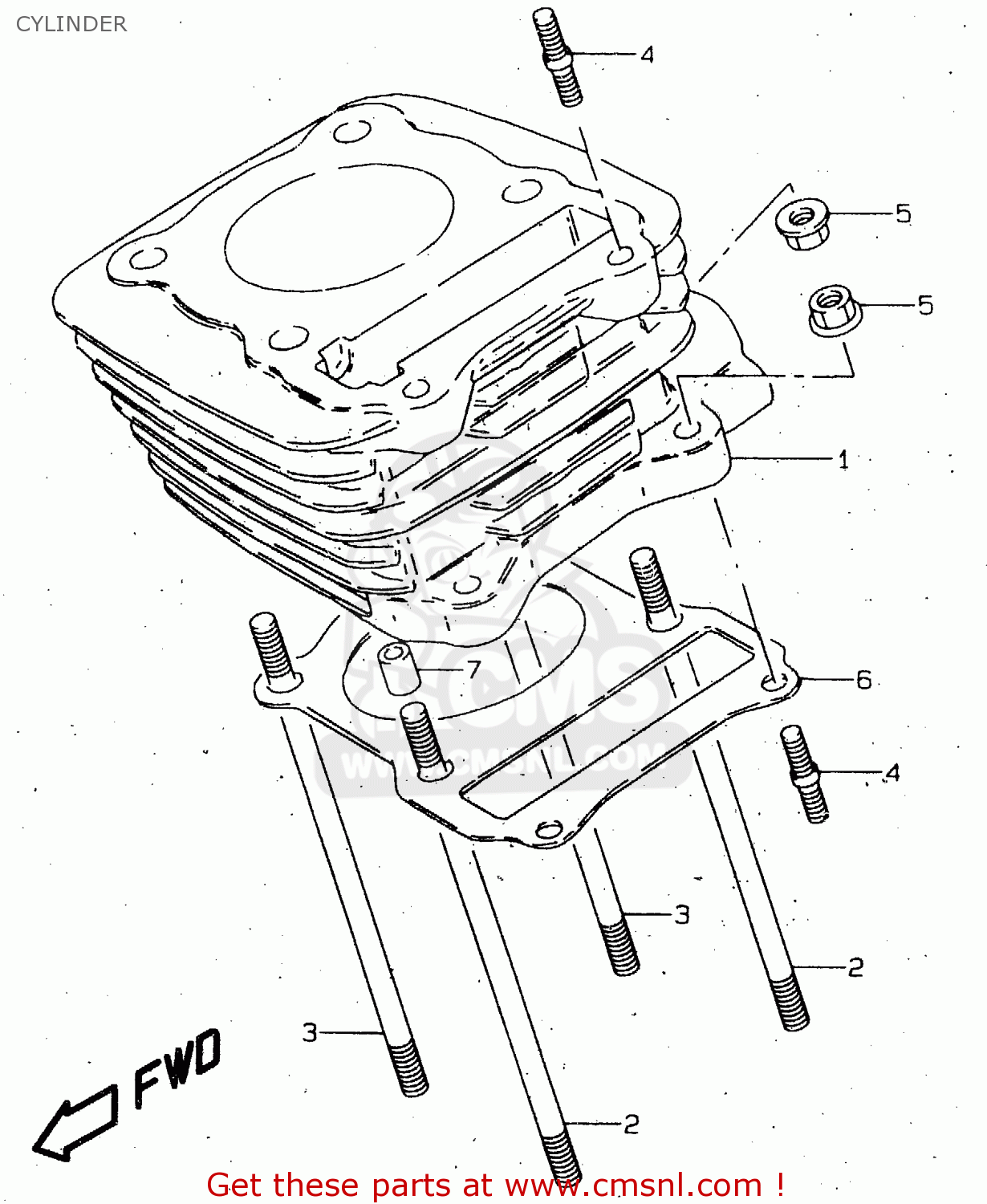

Cylinder diagram GN125 1998 (W) (E02 E04 E18 E21 E22)

CYLINDER GN125 1998 (W) (E02 E04 E18 E21 E22)

CYLINDER GN125 1998 (W) (E02 E04 E18 E21 E22)

prices are in EUR

ref

part #

description

quantity

1

11210052020F0
ref: 1

CYLINDER

€ 255.50

2

0910808062
ref: 2

BOLT,STUD

€ 4.50

3

0910808089
ref: 3

BOLT,STUD

€ 6.00

4

0142106257
ref: 4

BOLT,STUD

€ 2.50

5

0831610067
ref: 5

NUT

€ 2.00

6

1124105311
ref: 6

GASKET,CYLINDER (NAS)

€ 4.50

7

0421111149
ref: 7

PIN

€ 2.00
