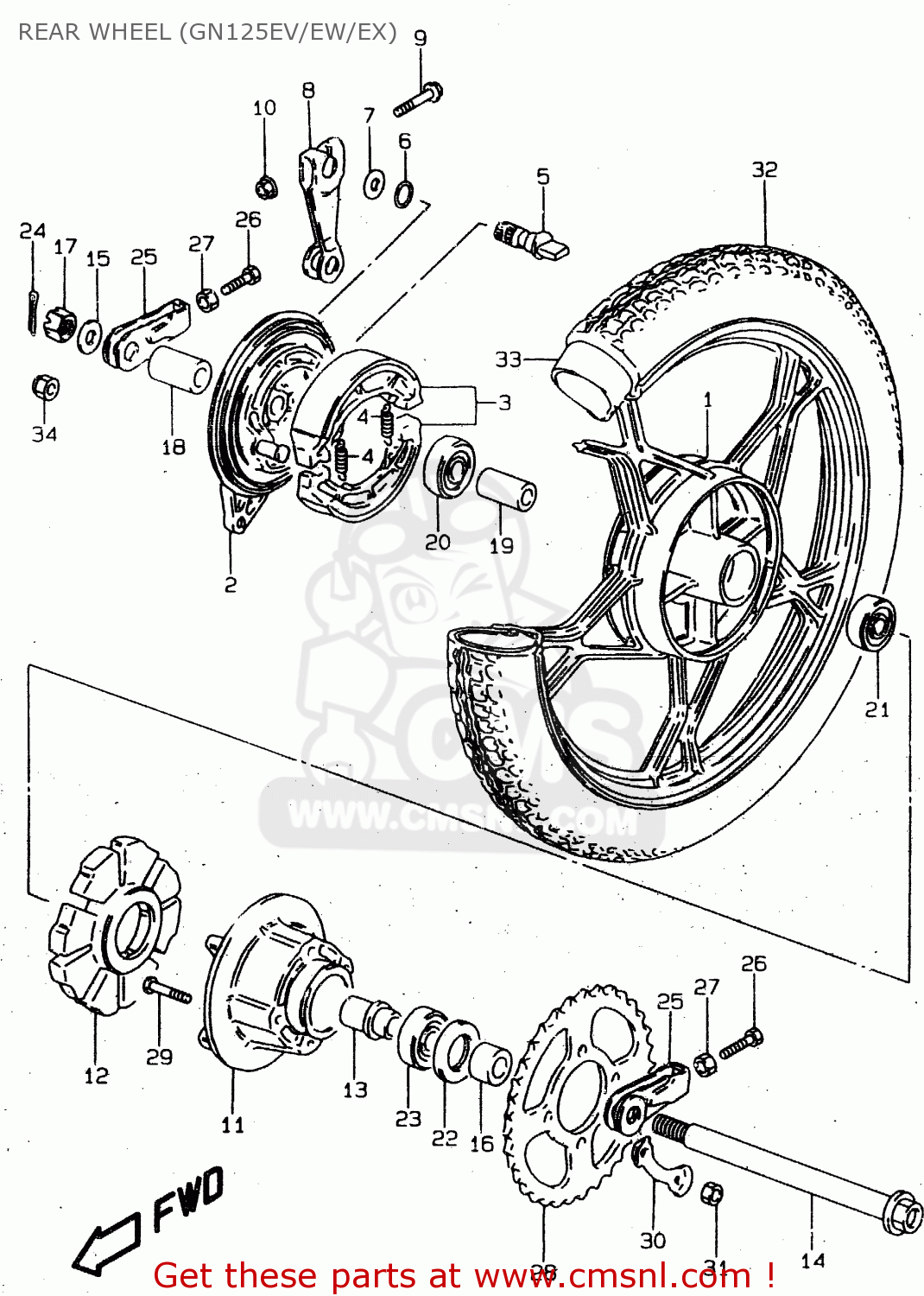

REAR WHEEL (GN125EV/EW/EX)

ref

part #

description

quantity

1

6415038300291
ref: 1

WHEEL,RR(2.15X10)

€ 532.50

2

6421039104
ref: 2

PANEL,RR BRAKE ANCHOR

€ 165.50

3

5440007870
ref: 3

SHOE SET,BRAKE (NAS)

€ 35.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129305
ref: 5

CAM,BRAKE

€ 13.00

6

0928014011
ref: 6

O RING(D:2.5,ID:13.8)

€ 3.50

7

0916014055
ref: 7

WASHER(14.5X22X1.6)

€ 2.50

8

6445148000
ref: 8

LEVER,RR BRAKE CAM

€ 32.50

9

0155006353
ref: 9

BOLT

€ 2.50

10

0831610063
ref: 10

NUT

€ 2.50

11

6461005301
ref: 11

DRUM,RR SPROCKET MOUNTING

€ 61.00

12

6465138300
ref: 12

ABSORBER,RR HUB SHOCK

€ 20.00

13

6473305301
ref: 13

RETAINER,RR SPROCKET DRUM

€ 6.50

14

6471148001
ref: 14
MODEL V/W

AXLE,RR

€ 35.50

14

6471105310
ref: 14
MODEL X

AXLE,RR

€ 25.00

15

0832201143
ref: 15

WASHER

€ 2.00

16

0918015042
ref: 16

SPACER(15X28X19)

€ 5.50

17

0914114001
ref: 17
MODEL V/W

NUT

€ 4.50

18

0918015002
ref: 18

SPACER(15.2X26X33)

€ 5.00

19

0918015011
ref: 19

SPACER(15.3X21.7X63)

€ 7.50

20

0814463027
ref: 20

BEARING

€ 17.50

21

0814362027
ref: 21

BEARING

€ 12.50

22

0928528001
ref: 22

SEAL,OIL(28X47X7)

€ 11.50

23

0926220069
ref: 23

BEARING(20X47X14)

€ 28.00

24

0411130308
ref: 24
MODEL V/W

COTTER PIN

€ 1.50

25

6141036002
ref: 25

ADJUSTER,CHAIN

€ 11.50

26

0910408034
ref: 26

BOLT(8X50)

€ 3.00

27

0831000087
ref: 27

NUT

€ 2.00

28

6451112B02
ref: 28

SPROCKET,RR(NT:42)

€ 57.00

29

0911908043
ref: 29

BOLT

€ 2.00

30

0916908012
ref: 30

WASHER

€ 2.00

31

0831000083
ref: 31

NUT

€ 1.50

32

6510005320
ref: 32

TIRE,RR(3.50-16 4PR)

€ 0.00

33

6520026700
ref: 33

TUBE

€ 29.00

34

0915914008
ref: 34
MODEL X

NUT

€ 5.00

all assemblies
