AIR CLEANER

GS1100G 1982 (Z) USA (E03)

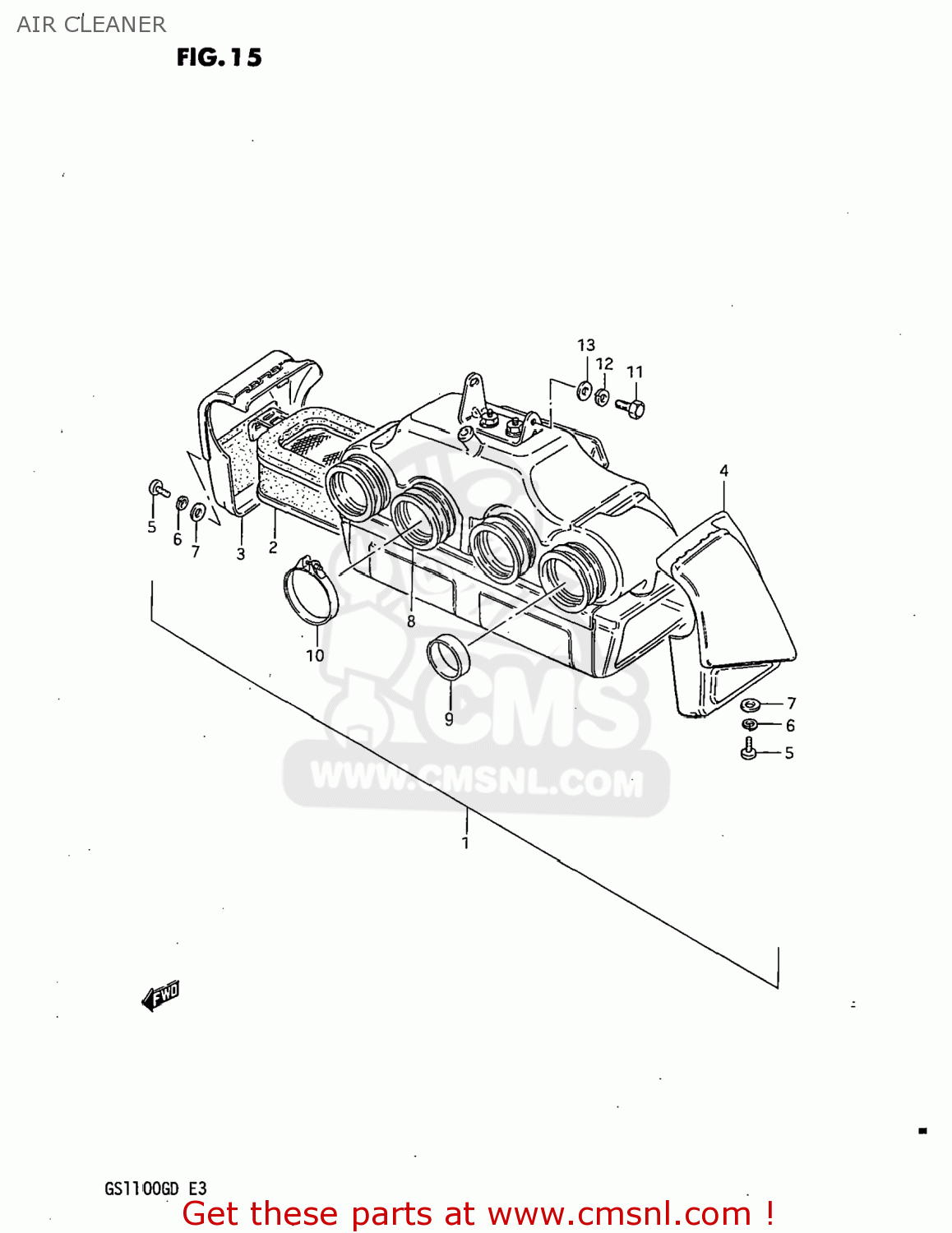

Air cleaner diagram GS1100G 1982 (Z) USA (E03)

AIR CLEANER GS1100G 1982 (Z) USA (E03)

AIR CLEANER GS1100G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370045120
ref: 1
13700-45122

CLEANER ASSEMBLY,AIR

€ 317.50

2

1378049070
ref: 2

FILTER ASSY

€ 90.00

3

1374045100
ref: 3

CAP,AIR CLEANER

€ 44.50

4

1375045100
ref: 4

CAP,AIR CLEANER

€ 43.50

5

0211205128
ref: 5
02112-05127

SCREW

€ 2.50

6

0832121058
ref: 6
08321-0105A

LOCK WASHER

€ 2.00

7

0832221058
ref: 7
08322-01057

WASHER

€ 2.50

8

1388149080
ref: 8

TUBE,OUTLET

€ 14.00

9

1388533200
ref: 9

RING,CARBURETOR AIR IN

€ 9.00

10

0940262206
ref: 10
09402-62208

CLAMP

€ 6.00

11

0110706128
ref: 11
01500-06127

BOLT

€ 2.00

12

0832121068
ref: 12
08321-01067

LOCK WASHER

€ 2.50

13

0832211068
ref: 13
08322-0106B

WASHER 6MM

€ 2.00
