ELECTRICAL (MODEL Z)
GS1100G 1982 (Z) USA (E03)

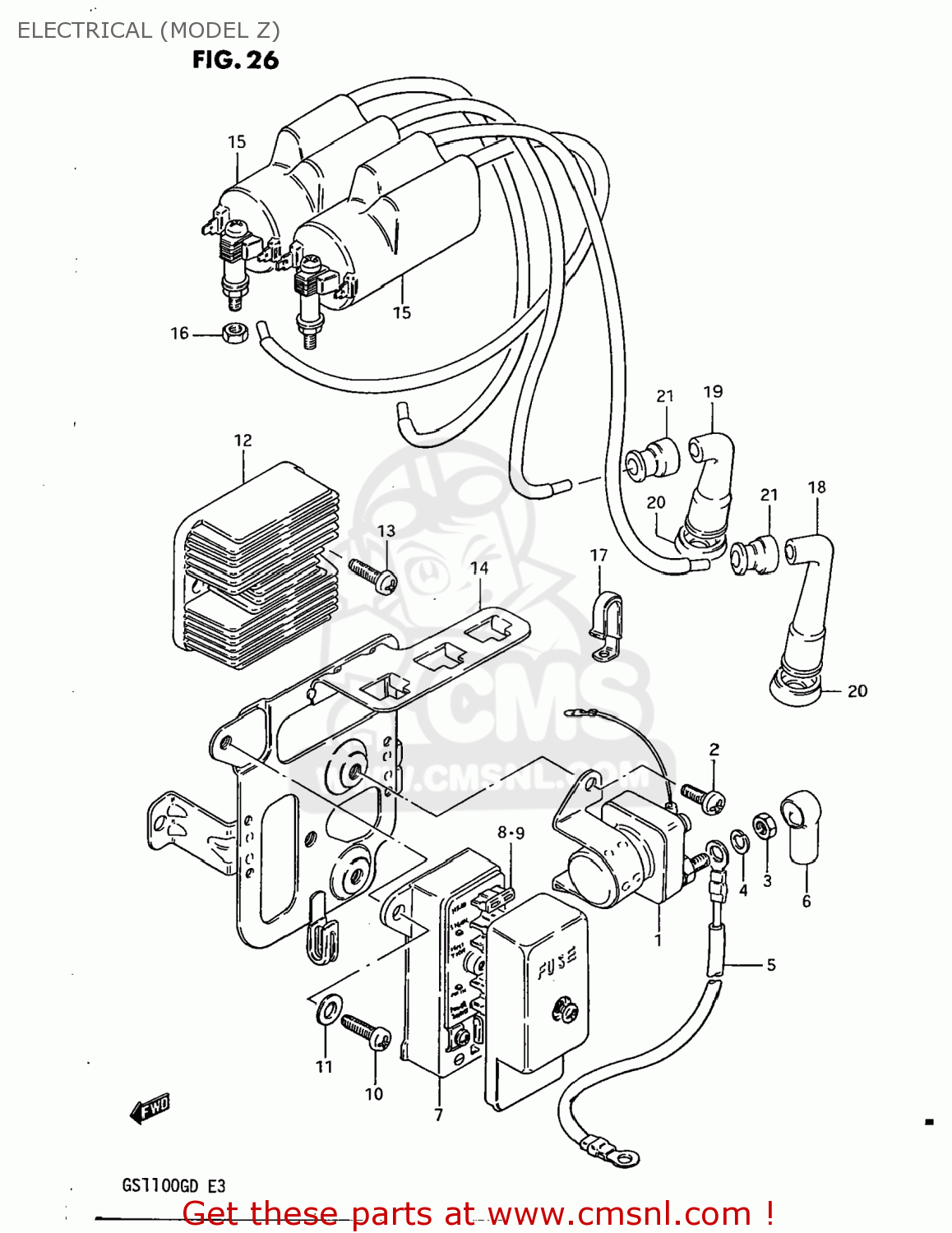

Electrical (model z) diagram GS1100G 1982 (Z) USA (E03)
ELECTRICAL (MODEL Z) GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
02112-06107
SCREW
€ 1.50
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5
3385034301
ref: 5
33850-48B00
CABLE,STARTING MOTOR
€ 50.00
6-1
3186135100
ref: 6-1
31861-48B10
CAP,STARTER RELAY
€ 4.50
6-2
3186149400
ref: 6-2
CAP,STARTER RELAY
€ 0.00
7
3674045D00
ref: 7
BOX ASSY,FUSE
€ 69.50
8
0948110101
ref: 8
FUSE(10A)
€ 2.50
9
0948115101
ref: 9
FUSE(15A)
€ 1.50
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
3280049420
ref: 12
32800-43X51
RECTIFIER ASSEMBLY
€ 380.50
13
0211206128
ref: 13
02112-06127
SCREW 6X12
€ 2.00
14
4741045110
ref: 14
HOLDER COMP,ELECTRONIC PARTS
€ 0.00
15
3341034210
ref: 15
33410-31311
COIL ASSEMBLY,IGNITION
€ 182.00
16
0831011068
ref: 16
08310-00067
NUT
€ 2.50
17
0940306307
ref: 17
CLAMP
€ 4.50
18
3351045010
ref: 18
CAP ASSY,SPARK PLUG
€ 23.00
19
3351043010
ref: 19
CAP,SPARK PLUG
€ 11.50
20
3354169010
ref: 20
SEAL,SPARK PLUG
€ 5.00
21
3354298000
ref: 21
33542-38B00
SEAL,SPARK PLU
€ 4.50
21
3354298000
ref: 21
33542-38B00
SEAL,SPARK PLU
€ 4.50
