FUEL COCK

GS1100G 1982 (Z) USA (E03)

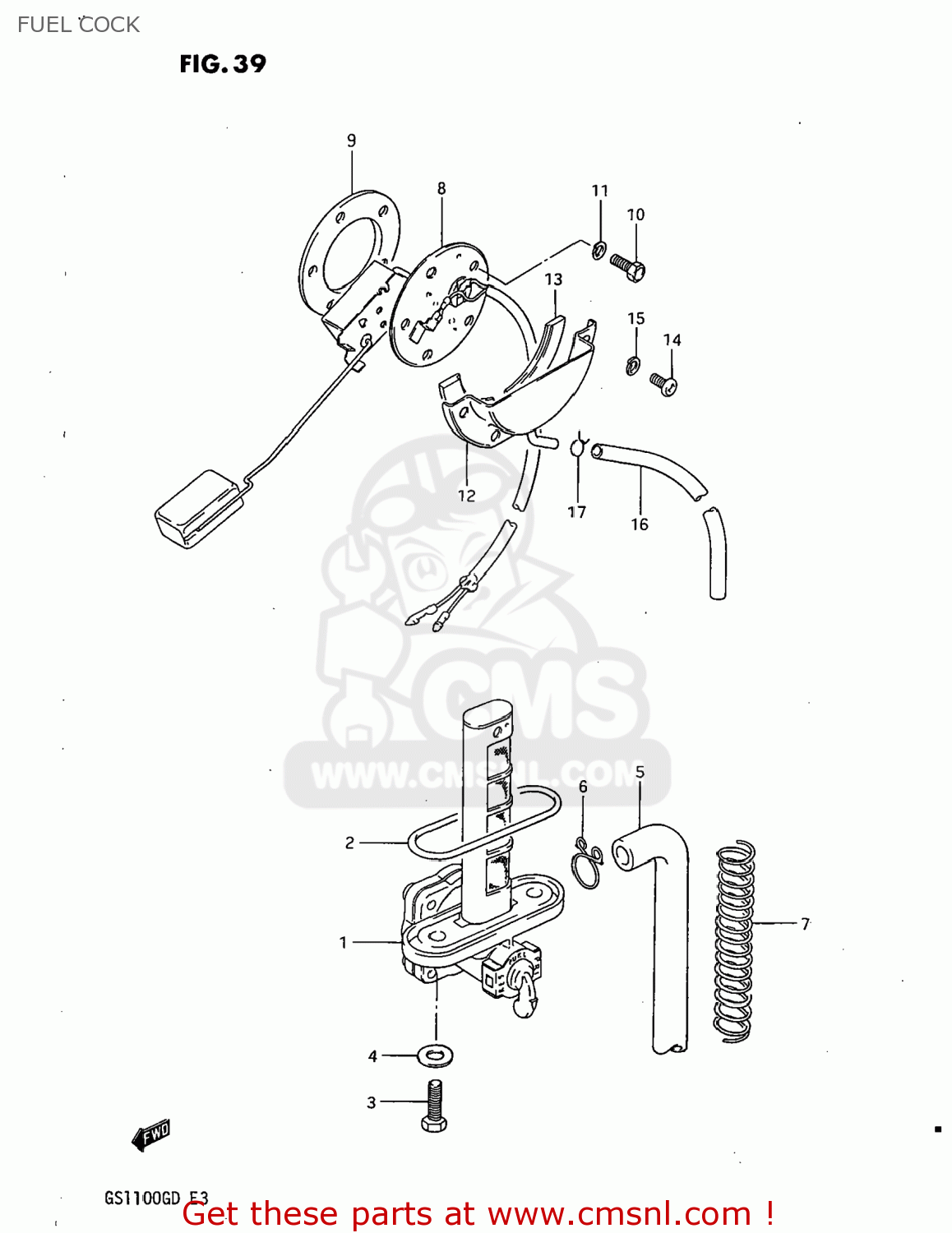

Fuel cock diagram GS1100G 1982 (Z) USA (E03)

FUEL COCK GS1100G 1982 (Z) USA (E03)

FUEL COCK GS1100G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430045370
ref: 1
44300-45372

COCK ASSEMBLY,FUEL

€ 104.50

2

4434849170
ref: 2

O RING

€ 3.50

3

0912806006
ref: 3
09128-06057

BOLT(6X20)

€ 2.00

4

0916806010
ref: 4
09168-06023

GASKET

€ 2.00

5

0934307073
ref: 5
09352-70103-00B

HOSE

€ 17.50

6

0940110403
ref: 6

CLIP

€ 7.00

7

0944013018
ref: 7
09440-13043

SPRING

€ 14.50

8

3481049400
ref: 8

GAUGE ASSEMBLY,FUEL LEVEL

€ 65.00

9

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

10

0110405108
ref: 10
01500-0510B

BOLT

€ 1.50

11

0832121058
ref: 11
08321-0105A

LOCK WASHER

€ 2.00

12

3488534500
ref: 12

PLATE,FUEL DRAIN

€ 20.50

13

3488834500
ref: 13

GASKET (NAS)

€ 8.50

14

0211205088
ref: 14
02112-05087

SCREW

€ 2.00

15

0832121058
ref: 15
08321-0105A

LOCK WASHER

€ 2.00

16

0934305165
ref: 16
09352-50823-00B

HOSE,FUEL

€ 13.00

17

0940108402
ref: 17

CLIP

€ 1.50
