REAR CALIPERS
GS1100G 1982 (Z) USA (E03)

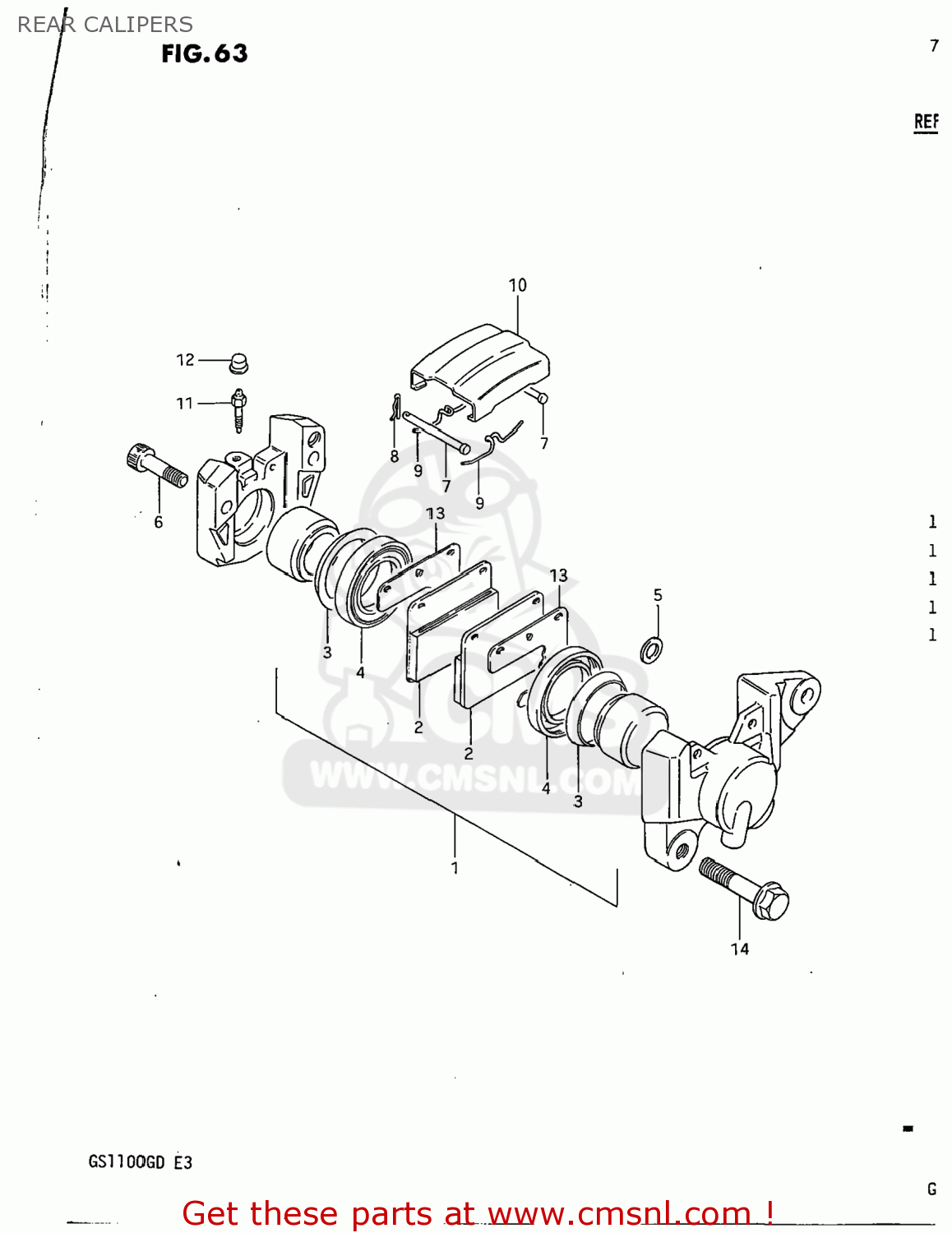

Rear calipers diagram GS1100G 1982 (Z) USA (E03)
REAR CALIPERS GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910034200
ref:
69100-34270
CALIPER ASSEMBLY,REAR
€ 547.00
6910034201
ref:
69100-34270
CALIPER ASSEMBLY,REAR
€ 547.00
1-1
6910034810
ref: 1-1
69100-34851
PISTON SET
€ 94.00
1-2
6910034820
ref: 1-2
69100-34851
PISTON SET
€ 94.00
2-1
6913045020
ref: 2-1
69101-45850-XNA
PAD,BRAKE
€ 66.50
2-2
6913045021
ref: 2-2
69101-45850-XNA
PAD,BRAKE (MCA)
€ 66.50
3
5910718410
ref: 3
69107-05CF0
SEAL,PISTON
€ 17.00
4
6910845000
ref: 4
BOOT,PISTON
€ 10.00
5
6910734200
ref: 5
SEAL,JOINT
€ 12.00
6
6914534200
ref: 6
59145-05C50
BOLT,CALIPER HOUSING
€ 9.50
7
6914145000
ref: 7
PIN,PAD
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
6914345001
ref: 9
SPRING
€ 8.00
10
6915145000
ref: 10
COVER,DUST
€ 26.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
55156-66310
CAP,BREATHER
€ 6.00
13
6915245001
ref: 13
SHIM,RR CALIPER
€ 9.50
14
0152710308
ref: 14
01550-10307
BOLT
€ 3.50
