FOOTREST (MODEL D)
GS1100G 1982 (Z) USA (E03)

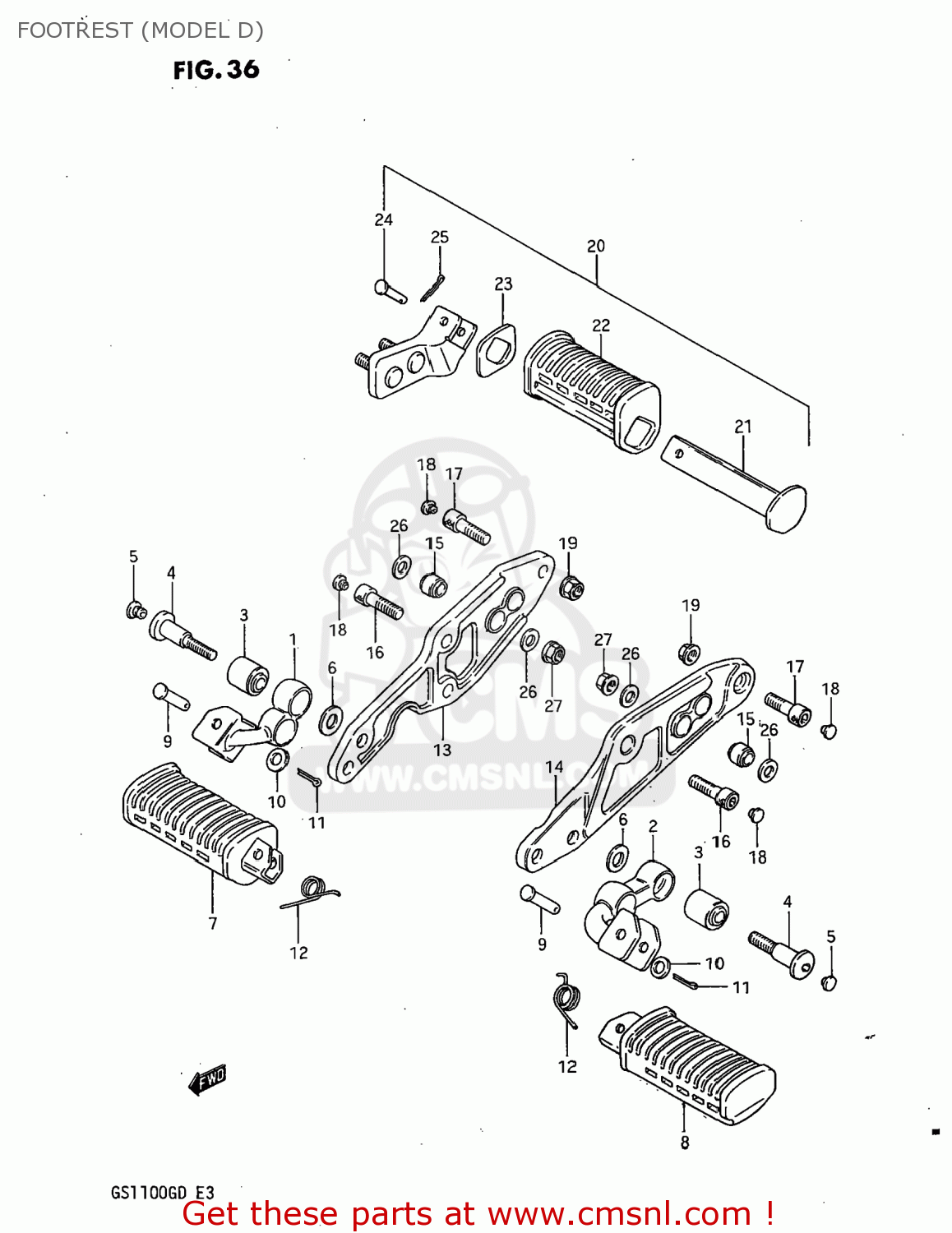

Footrest (model d) diagram GS1100G 1982 (Z) USA (E03)
FOOTREST (MODEL D) GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4351049401
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 36.50
2
4352049401
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 38.00
3
0931910047
ref: 3
BUSH
€ 8.00
4
0910610010
ref: 4
BOLT(10X50)
€ 44.00
5
4357534500
ref: 5
CAP
€ 1.50
6
0916010069
ref: 6
09160-10005
WASHER (10X18X3.2)
€ 2.00
7
4355049450
ref: 7
43550-37301
RUBBER,FRONT FOOTREST
€ 22.50
8
4356049450
ref: 8
43560-37301
FOOTREST
€ 22.50
9
0920008002
ref: 9
PIN
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
0411120208
ref: 11
04111-2020A
PIN 20X20
€ 1.50
12
0944814012
ref: 12
SPRING
€ 3.00
13
4381149450
ref: 13
BRACKET,MUFFLER,RIGHT
€ 84.00
14
4382149450
ref: 14
BRACKET,MUFFLER,LEFT
€ 84.00
15
0931910047
ref: 15
BUSH
€ 8.00
16
0910610003
ref: 16
07130-10257
BOLT
€ 3.00
17
0910610006
ref: 17
07130-10307
BOLT
€ 4.50
18
4357534500
ref: 18
CAP
€ 1.50
19
0831616108
ref: 19
08316-10107
NUT
€ 2.00
20-1
4360049451
ref: 20-1
43600-49452
FOOTREST ASSEMBLY,REAR
€ 27.50
20-2
4370049451
ref: 20-2
43700-49452
FOOTREST ASSEMBLY,PILLION
€ 31.50
21-1
4361049450
ref: 21-1
BAR,REAR FOOTREST
€ 9.50
21-2
4362049450
ref: 21-2
43620-49451
BAR,REAR FOOTREST
€ 8.50
22
4361249401
ref: 22
43612-49402
RUBBER,REAR FOOTREST
€ 14.50
23
4363149400
ref: 23
43631-49401
WASHER,REAR FOOTREST RUBBER
€ 3.00
24
0920006010
ref: 24
PIN
€ 2.50
25
0411120208
ref: 25
04111-2020A
PIN 20X20
€ 1.50
26
0916010005
ref: 26
WASHER(10.5X20X3.2)
€ 2.00
27
0831616108
ref: 27
08316-10107
NUT
€ 2.00
