SPEEDOMETER - TACHOMETER
GS1100G 1982 (Z) USA (E03)

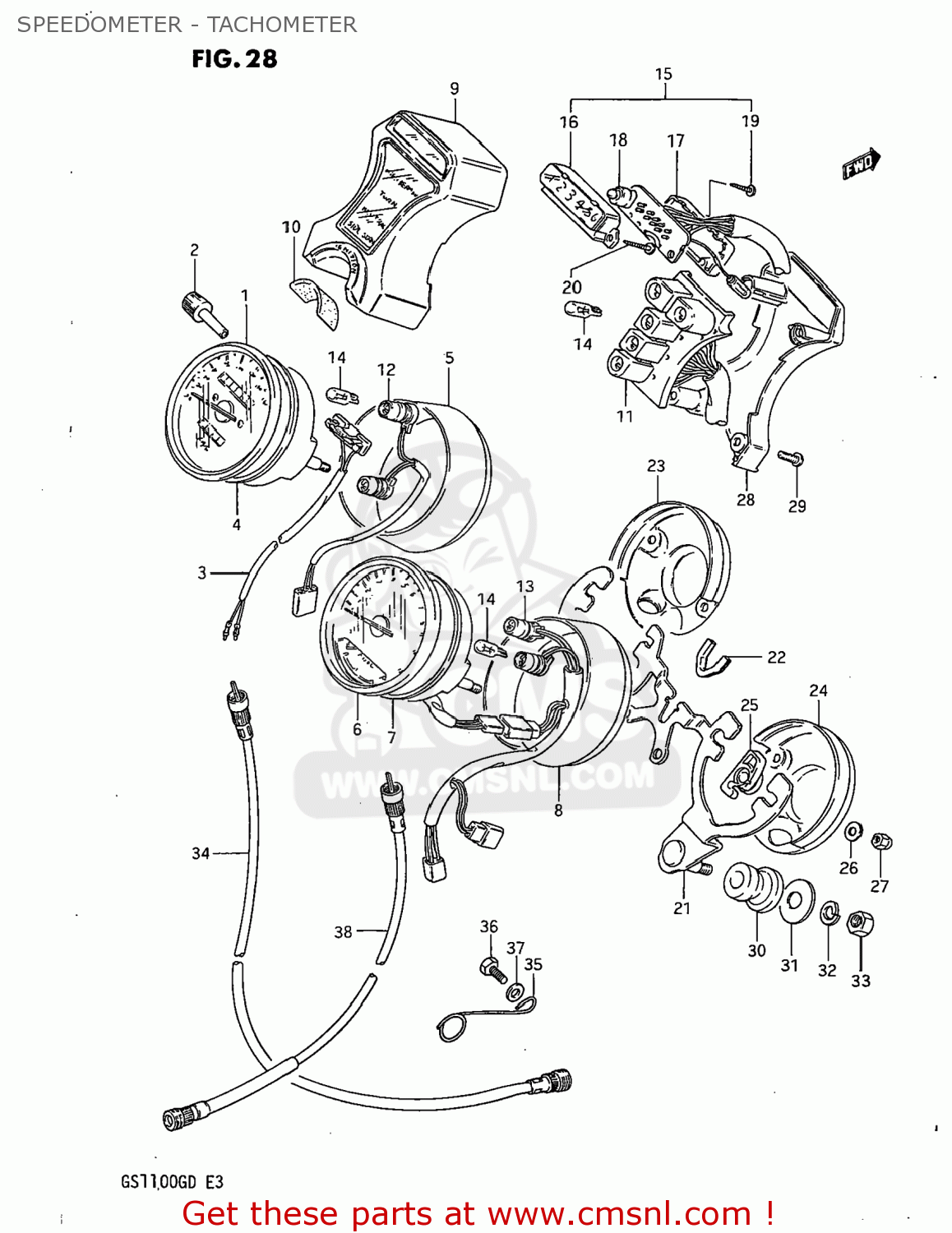

Speedometer - tachometer diagram GS1100G 1982 (Z) USA (E03)
SPEEDOMETER - TACHOMETER GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3411049410
ref: 1-1
34110-49411
SPEEDOMETER ASSEMBLY
€ 135.50
1-2
3411049411
ref: 1-2
METER,SPEEDOMETER (KM/MPH)
€ 135.50
2
3412449400
ref: 2
KNOB,TRIP
€ 4.50
3
3486045110
ref: 3
WIRE,LEAD
€ 20.00
4
3418949400
ref: 4
CUSHION,METER
€ 13.00
5
3415149400
ref: 5
COVER,SPEEDOMETER
€ 14.00
6-1
3421049410
ref: 6-1
34210-49400
TACHOMETER
€ 309.00
6-2
3421049411
ref: 6-2
34210-49400
TACHOMETER
€ 309.00
7
3418949400
ref: 7
CUSHION,METER
€ 13.00
8
3425149400
ref: 8
COVER,TACHOMETER
€ 13.50
9
3638049400
ref: 9
CASE,PILOT BOX
€ 68.50
10
3499347000
ref: 10
SEAL,IGNITION SWITCH
€ 3.00
11
3632549400
ref: 11
SOCKET,PILOT BOX
€ 57.50
12
3417349400
ref: 12
SOCKET,SPEEDOMETER
€ 10.00
13
3427349400
ref: 13
SOCKET,TACHOMETER
€ 17.00
14
0947112028
ref: 14
BULB(12V3.4W,T10)
€ 3.50
15-1
3645045101
ref: 15-1
36450-49401
INDICATOR ASSEMBLY,GEAR POSITION
€ 117.00
15-2
3645049401
ref: 15-2
INDICATOR ASSEMBLY,GEAR POSITION
€ 117.00
16-1
3645245100
ref: 16-1
CASE,GEAR INDICATOR
€ 14.50
16-2
3645249401
ref: 16-2
CASE,GEAR INDICATOR
€ 12.50
17
3645445100
ref: 17
COVER,LWR
€ 7.00
18-1
0947112071
ref: 18-1
BULB(14V1.12W)
€ 5.00
18-2
0947112078
ref: 18-2
BULB(14V1.12W,BQ041-32503B)
€ 6.50
19
3645645100
ref: 19
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
20
3645745100
ref: 20
SCREW
€ 2.00
21
3495049400
ref: 21
BRACKET,COMBINATION METER
€ 38.50
22
3495344310
ref: 22
BRACKET,COVER
€ 6.50
23
3419349400
ref: 23
COVER,METER,UNDER
€ 33.50
24
3429349400
ref: 24
COVER,TACHOMETER,UNDER
€ 28.00
25
3419149400
ref: 25
CUSHION
€ 4.50
26
0832221058
ref: 26
08322-01057
WASHER
€ 2.50
27
0831311057
ref: 27
08313-1005A
NUT
€ 1.50
28
3638344310
ref: 28
COVER,PILOT BOX LWR
€ 20.00
29
3638744310
ref: 29
02112-0410A
SCREW,PILOT BULB CASE
€ 1.00
30
3495631001
ref: 30
CUSHION,METER BRACKET
€ 4.50
31
0916008057
ref: 31
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
32
0832121085
ref: 32
08321-0108A
LOCK WASHER
€ 2.50
33
0831011085
ref: 33
08310-0008A
NUT
€ 1.50
34
3491049400
ref: 34
34910-31990
CABLE ASSEMBLY,SPEEDOMETER
€ 25.00
35
3493845100
ref: 35
CLAMP,SPEEDOMETER CABLE
€ 14.50
36
0110706168
ref: 36
01500-06167
BOLT, UPPER
€ 3.00
37
0832221068
ref: 37
08322-01067
WASHER
€ 2.00
38
3494049400
ref: 38
34940-45212
CABLE ASSEMBLY,TACHOMETER
€ 18.50
