STEERING STEM (MODEL Z)
GS1100G 1982 (Z) USA (E03)

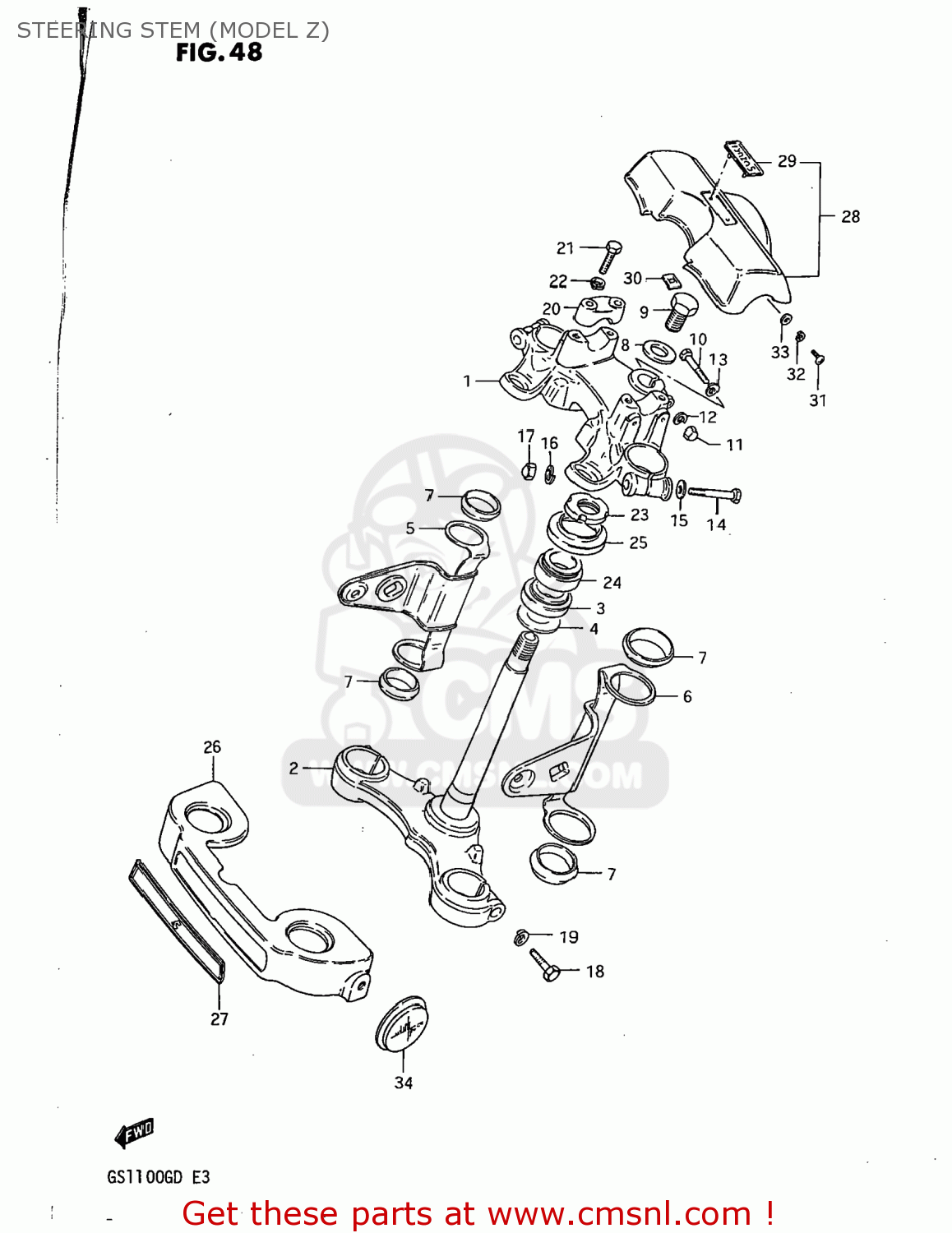

Steering stem (model z) diagram GS1100G 1982 (Z) USA (E03)
STEERING STEM (MODEL Z) GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5131149400291
ref: 1
HEAD,STEERING STEM
€ 198.50
2
5141049400291
ref: 2
51410-49430-291
STEM,STEERING
€ 249.00
3
0926530005
ref: 3
09265-30009
BEARING
€ 49.50
4
0821130402
ref: 4
09181-30184
WASHER,THRUST
€ 4.00
5
5153049400
ref: 5
51500-49830
BRACKET,HEADLAMP,RIGHT
€ 72.50
6
5154049400
ref: 6
51540-49410
BRACKET,HEADLAMP,LEFT
€ 35.00
7
5155349000
ref: 7
51553-34300
CUSHION,HEADLAMP BRACKET
€ 4.50
8
5135649400
ref: 8
51356-43530
WASHER,STEERING STEM
€ 4.00
9
5135345380
ref: 9
51352-43530
NUT,STEM HEAD
€ 8.50
10
0110708508
ref: 10
01500-08507
BOLT 8X50
€ 3.00
11
0831311088
ref: 11
08313-10087
NUT
€ 2.50
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0110710558
ref: 14
01500-1055A
BOLT 10X55
€ 3.50
15
0832221108
ref: 15
08322-01107
WASHER
€ 2.50
16
0832121108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17
0831311108
ref: 17
08313-10107
NUT, LOWER LH
€ 2.50
18
0110708358
ref: 18
01500-0835B
BOLT
€ 3.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
5621129320291
ref: 20
HOLDER,HANDLE(BLACK)
€ 12.00
21
0110708358
ref: 21
01500-0835B
BOLT
€ 3.50
22
0832121088
ref: 22
08321-01087
LOCK WASHER
€ 2.00
23
5163134200
ref: 23
NUT,STEERING STEM
€ 23.00
24
0926525008
ref: 24
09265-25019
TAPER,ROLLER BEARING
€ 48.50
25
5164340502
ref: 25
DUST SEAL,STEERING UPR
€ 8.00
26
5187149400
ref: 26
COVER,FRONT FORK
€ 20.50
27
6821149400
ref: 27
EMBLEM,FRONT FORK COVER
€ 11.50
28
5617049400
ref: 28
PAD,HANDLEBAR
€ 36.00
29
6828145100
ref: 29
EMBLEM,HANDLE COVER PAD
€ 14.00
30
0914803002
ref: 30
NUT
€ 3.00
31
0211205108
ref: 31
02112-05107
SCREW
€ 2.00
32
0832121058
ref: 32
08321-0105A
LOCK WASHER
€ 2.00
33
0832221058
ref: 33
08322-01057
WASHER
€ 2.50
34
3595049080
ref: 34
REFLEX REFLECTOR,RR
€ 17.50
34
3595049080
ref: 34
REFLEX REFLECTOR,RR
€ 17.50
