SEAT (MODEL D)

GS1100G 1982 (Z) USA (E03)

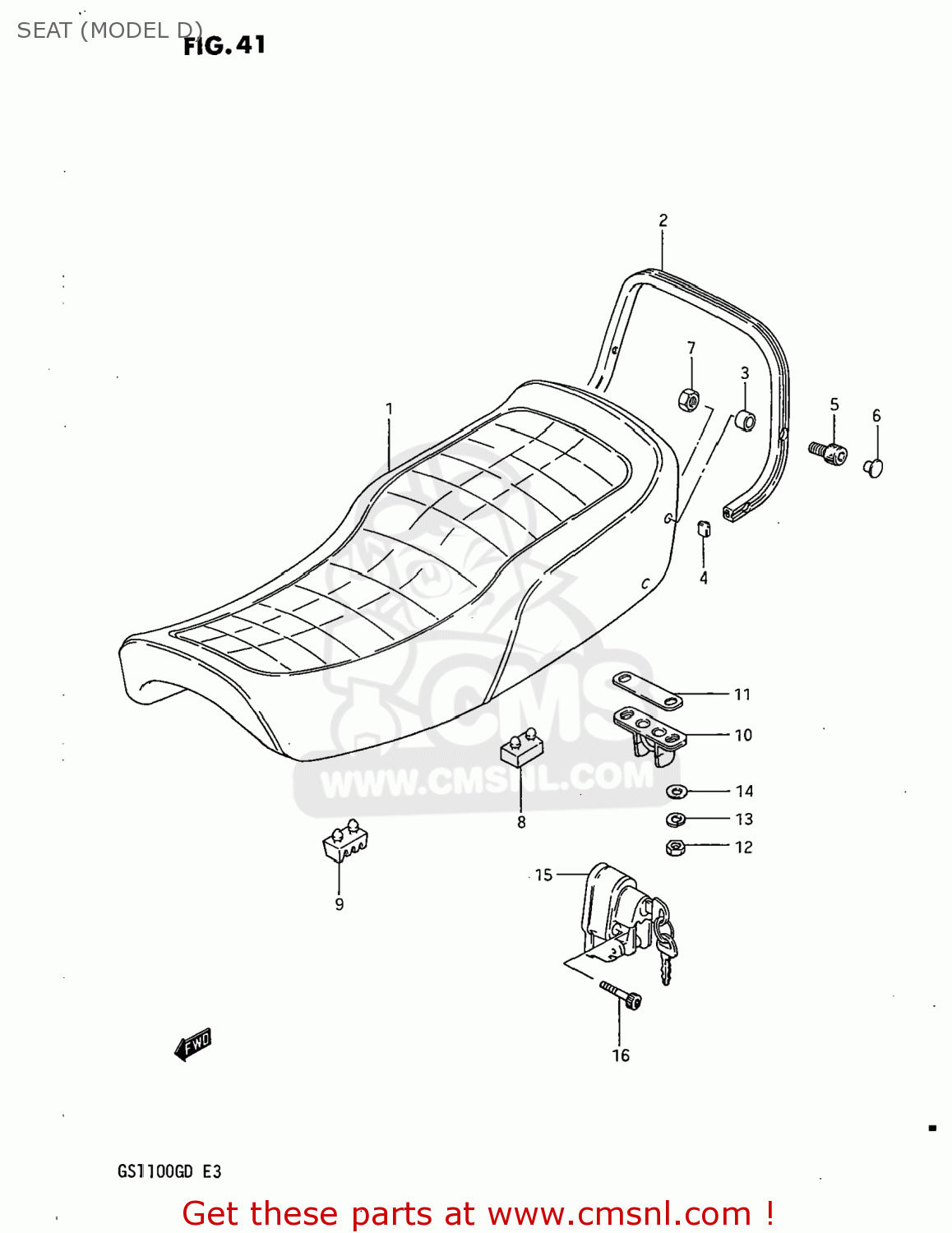

Seat (model d) diagram GS1100G 1982 (Z) USA (E03)

SEAT (MODEL D) GS1100G 1982 (Z) USA (E03)

SEAT (MODEL D) GS1100G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

451004943048H
ref: 1

SEAT ASSEMBLY

€ 0.00

2

4621149430
ref: 2

HANDLE,PILLION RIDER

€ 170.50

3

4621849430
ref: 3

SPACER,REAR

€ 5.00

4

4621349431
ref: 4

END,PILLION RIDER HAND

€ 5.00

5

0910608013
ref: 5
07130-0830A

BOLT

€ 3.00

6

0925006004
ref: 6

CAP(OD:14.5)

€ 1.50

7

0831626088
ref: 7
08316-20087

NUT

€ 3.00

8

0932108006
ref: 8

CUSHION

€ 3.00

9

4514945330
ref: 9

CUSHION,SUPPORT(50X25X32)

€ 2.00

10

4521044101
ref: 10

STRIKER,SEAT LOCK

€ 32.50

11

4521744100
ref: 11

SHIM,SEAT LOCK STRIKER

€ 4.50

12

0831022068
ref: 12
08310-00067

NUT 6MM

€ 2.50

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

0832221068
ref: 14
08322-01067

WASHER

€ 2.00

15

9570034210
ref: 15

LOCK ASSY,HELMET

€ 59.00

16

0910605008
ref: 16
07130-0525B

BOLT 5X25

€ 2.00
