WIRING HARNESS
GS1100G 1982 (Z) USA (E03)

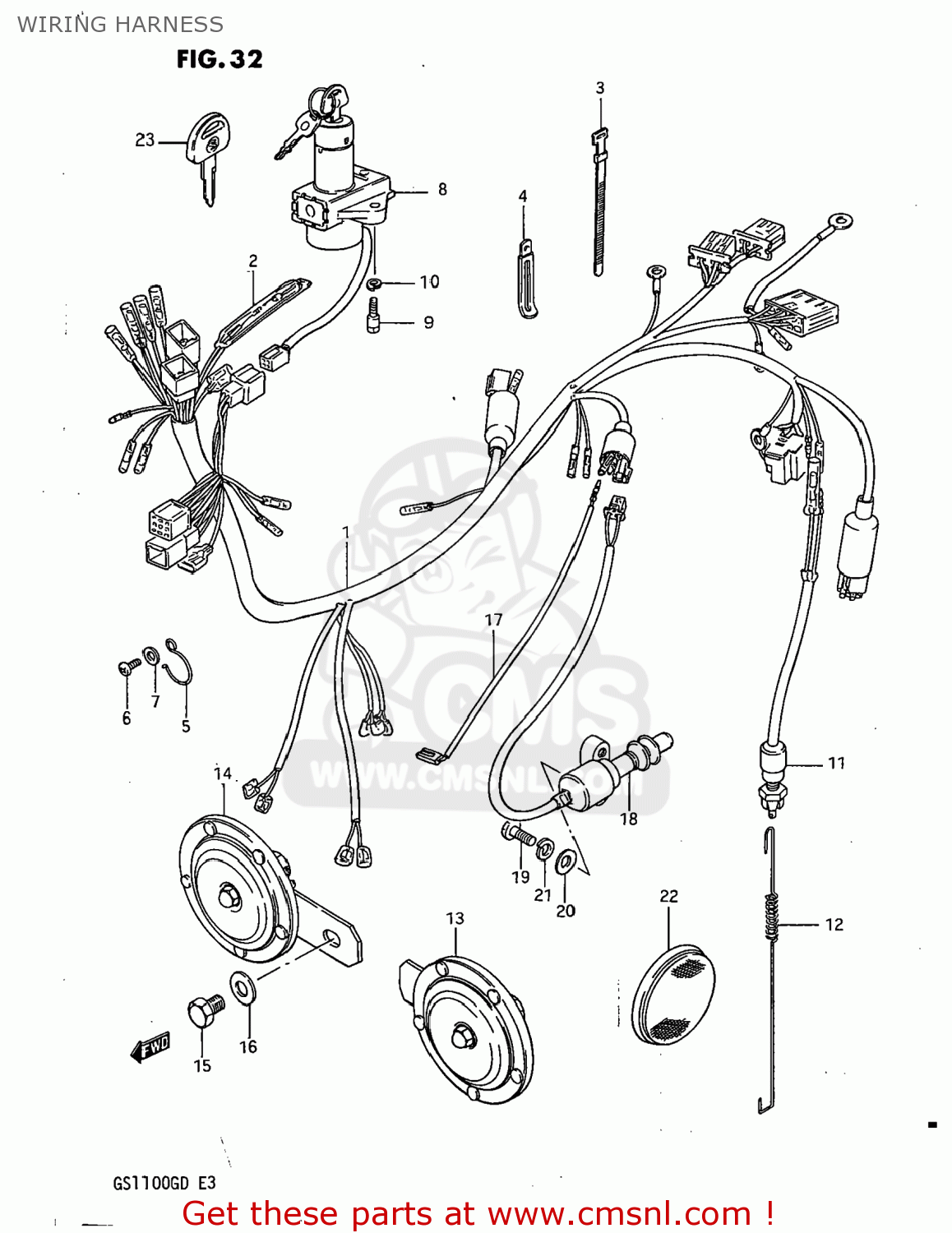

Wiring harness diagram GS1100G 1982 (Z) USA (E03)
WIRING HARNESS GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661049420
ref: 1-1
36610-494K0
HARNESS,WIRING
€ 149.50
1-2
3661049250
ref: 1-2
HARNESS,WIRING
€ 87.00
2
3661102100
ref: 2
DIODE
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4-1
0940406414
ref: 4-1
09404-06433
CLAMP
€ 3.00
4-2
0940406415
ref: 4-2
09404-06433
CLAMP
€ 3.00
4-3
0940406419
ref: 4-3
09404-06435
CLAMP
€ 2.50
5
3661944002
ref: 5
CLIP,WIRING HARNESS
€ 2.50
6
0211206128
ref: 6
02112-06127
SCREW 6X12
€ 2.00
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
3710049201
ref: 8
SWITCH ASSY,IGNITION
€ 141.00
9
3715247010
ref: 9
07130-0616B
BOLT
€ 3.00
10
0832121068
ref: 10
08321-01067
LOCK WASHER
€ 2.50
11
3774004571
ref: 11
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
12
0944306018
ref: 12
09443-06018-XC0
SPRING
€ 4.50
13
3850249410
ref: 13
38502-49420
HORN ASSEMBLY,LOW PITCH
€ 52.50
14
3850149410
ref: 14
38501-49420
HORN ASSEMBLY,HIGH PITCH
€ 52.50
15
0110708168
ref: 15
01500-0816B
BOLT
€ 2.00
16
0832211088
ref: 16
08322-01087
WASHER
€ 2.00
17
3685345001
ref: 17
WIRE,OIL PRESSURE SWITCH LEAD
€ 9.50
18
3784049400
ref: 18
37840-14A01
SWITCH ASSEMBLY,SIDE STAND
€ 75.00
19
0110705168
ref: 19
01500-0516B
BOLT
€ 1.50
20
0832221058
ref: 20
08322-01057
WASHER
€ 2.50
21
0832121058
ref: 21
08321-0105A
LOCK WASHER
€ 2.00
22
3595049080
ref: 22
REFLEX REFLECTOR,RR
€ 17.50
23
3714647010
ref: 23
KEY,BLANK
€ 15.00
