STARTER CLUTCH

GS1100G 1982 (Z) USA (E03)

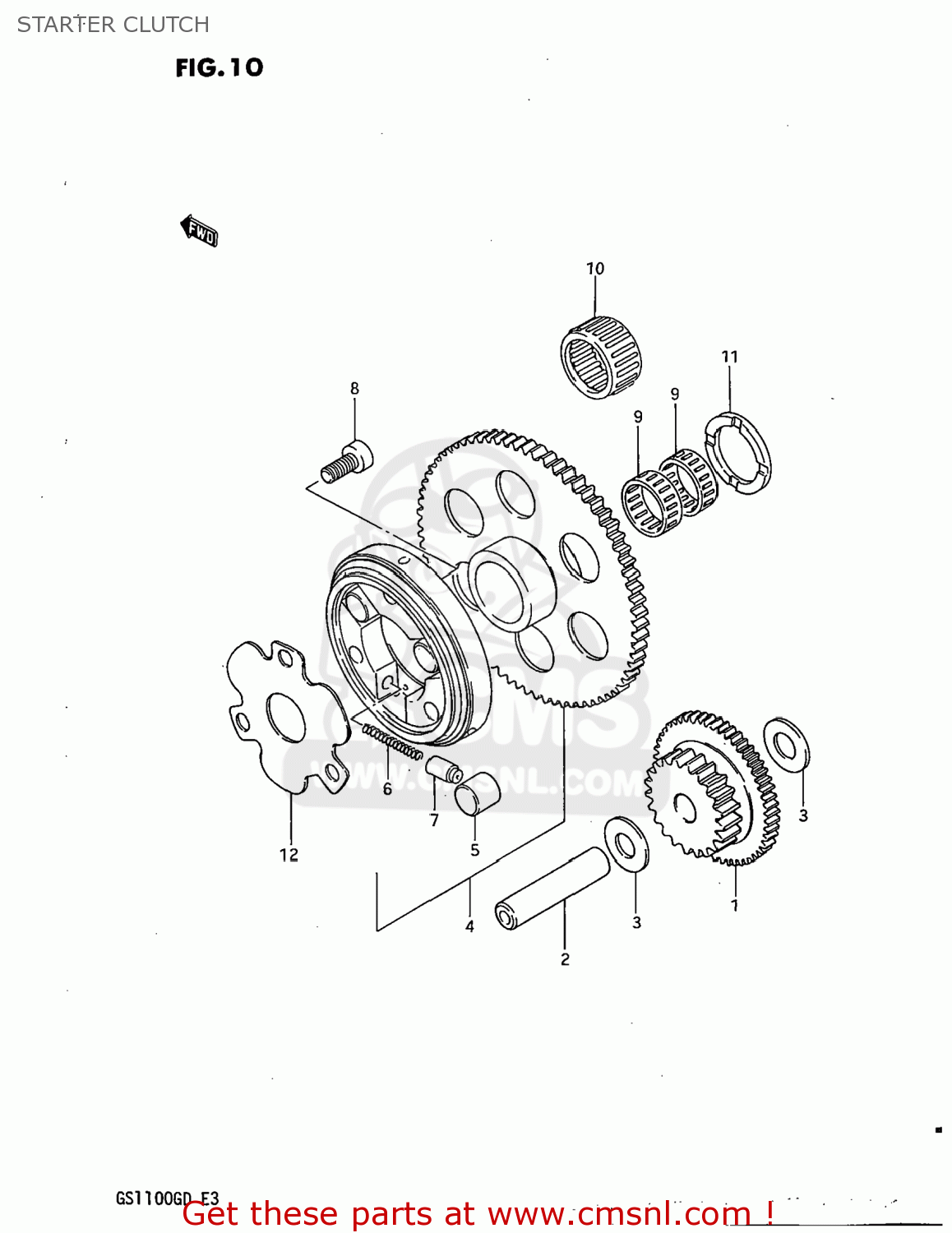

Starter clutch diagram GS1100G 1982 (Z) USA (E03)

STARTER CLUTCH GS1100G 1982 (Z) USA (E03)

STARTER CLUTCH GS1100G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1261149000
ref: 1

GEAR,STARTER IDLE

€ 49.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

4

1260049850
ref: 4

CLUTCH SET,STARTER

€ 273.00

5

0926114001
ref: 5

PIN(14X13)

€ 5.00

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8
07130-0816A

BOLT

€ 3.00

9

0926325029
ref: 9
09263-25008

BEARING

€ 17.00

10

0926325039
ref: 10
09263-25008

ROLLER BEARING (25X31X2

€ 17.00

11

0916025019
ref: 11

WASHER(25X38X2.5)

€ 10.00

12

1264949400
ref: 12

SHIM,STARTER CLUTCH HUB

€ 0.00
