GS1100G 1982 (Z) USA (E03)

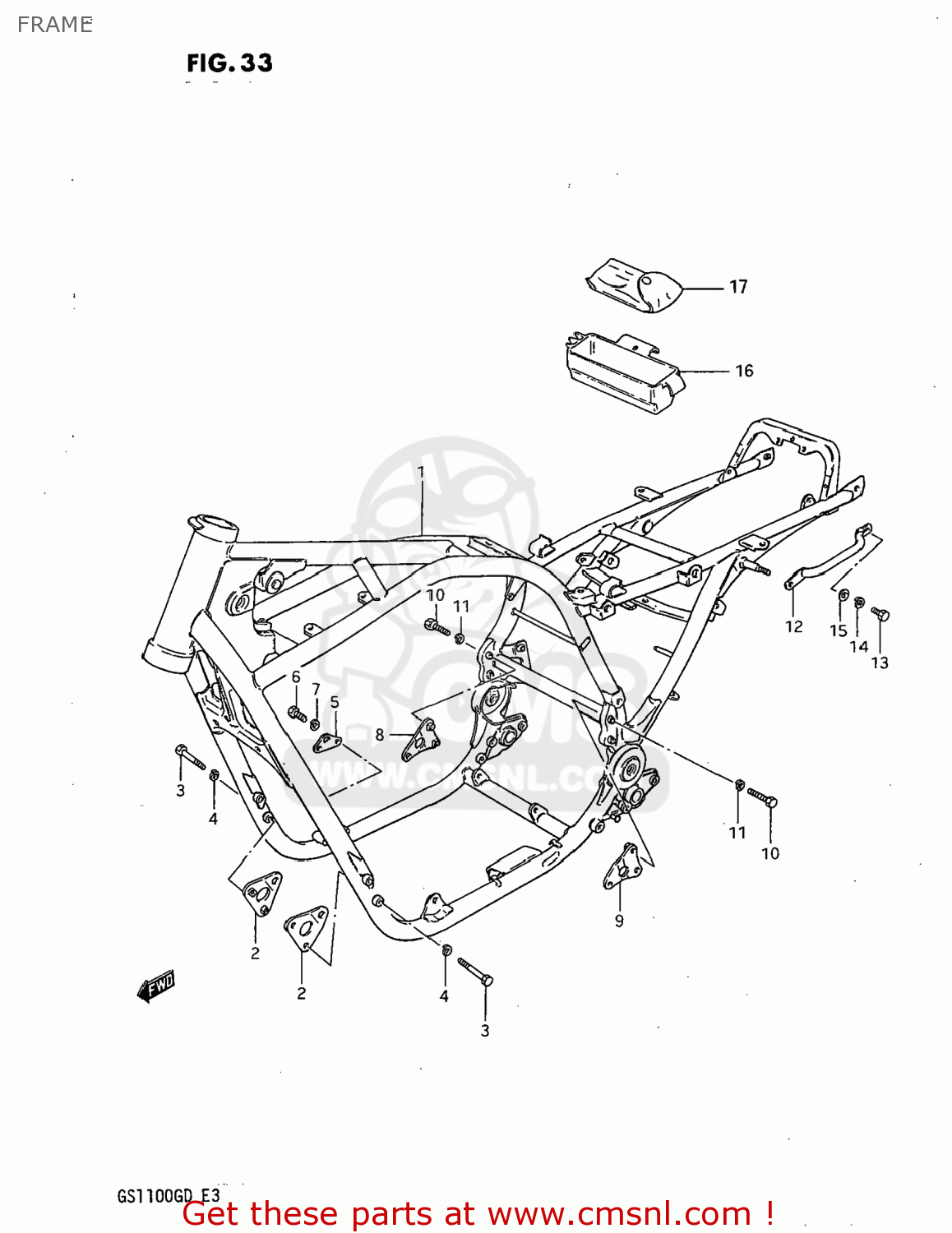

Frame diagram GS1100G 1982 (Z) USA (E03)
FRAME GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110049400019
ref: 1-1
41100-49401-019
FRAME
€ 1,399.50
1-2
4110049401019
ref: 1-2
FRAME
€ 1,399.50
2
4191045101019
ref: 2
PLATE,ENGINE MOUNTING
€ 8.50
3
0110708658
ref: 3
01500-0865B
BOLT
€ 3.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
4199345000019
ref: 5
PLATE,ENGINE MOUNTING
€ 5.50
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8
4197045100019
ref: 8
PLATE,ENGINE MOUNTING
€ 0.00
9
4198045350019
ref: 9
PLATE,ENGINE MOUNTING
€ 0.00
10
0110708408
ref: 10
01500-0840A
BOLT 8X40
€ 3.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12-1
4161149400
ref: 12-1
41611-49401
GRIP,FRAME HANDLE
€ 26.50
12-2
4161149401
ref: 12-2
GRIP,FRAME HANDLE
€ 26.50
13
0110708168
ref: 13
01500-0816B
BOLT
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0832211088
ref: 15
08322-01087
WASHER
€ 2.00
16
4155145110
ref: 16
HOLDER,TOOL
€ 29.00
17
0980000231
ref: 17
09800-21025
TOOL SET
€ 43.00
