CRANKCASE (MODEL Z)
GS1100G 1982 (Z) USA (E03)

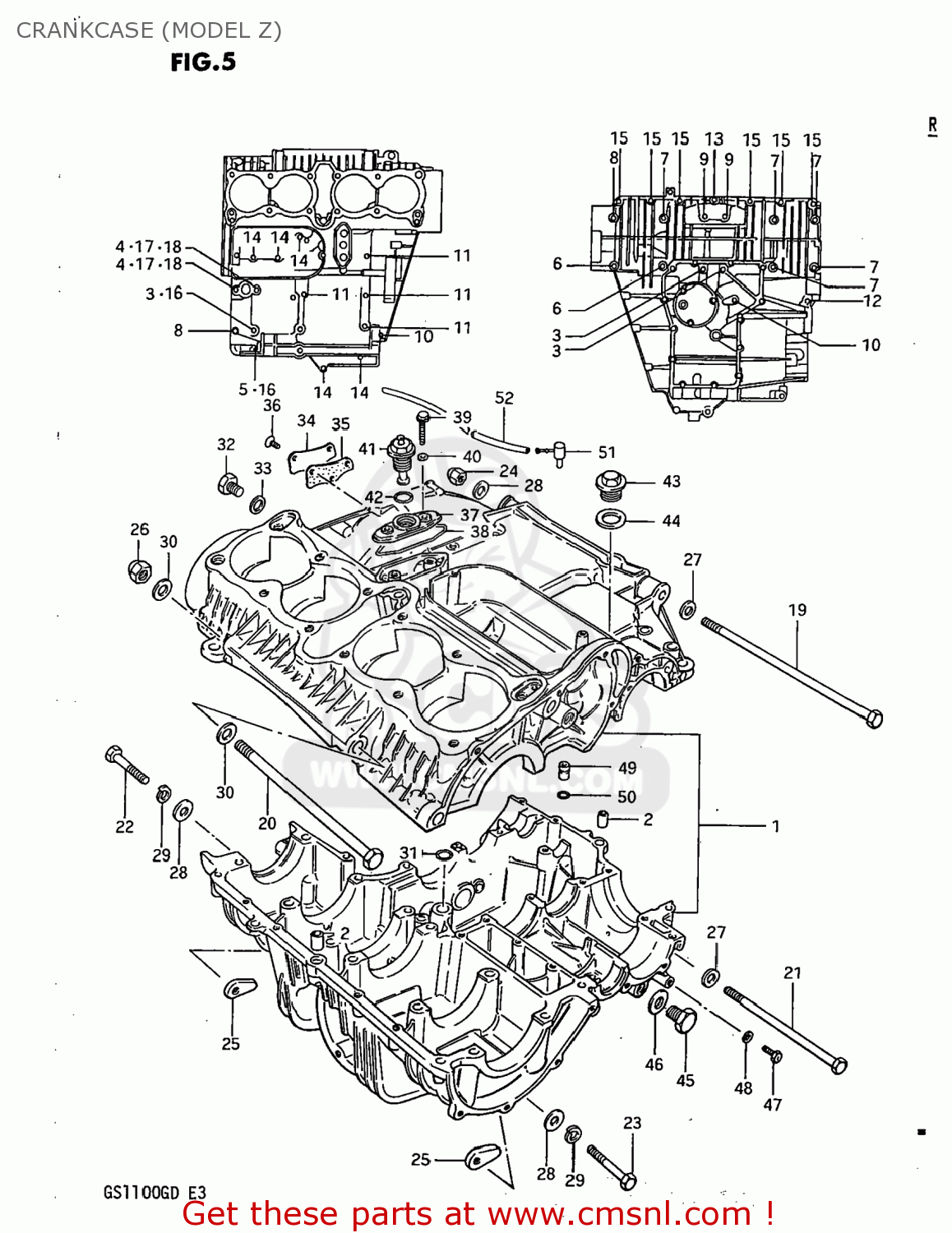

Crankcase (model z) diagram GS1100G 1982 (Z) USA (E03)
CRANKCASE (MODEL Z) GS1100G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130049841
ref: 1
11300-49843
CRANKCASE SET
€ 1,782.00
2
0920613001
ref: 2
04211-13189
PIN
€ 2.50
3
0910308020
ref: 3
09103-08106
BOLT
€ 8.00
4
0910308046
ref: 4
BOLT
€ 0.00
5
0910308023
ref: 5
09103-08097
BOLT
€ 3.00
6
0910308009
ref: 6
09103-08070
BOLT
€ 5.00
7
0151708908
ref: 7
01550-08907
BOLT 8X90
€ 3.50
8
0151708658
ref: 8
01550-08657
BOLT 8X65
€ 3.00
9
0151708608
ref: 9
01550-08607
BOLT
€ 3.50
10
0151706908
ref: 10
01550-06907
BOLT (6X90)
€ 2.00
11
0151706758
ref: 11
01550-06757
BOLT (6X75)
€ 2.50
12
0151706558
ref: 12
01550-06557
BOLT
€ 2.50
13
0151706508
ref: 13
01550-06507
BOLT ,6X50
€ 2.00
14
0151706458
ref: 14
01550-06457
BOLT,UNDER
€ 2.50
15
0151706358
ref: 15
01550-06357
BOLT 6X35
€ 2.50
16
0831616088
ref: 16
08316-10087
NUT
€ 2.50
17
0831311088
ref: 17
08313-10087
NUT
€ 2.50
18
0916808008
ref: 18
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0910010074
ref: 19
BOLT 10X270
€ 15.50
20
6121139000
ref: 20
61211-39002
SHAFT,REAR SWING ARM
€ 15.00
21
0910010078
ref: 21
BOLT(10X165)
€ 10.50
22
0110710608
ref: 22
01500-1060A
BOLT 10X60
€ 3.50
23
0110710508
ref: 23
01500-1050A
BOLT (10X50)
€ 7.00
24
0915910011
ref: 24
NUT
€ 3.00
25
0915910020
ref: 25
NUT
€ 7.50
26
0831921128
ref: 26
08319-2112A
NUT 12MM
€ 4.00
27
0916010005
ref: 27
WASHER(10.5X20X3.2)
€ 2.00
28
0832211108
ref: 28
08322-01107
WASHER
€ 2.50
29
0832121108
ref: 29
08321-01107
LOCK WASHER
€ 2.00
30
0832211128
ref: 30
08322-01127
WASHER
€ 2.00
30
0832211128
ref: 30
08322-01127
WASHER
€ 2.00
31
0928013001
ref: 31
O RING(D:3.2,ID:12.9)
€ 4.00
32
0924714012
ref: 32
09247-14026
PLUG (14X12)
€ 3.50
33
0916814004
ref: 33
GASKET(14X19.2X2) (NAS)
€ 2.50
34
1139445000
ref: 34
CAP,OIL GALLERY
€ 6.50
35
1149745000
ref: 35
11497-45000-H17
GASKET,OIL GALLERY (MCA)
€ 13.00
36
0212206168
ref: 36
02122-06167
SCREW
€ 2.00
37
1644545000
ref: 37
HOUSING,OIL PRESSURE SWITCH
€ 28.00
38
1644845000
ref: 38
O RING,PRESSURE SWITCH HOUSING
€ 10.50
39
0151706258
ref: 39
01550-06257
BOLT
€ 2.50
40
0916806009
ref: 40
09168-06023
GASKET (NAS)
€ 2.00
41
3782045050
ref: 41
37820-45061
SWITCH ASSEMBLY
€ 30.00
42
0928019001
ref: 42
O RING(D:1.9,ID:18.8)
€ 1.50
43
0924720002
ref: 43
09248-20003
PLUG
€ 4.50
44
0916820004
ref: 44
09168-20003
GASKET
€ 1.50
45
0924714014
ref: 45
09247-14036
PLUG
€ 5.50
46
0916814004
ref: 46
GASKET(14X19.2X2) (NAS)
€ 2.50
47
0912806004
ref: 47
09128-06044
SCREW(6X10)
€ 1.50
48
0916806009
ref: 48
09168-06023
GASKET (NAS)
€ 2.00
49
0936405005
ref: 49
UNION
€ 3.00
50
0928003003
ref: 50
O RING(D:1.05,ID:3.1)
€ 2.50
51
2482145100
ref: 51
BPLUG,BEVEL GEAR BREATHER
€ 7.00
52
0934302009
ref: 52
09352-20503-600
HOSE
€ 12.00
