HEADLAMP

GS1100G 1982 (Z) USA (E03)

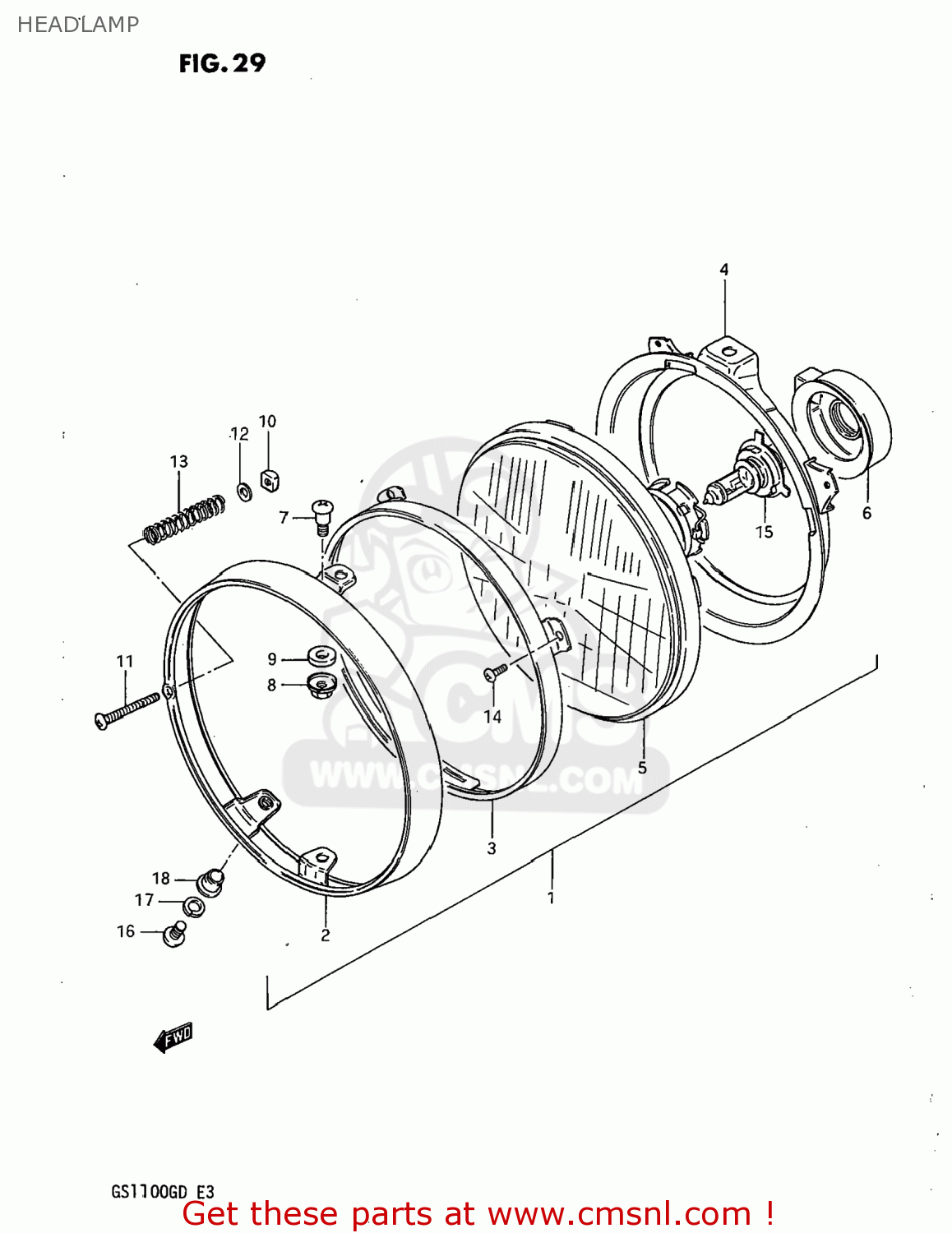

Headlamp diagram GS1100G 1982 (Z) USA (E03)

HEADLAMP GS1100G 1982 (Z) USA (E03)

HEADLAMP GS1100G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510049010999
ref: 1

HEADLAMP ASSEMBLY

€ 88.00

2

3511145600
ref: 2

RIM

€ 57.50

3

3512745600
ref: 3

RETAINER

€ 39.00

4

3513045600
ref: 4

RING,HEADLAMP UNIT

€ 35.00

5

3512149010
ref: 5

LAMP UNIT

€ 136.00

6

3517349020
ref: 6
35173-45200

COVER,HEADLAMP SOCKET

€ 14.00

7

3513625611
ref: 7
35136-35400

SCREW

€ 4.00

8

3513525611
ref: 8
08316-1005A

NUT,ADJUSTING

€ 2.50

9

3513345600
ref: 9

SPACER

€ 3.50

10

3513545600
ref: 10

NUT

€ 3.00

11

3515145230
ref: 11

SCREW

€ 3.50

12

3515727630
ref: 12

WASHER

€ 2.50

13

3515445600
ref: 13

SPRING,HEADLAMP ADJUST

€ 3.50

14

0211203088
ref: 14
02112-03087

SCREW

€ 1.50

15

0947112060
ref: 15

BULB(12V60/55W,H4)

€ 8.00

16

0912505022
ref: 16
09125-05115

SCREW

€ 3.50

17

0916205003
ref: 17
09162-05002

WASHER,LOCK

€ 2.00

18

0916906021
ref: 18

WASHER

€ 2.50
