FUEL TANK (MODEL Z)

GS1100G 1982 (Z) USA (E03)

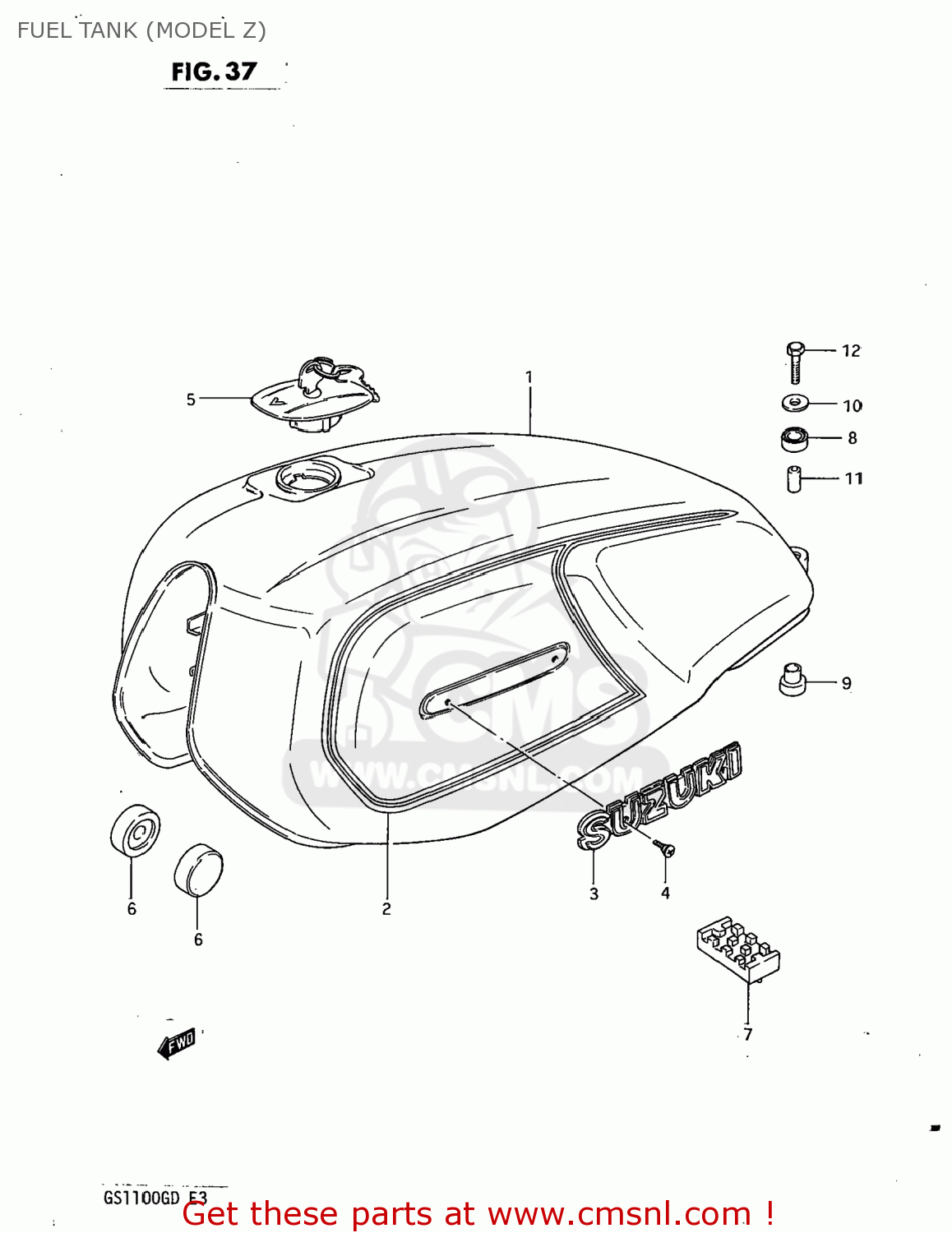

Fuel tank (model z) diagram GS1100G 1982 (Z) USA (E03)

FUEL TANK (MODEL Z) GS1100G 1982 (Z) USA (E03)

FUEL TANK (MODEL Z) GS1100G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4410049410019
ref: 1-1
44110-45110-13L

TANK ASSEMBLY,FUEL

€ 324.00

1-2

441004941014A
ref: 1-2
44110-45110-13L

TANK ASSEMBLY,FUEL

€ 324.00

2

6811049410764
ref: 2

TAPE SET,FUEL TANK

€ 0.00

3

6811144600
ref: 3

EMBLEM

€ 0.00

4

0213203065
ref: 4
02122-0306B

SCREW 3X6

€ 2.00

5

4420049703
ref: 5
44200-49810

CAP SET,FUEL TANK

€ 121.00

6

0932910016
ref: 6

CUSHION

€ 3.00

7

4454149400
ref: 7

CUSHION,FUEL TANK

€ 9.00

8

0932010020
ref: 8

CUSHION

€ 4.00

9

0932014013
ref: 9

CUSHION

€ 3.00

10

0916006004
ref: 10
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

11

0918006091
ref: 11
09180-06273

SPACER (6.4X9X21.5)

€ 5.50

12

0110706308
ref: 12
01500-06307

BOLT

€ 2.50

12

0110706308
ref: 12
01500-06307

BOLT

€ 2.50
