CRANKCASE

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

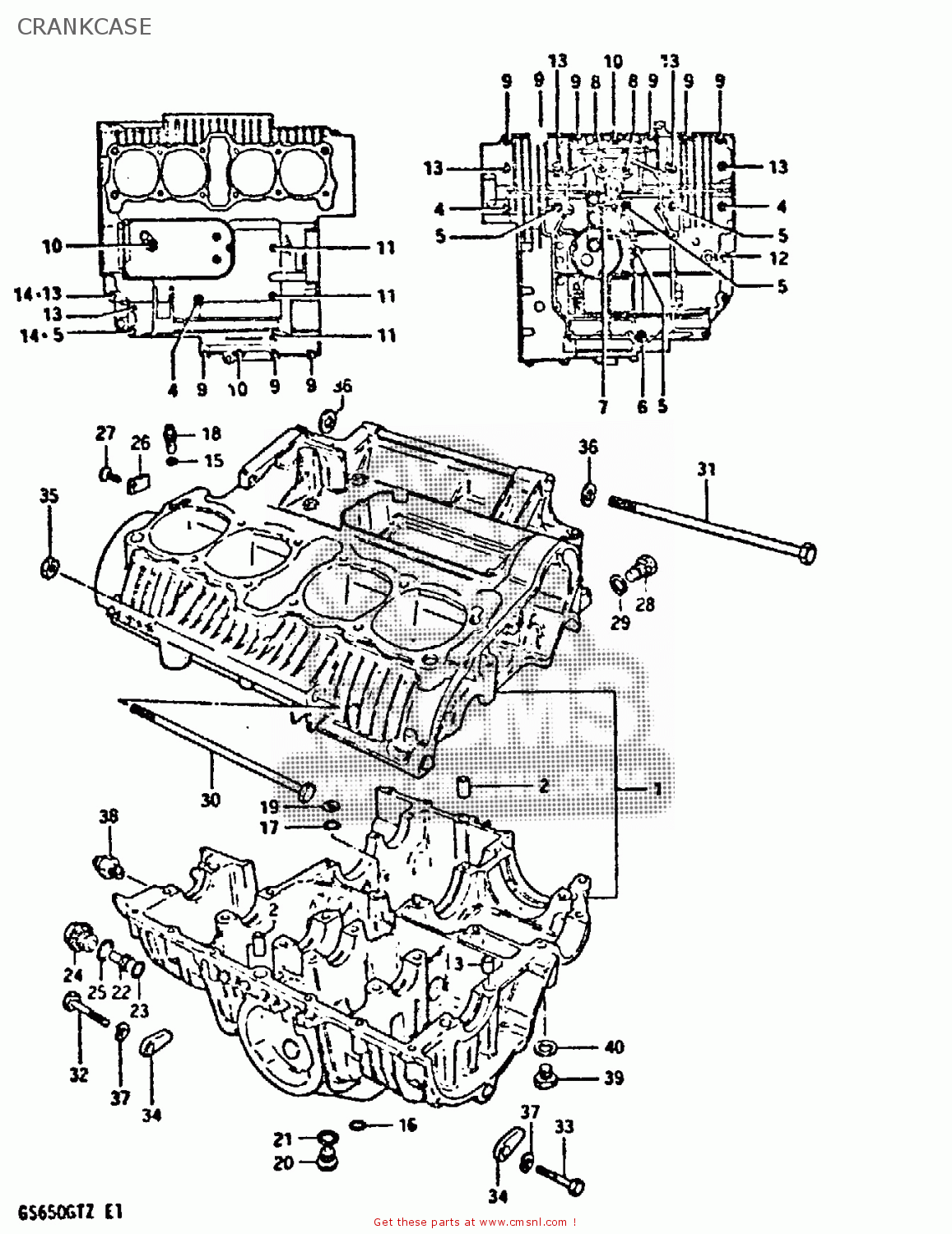

Crankcase diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

CRANKCASE GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CRANKCASE GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CRANKCASE GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1-1
1130034870
ref: 1-1
~E.NO.122595
CRANKCASE SET
€ 932.50
1-2
1130034871
ref: 1-2
E.NO.122596~136328
CRANKCASE SET
€ 932.50
1-3
1130034872
ref: 1-3
E.NO.136329~
CRANKCASE SET
€ 932.50
2
0920611005
ref: 2
PIN (11X20)(SUS)
€ 6.50
3
0920613004
ref: 3
PIN(10.4X13X22)
0920613004
€ 3.00
4
0910308024
ref: 4
BOLT
0910308024
€ 3.00
5
0910308026
ref: 5
BOLT
0910308026
€ 3.50
6
0910308038
ref: 6
BOLT(8X135)
0910308038
€ 4.00
7
0910308040
ref: 7
BOLT(8X140)
0910308040
€ 4.00
8
0910608015
ref: 8
BOLT
0910608015
€ 4.50
9
0151706408
ref: 9
BOLT
0151706408
€ 2.50
10
0151706558
ref: 10
BOLT
€ 2.50
11
0151706908
ref: 11
BOLT (6X90)
€ 2.00
12
0151708708
ref: 12
BOLT (8X70)
€ 2.00
13
0151708958
ref: 13
BOLT (8X95)
€ 3.50
14
0831616088
ref: 14
NUT
0831616088
€ 2.50
15
0928004002
ref: 15
O-RING,OIL GALLERY JET
0928004002
€ 2.00
16
0928012005
ref: 16
O-RING
0928012005
€ 5.00
17
0928013001
ref: 17
O RING(D:3.2,ID:12.9)
0928013001
€ 4.00
18
0949324009
ref: 18
JET(12)
0949324009
€ 10.50
19
0821205161
ref: 19
WASHER
0821205161
€ 1.50
20
0924716002
ref: 20
E.NO.122596~
PLUG
0924716002
€ 3.50
21
0916816002
ref: 21
E.NO.122596~
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
22
1132945400
ref: 22
E.NO.122596~
PIN,OIL GALLERY
1132945400
€ 2.50
23
0928010005
ref: 23
E.NO.122596~
SEAL (D:1.9 ID:9.8)
€ 3.50
24
0924718001
ref: 24
E.NO.122596~
PLUG
0924718001
€ 8.00
25
0928018004
ref: 25
E.NO.122596~
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
26
1131934200
ref: 26
E.NO.122596~
PLATE,OIL GALLERY PLUG
€ 2.50
27
0212206168
ref: 27
E.NO.122596~
SCREW
0212206168
€ 2.00
28
0924712005
ref: 28
E.NO.122596~
PLUG
€ 0.00
29
0916812002
ref: 29
E.NO.122596~
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
30
0910010111
ref: 30
BOLT
€ 11.50
31
0910110010
ref: 31
BOLT 10X250
0910110010
€ 49.50
32
0110710558
ref: 32
BOLT 10X55
0110710558
€ 3.50
33
0110710408
ref: 33
BOLT 10X40
0110710408
€ 3.00
34
0915910020
ref: 34
NUT
0915910020
€ 7.50
35
0831931105
ref: 35
NUT 10MM
€ 3.00
36
0832211108
ref: 36
WASHER
€ 2.50
37
0832121108
ref: 37
LOCK WASHER
0832121108
€ 2.00
38
3782034200
ref: 38
SWITCH ASSEMBLY
3782034200
€ 29.00
39
0924714001
ref: 39
PLUG
0924714001
€ 5.00
40
0916814004
ref: 40
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
