CYLINDER HEAD

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

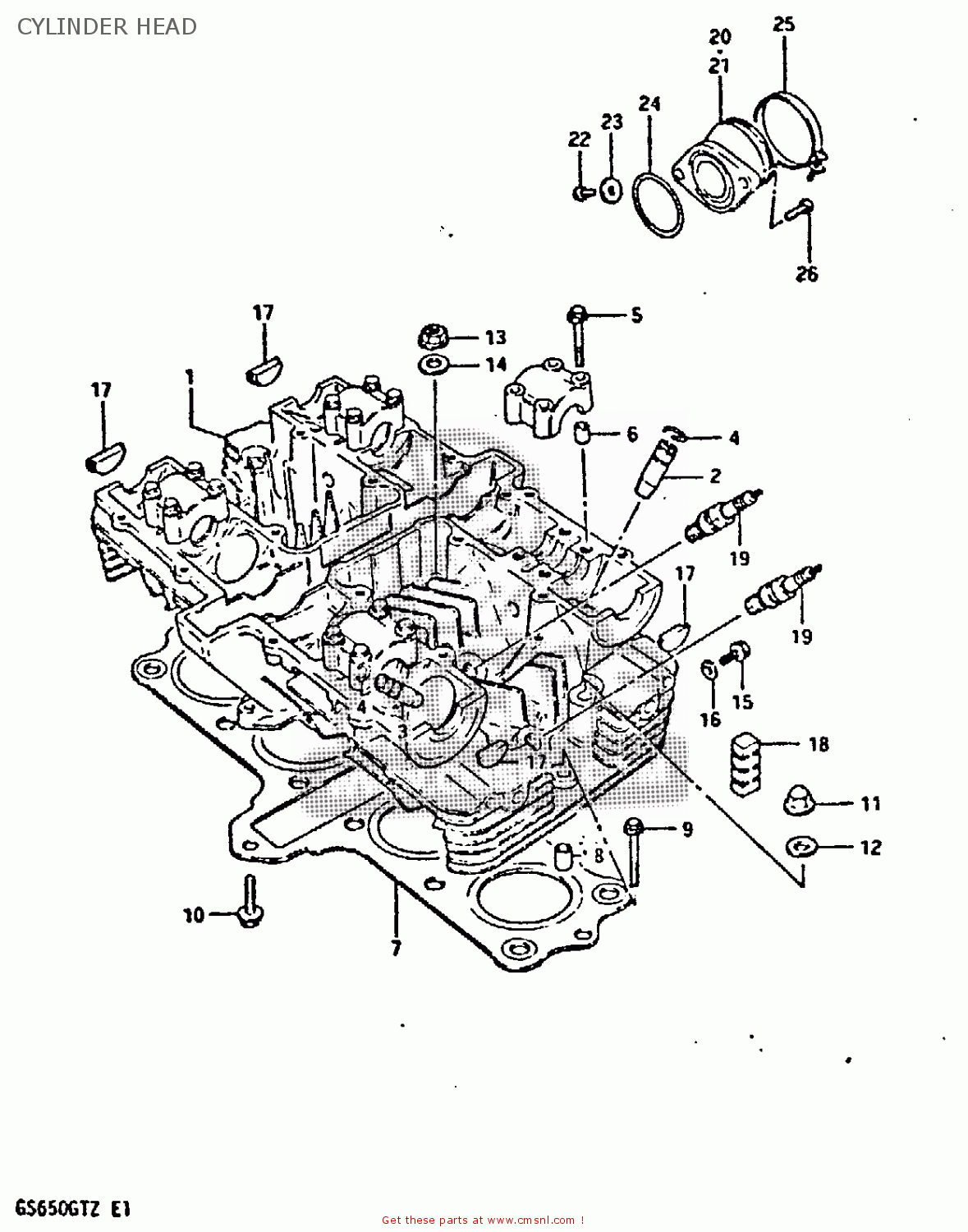

Cylinder head diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

CYLINDER HEAD GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CYLINDER HEAD GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
CYLINDER HEAD GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34
prices are in EUR
ref
part #
description
quantity
1-1
1110034200
ref: 1-1
~F.NO.103560
HEAD ASSEMBLY,CYLINDER
€ 1,167.50
1-2
1110034210
ref: 1-2
F.NO.103561~
HEAD,CYLINDER
€ 1,020.00
2
1111534270
ref: 2
GUIDE,INTAKE VALVE
1111534270
€ 14.50
3
1111647740
ref: 3
GUIDE,EXHAUST VALVE
1111647740
€ 17.50
4
0938110003
ref: 4
RING,SNAP
0938110003
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114134202
ref: 7
TO 11141-34203
GASKET,CYLINDER HEAD (MCA)
1114134202
€ 128.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0151706458
ref: 9
BOLT,UNDER
0151706458
€ 2.50
10
0151706308
ref: 10
BOLT
€ 2.00
11
0915908029
ref: 11
NUT
0915908029
€ 6.00
12
0916808013
ref: 12
GASKET(8.5X20X2.3) (NAS)
0916808013
€ 4.50
13
0915908031
ref: 13
NUT
0915908031
€ 2.00
14
0916008039
ref: 14
WASHER(8.5X19X2.3)
0916008039
€ 2.00
15
0151706128
ref: 15
BOLT
€ 2.50
16
0916806009
ref: 16
GASKET (NAS)
0916806009
€ 2.00
17
0924123002
ref: 17
PLUG
0924123002
€ 8.50
18
1125236500
ref: 18
PAD,CYLINDER
1125236500
€ 6.00
19-1
NOTUSED
ref: 19-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19-2
NOTUSED
ref: 19-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
19-3
0948200149
ref: 19-3
E2, E4, E15, E16, E1
SPARK PLUG DR8ES-L
0948200149
€ 3.50
19-4
0948200223
ref: 19-4
E2, E4, E15, E16, E1
PLUG,SPARK(X24ESR-U)
€ 3.50
20
1311047010
ref: 20
PIPE,INTAKE,R
1311047010
€ 40.00
21
1312047010
ref: 21
PIPE,INTAKE,L
1312047010
€ 38.00
22
0910605006
ref: 22
BOLT
0910605006
€ 2.00
23
0832221058
ref: 23
WASHER
€ 2.50
24
0928038003
ref: 24
O-RING
0928038003
€ 4.50
25
0940250306
ref: 25
CLAMP
0940250306
€ 6.00
26
0211206168
ref: 26
SCREW
0211206168
€ 2.50
