GENERATOR

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

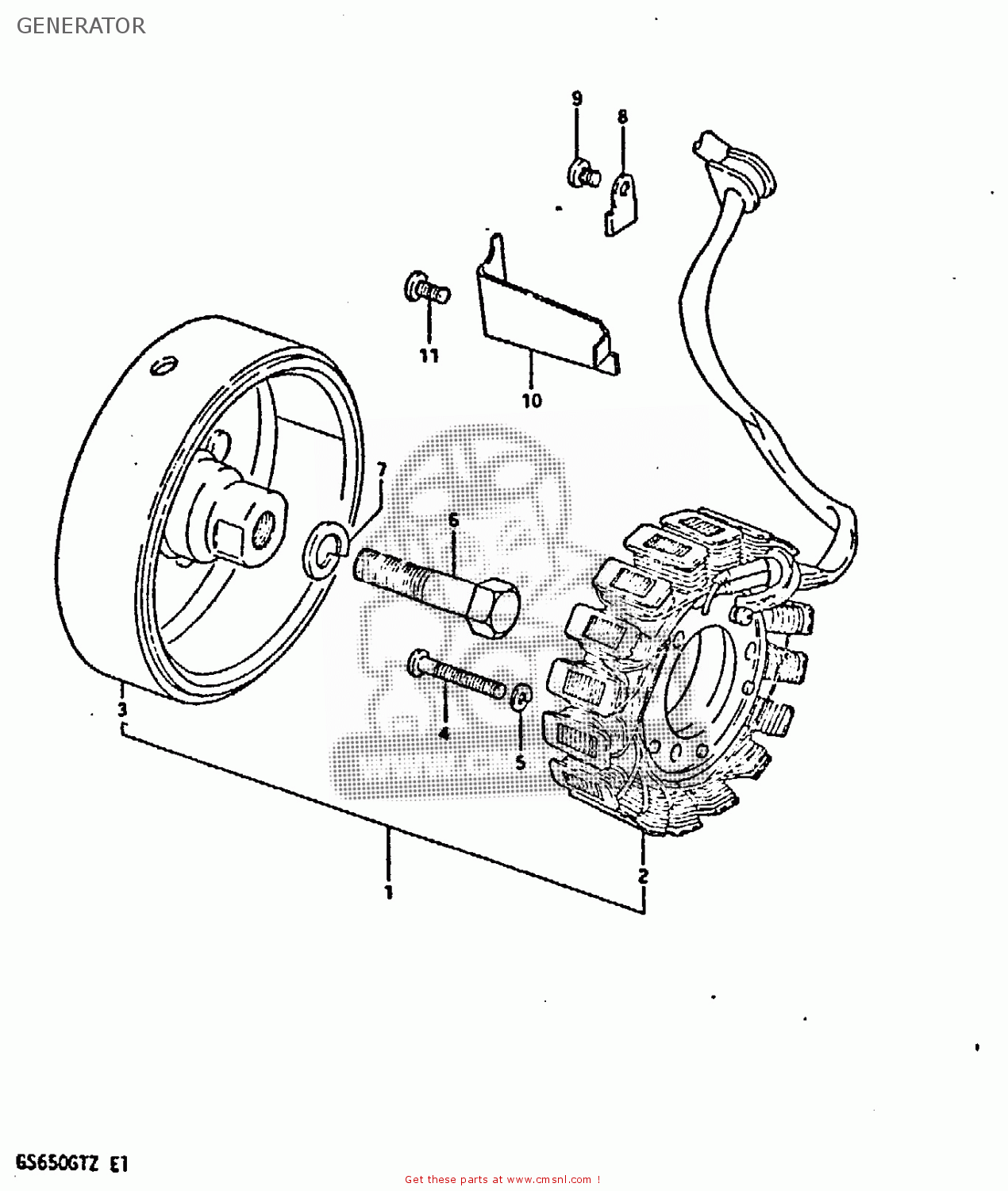

Generator diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

3140045110
ref: 1

GENERATOR ASSEMBLY

€ 341.00

3140145110
ref: 2

STATOR ASSEMBLY

€ 341.00

3140245110
ref: 3

ROTOR ASSEMBLY

€ 333.00

0211205308
ref: 4

SCREW

€ 1.50

0832121058
ref: 5

LOCK WASHER

€ 2.00

0110712458
ref: 6

BOLT 12X45

€ 5.50

0832131128
ref: 7

WASHER,LOCK 12

€ 2.50

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205068
ref: 9

SCREW

€ 4.00

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 11

SCREW

€ 1.50
