RIGHT HANDLE SWITCH

GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

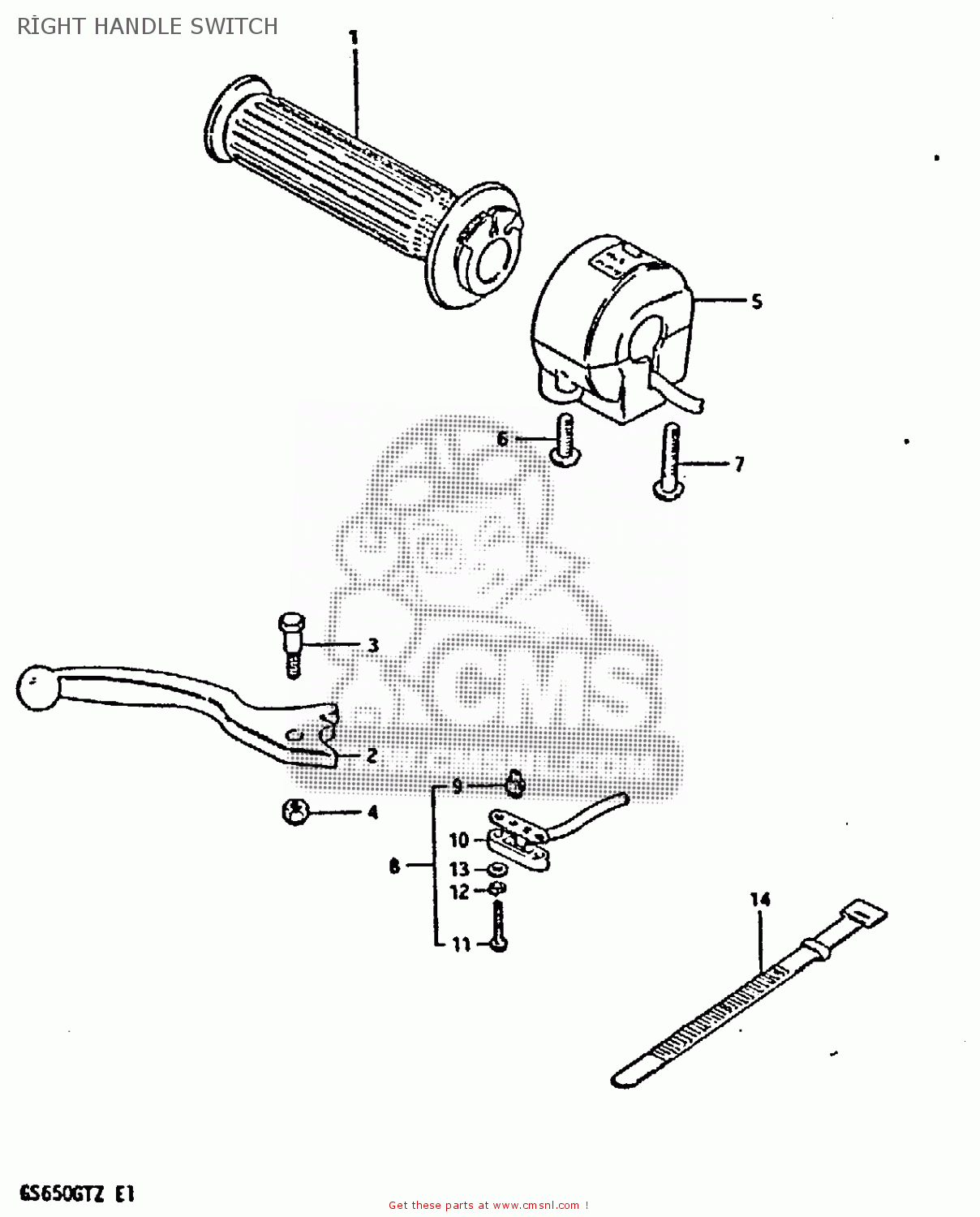

Right handle switch diagram GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

RIGHT HANDLE SWITCH GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

RIGHT HANDLE SWITCH GS650GT 1982 (Z) (E01 E02 E04 E15 E16 E17 E18 E21 22 24 25 26 34

prices are in EUR

ref

part #

description

quantity

1

5711044011
ref: 1

GRIP,THROTTLE

€ 33.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5-1

3720034210
ref: 5-1
MODEL X

SWITCH ASSY, HANDLE RH

€ 78.50

5-2

3720034211
ref: 5-2
MODEL Z

SWITCH ASSY, HANDLE RH (NEUTRAL HANDLE)

€ 78.50

5-3

3720034410
ref: 5-3
MODEL X

SWITCH ASSY, HANDLE LH

€ 108.50

5-4

3720034411
ref: 5-4
MODEL Z

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 108.50

6

0211205258
ref: 6

SCREW

€ 2.00

7

0211205358
ref: 7

SCREW

€ 1.50

8

NOTUSED
ref: 8

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

9

NOTUSED
ref: 9

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

10

NOTUSED
ref: 10

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

11

NOTUSED
ref: 11

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

12

NOTUSED
ref: 12

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

13

NOTUSED
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

14

0940712402
ref: 14

CLAMP(L:120)

€ 3.00
